# A student has a 15.0 V DC voltage source and wishes to dissipate 100.0 mW of...

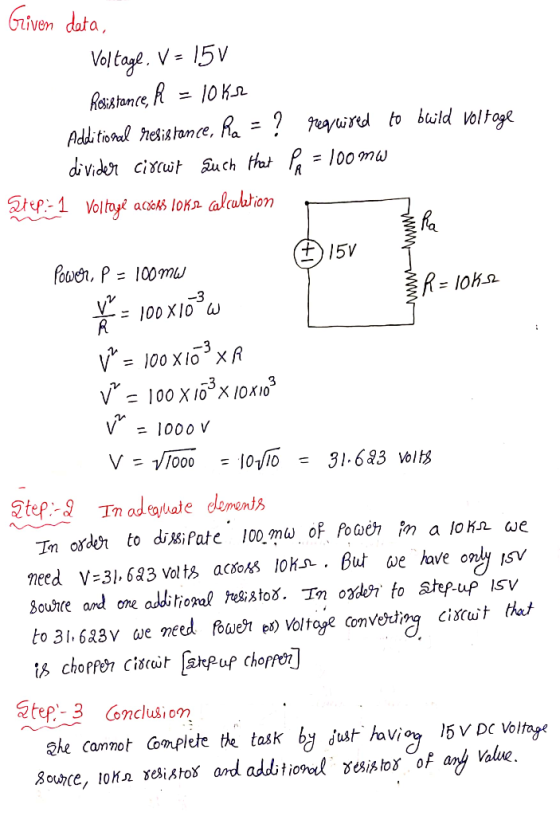

A student has a 15.0 V DC voltage source and wishes to dissipate 100.0 mW of power in a 10 kΩ resistor. What additional resistor is required to accomplish this task if she were to build a voltage divider circuit?
