In a double slit experiment where a 750 nm (nano-meter) radiation is used, the first maximum...
In a double slit experiment where a 750 nm (nano-meter) radiation
is used, the first maximum is observed to occur at
θ1 = 10° along an axis parallel to the
axis (line) joining the two slits . If the distance between these
two axes is L=2.0 m, find
(a) the distance separating the two slits, and
(b) the position y1max of the first maximum.

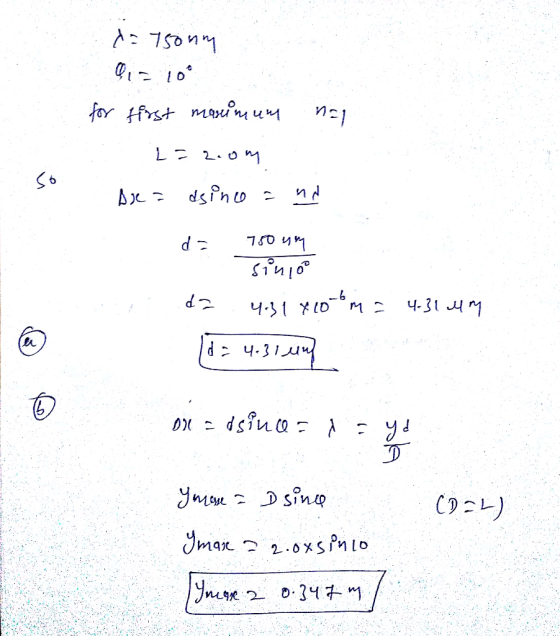

Homework Answers
Add Answer to:
In a double slit experiment where a 750 nm (nano-meter) radiation
is used, the first maximum...
4. An ideal double-slit slide is illuminated by laser light with a wavelength of 750 nm....
4. An ideal double-slit slide is illuminated by laser light with a wavelength of 750 nm. The slits are spaced 0.25 mm apart. The interference pattern is observed on a screen 2.0 m behind the slits. A. What is the bright fringe spacing on the screen? B. What is the smallest angle (with respect to the center of the screen) at which the light exiting the slide is perfectly destructive? C. What is the distance from the center of the...
Young's double - slit experiment is performed with 623 - nm light and a distance of...
Young's double - slit experiment is performed with 623 - nm light and a distance of 4.00 m between the slits and the screen. The tenth interference minimum is observed 10 mm from the central maximum. Determine the spacing of the slits.
Young's double-slit experiment is performed with 587-nm light and a distance of 2.00 m between the...
Young's double-slit experiment is performed with 587-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.48 mm from the central maximum. Determine the spacing of the slits.
Young's double-slit experiment is performed with 590-nm light and a distance of 2.00 m between the...
Young's double-slit experiment is performed with 590-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.48 mm from the central maximum. Determine the spacing of the slits.
Young's double-slit experiment is performed with 521-nm light and a distance of 2.00 m between the...
Young's double-slit experiment is performed with 521-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.80 mm from the central maximum. Determine the spacing of the slits. mm
In a Young's double-slit experiment, the distance from the central maximum on the screen to the...
In a Young's double-slit experiment, the distance from the central maximum on the screen to the first minimum is 2.0 mm. The slits are separated by d = 200?, where ? is the wavelength of the incident light. What is the distance D from slits to screen?
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a...
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a remote screen is 1.0 cm. What happens to the distance between adjacent maxima when the slit separation is doubled? A.) It decreases to 0.5 cm. B.) It increases to 4.0 cm. C.) It increases to 2.0 cm. D.) It decreases to 0.25 cm. E.) It remains the same. 2.) In a two-slit experiment, monochromatic coherent light of wavelength 500 nm passes through a pair...
In a double‑slit interference experiment, the wavelength is ?=662 nm , the slit separation is ?=0.110...
In a double‑slit interference experiment, the wavelength is ?=662 nm , the slit separation is ?=0.110 mm , and the screen is ?=50.0 cm away from the slits. What is the linear distance Δ? between the sixth order maximum and the fifth order maximum on the screen?
In a double‑slit interference experiment, the wavelength is ?=532 nm , the slit separation is ?=0.190...
In a double‑slit interference experiment, the wavelength is ?=532 nm , the slit separation is ?=0.190 mm , and the screen is ?=50.0 cm away from the slits. What is the linear distance Δ? between the seventh order maximum and the fifth order maximum on the screen?
In a double-slit interference experiment, the wavelength is a = 702 nm, the slit separation is...
In a double-slit interference experiment, the wavelength is a = 702 nm, the slit separation is d = 0.160 mm, and the screen is D = 32.0 cm away from the slits. What is the linear distance Ax between the eighth order maximum and the third order maximum on the screen? Ax = mm
4. An ideal double-slit slide is illuminated by laser light with a wavelength of 750 nm. The slits are spaced 0.25 mm apart. The interference pattern is observed on a screen 2.0 m behind the slits. A. What is the bright fringe spacing on the screen? B. What is the smallest angle (with respect to the center of the screen) at which the light exiting the slide is perfectly destructive? C. What is the distance from the center of the...
Young's double - slit experiment is performed with 623 - nm light and a distance of 4.00 m between the slits and the screen. The tenth interference minimum is observed 10 mm from the central maximum. Determine the spacing of the slits.
Young's double-slit experiment is performed with 587-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.48 mm from the central maximum. Determine the spacing of the slits.
Young's double-slit experiment is performed with 521-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.80 mm from the central maximum. Determine the spacing of the slits. mm
In a double-slit interference experiment, the wavelength is a = 702 nm, the slit separation is d = 0.160 mm, and the screen is D = 32.0 cm away from the slits. What is the linear distance Ax between the eighth order maximum and the third order maximum on the screen? Ax = mm
