A 1.35-V mercury cell with a capacity of 1.5 A h is used to power a...

Question

Question

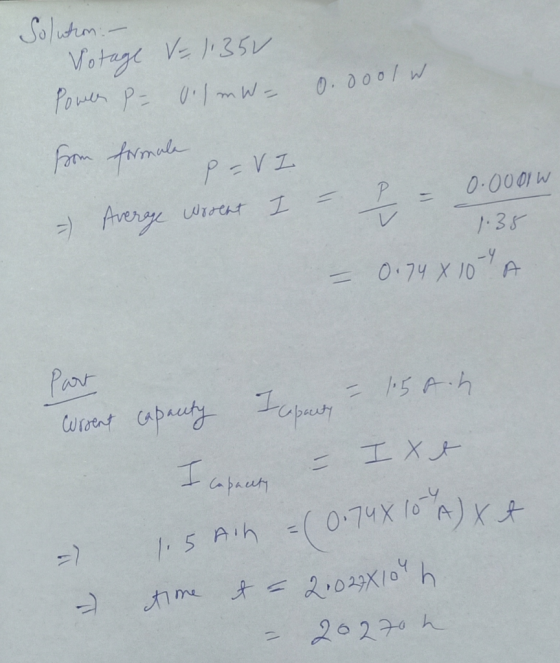

A 1.35-V mercury cell with a capacity of 1.5 A h is used to power a cardiac pacemaker.

(a) If the power required is 0.1 mW (1 mW = 1 milliwatt = 0.001 W), what is the average current?

(b) How long will the cell last?

science physics

Answer 1

Answer #1

Answer 2
