Parallel light rays with a wavelength of 650 nm fall on a single slit. On a...

Parallel light rays with a wavelength of 650 nm fall on a single slit. On a screen 3.10 m away, the distance between the first dark fringes on either side of the central maximum is 5.00 mm .

What is the width of the slit?

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

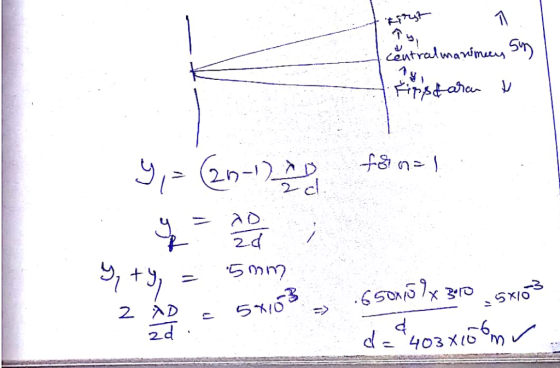

Width of slit=403*10^-6m

Add a comment

Answer 2

Similar Homework Help Questions

Parallel light rays with a wavelength of 650 nm fall on a single slit. On a...

Parallel light rays with a wavelength of 650 nm fall on a single slit. On a screen 2.90 m away, the distance between the first dark fringes on either side of the central maximum is 4.00 mm . What is the width of the slit?
Parallel rays of green mercury light with a wavelength of 546 nm pass through a slit...

Parallel rays of green mercury light with a wavelength of 546 nm pass through a slit with a width of 0.437 mm. What is the distance from the central maximum to the first minimum on a screen 1.75 m away from the slit?
A beam of light of wavelength 600 nm from a distant source falls on a single...

A beam of light of wavelength 600 nm from a distant source falls on a single slit 1.00 mm wide and resulting diffraction pattern is observed on a screen 2 m away. The distance between the first dark fringes on either side of the central bright fringe is 1.2 cm 1.2 mm 6x10-4 m 2.4 mm

Light of wavelength 1 = 554 nm passes through a single slit of width w =...

Light of wavelength 1 = 554 nm passes through a single slit of width w = 2.6 um and illuminates a screen L = 1.5 m away. (a) What is the maximum number of dark fringes nfringes of light could this setup produce on the screen? (b) What is the width y, in meters of the bright central maximum on the screen?
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm...

Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm wide. The diffraction pattern is observed on a screen 3.10 m away. Define the width of a bright fringe as the distance between the minima on either side. What is the width of the central bright fringe?(m) What is the width of the first bright fringe on either side of the central one?
Light of wavelength 450 nm falls on a 0.47 mm wide slit and forms a diffraction...

Light of wavelength 450 nm falls on a 0.47 mm wide slit and forms a diffraction pattern on a screen 1.7 m away. (a) Find the position of the first dark band on each side of the central maximum. mm (b) Find the width of the central maximum. mm

Parallel rays of monochromatic light with wavelength 586 nm illuminate two identical slits

Parallel rays of monochromatic light with wavelength 586 nm illuminate two identical slits and produce an interference pattern on a screen that is 750 em from the slits. The centers of the sits are 0.640 mm apart and the width of each slit is 0.434 mm.Part A If the intensity at the center of the central maximum is 5.00*10-4 W/m what is the intensity at a point on the screen that is 0.770 mm from the center of the central maximum?
Light of wavelength 700 nm falls on a 0.44 mm wide slit and forms a diffraction...

Light of wavelength 700 nm falls on a 0.44 mm wide slit and forms a diffraction pattern on a screen 1.2 m wway. (a) Find the position of the first dark band on each side of the central maximum. mm (b) Find the width of the central maximum. 3. [-/10 Points] DETAILS SERCP7 24.P.031. MY NOTES PRACTICE ANOTHER Light of wavelength 587.9 nm illuminates a siit, of width 0.74 mm. (a) At what distance from the slit should a screen...
Light with a wavelength of λ = 674 nm. is incident on a single slit of...

Light with a wavelength of λ = 674 nm. is incident on a single slit of width w = 1.5 micrometers. A screen is located L = 0.95 m behind the slit and an interference pattern has formed on it. What is the distance between the central bright spot and the first dark fringe, D, in meters?

Questions 1. In a single slit experiment, the distance between two dark fringes of the second...

Questions 1. In a single slit experiment, the distance between two dark fringes of the second order is 10 cm on a screen which is 1.5 m away. If the wavelength of the light is 650 nm, find the width of the slit A laser light of A- 633nm shines on a wire and diffraction pattern is found on a screen 1 m away. The distance between the first two bright fringes is 8 cm. Find the diameter on the...
