The following data was collected from a standard 12.827 mm diameter tensile test specimen of a...
The following data was collected from a standard 12.827 mm diameter tensile test specimen of a copper alloy with a gauge length of 50. 80mm. An initial cross head speed of 8.5mm/minute was used. After fracture, the gauge length was 76.556mm and the diameter was 9.5mm.
| Load (kN) | Gauge Length (mm) |
| 0 | 50.8 |
| 13.44 | 50.842 |
| 26.88 | 50.885 |
| 33.60 | 50.906 |
| 40.32 | 51.029 |
| 47.04 | 51.816 |
| 53.76 | 57.404 |
| 55.55 | 63.500 |
| 51.07 (fracture) | 76.708 |

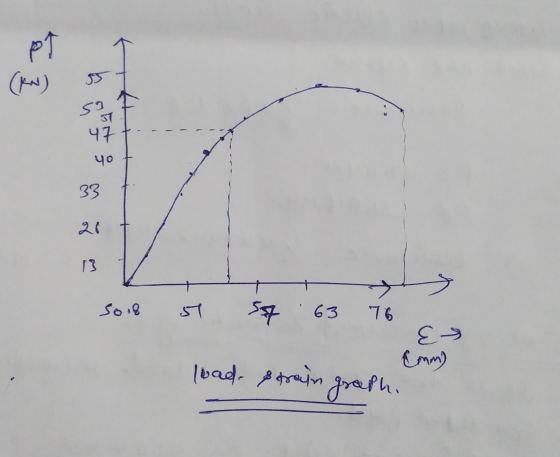

Use the given data to plot a graph and:
(a) Determine the initial engineering strain rate .
(b) Suppose that the offset yield strength of this material is determined to be 340MPa , what offset yield criterion was used to measure it? Explain how you got your answer.
(c) Estimate the stored elastic strain energy or resilience of the sample.
(d) Estimate the energy consumed in fracturing the sample in MJ/m3

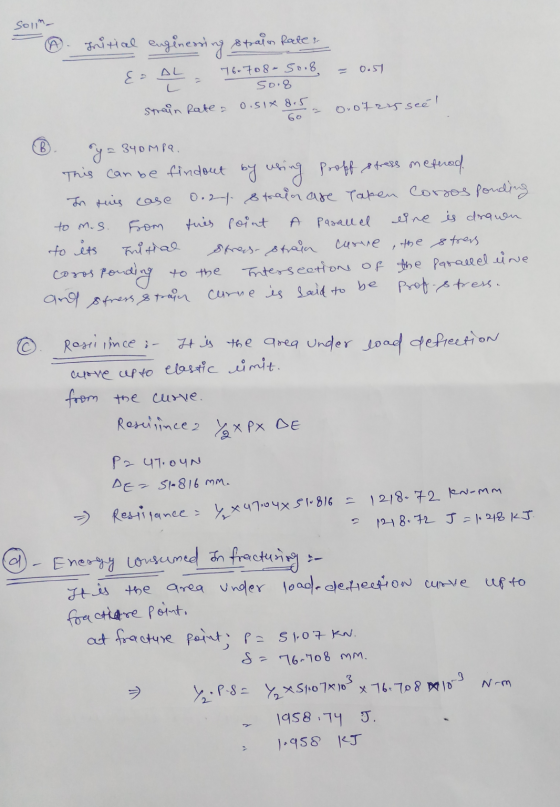

Homework Answers
Add Answer to:
The following data was collected from a standard 12.827 mm
diameter tensile test specimen of a...
The following data was collected from a standard 12.827 mm diameter tensile test specimen of a...
The following data was collected from a standard 12.827 mm diameter tensile test specimen of a copper alloy with a gauge length of 50. 80mm. An initial cross head speed of 8.5mm/minute was used. After fracture, the gauge length was 76.556mm and the diameter was 9.5mm. Load (kN) Gauge Length (mm) 0 50.8 13.44 50.842 26.88 50.885 33.60 50.906 40.32 51.029 47.04 51.816 53.76 57.404 55.55 63.500 51.07 (fracture) 76.708 Use the given data to plot a graph and: (a)...
