The following data was collected from a standard 12.827 mm diameter tensile test specimen of a copper alloy with a gauge length of 50. 80mm. An initial cross head speed of 8.5mm/minute was used. After fracture, the gauge length was 76.556mm and the diameter was 9.5mm.
| Load (kN) | Gauge Length (mm) |
| 0 | 50.8 |
| 13.44 | 50.842 |
| 26.88 | 50.885 |
| 33.60 | 50.906 |
| 40.32 | 51.029 |
| 47.04 | 51.816 |
| 53.76 | 57.404 |
| 55.55 | 63.500 |
| 51.07 (fracture) | 76.708 |

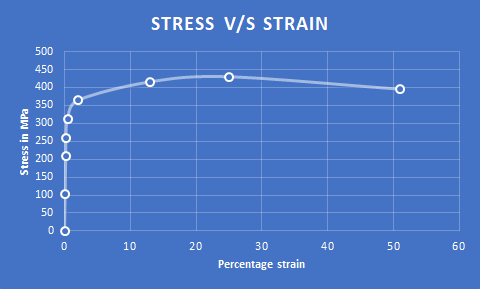

Use the given data to plot a graph and:
(a) Determine the ductility in percent elongation .
(b) Determine the ductility in percent area reduction.
(c) Estimate the engineering stress and strain at fracture.
(d) Estimate the true stress and true strain at fracture.

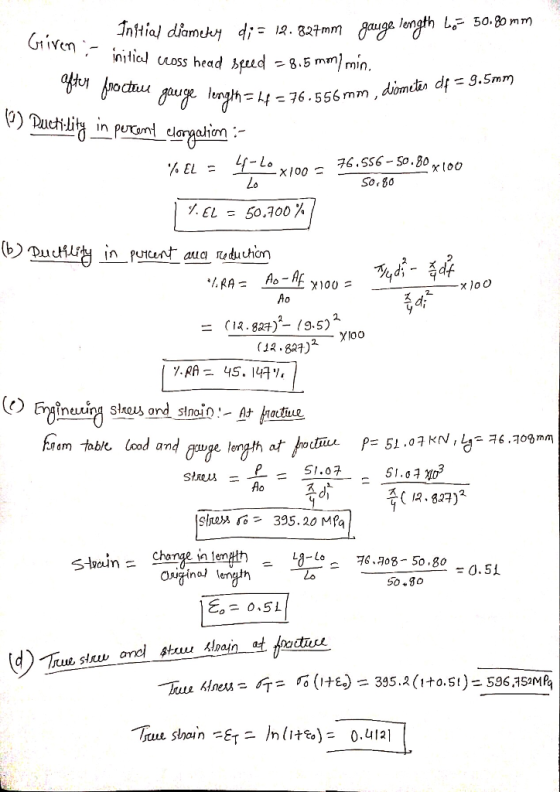

In this question we have to find ductility , engineering and true stress and strain at fracture from given data


The following data was collected from a standard 12.827 mm diameter tensile test specimen of a...
The following data was collected from a standard 12.827 mm diameter tensile test specimen of a copper alloy with a gauge length of 50. 80mm. An initial cross head speed of 8.5mm/minute was used. After fracture, the gauge length was 76.556mm and the diameter was 9.5mm. Load (kN) Gauge Length (mm) 0 50.8 13.44 50.842 26.88 50.885 33.60 50.906 40.32 51.029 47.04 51.816 53.76 57.404 55.55 63.500 51.07 (fracture) 76.708 Use the given data to plot a graph and: (a)...
The following data was collected from a standard 12.827 mm diameter tensile test specimen of a copper alloy with a gauge length of 50. 80mm. An initial cross head speed of 8.5mm/minute was used. After fracture, the gauge length was 76.556mm and the diameter was 9.5mm. Load (kN) Gauge Length (mm) 0 50.8 13.44 50.842 26.88 50.885 33.60 50.906 40.32 51.029 47.04 51.816 53.76 57.404 55.55 63.500 51.07 (fracture) 76.708 Use the given data to plot a graph and: (a)...
2. (70 pts) A cylindrical specimen of an alloy having a diameter of 12.8 mm and a gauge length of 50.800 mm is pulled in tension. The load-length data are recorded during the test and are tabulated below. After fracture, the diameter of the specimen near the fracture point was 9.5 mm. Load (N) 7,330 15,100 23,100 30,400 34,400 38,400 41,300 44.800 46,200 47,300 47,500 46,100 44,800 42,600 36,400 Length (mm) 50.800 50.851 50.902 50.952 51.003 51.054 51.308 51.816 52.832...
5. A cylindrical specimen of aluminum having a diameter of 12.8 mm and a gauge length of 50.800 mm is pulled in tension. Use the load-elongation characteristics tabulated below to complete parts (a) through (f). Use SI unit system. Load Length 0 7330 15,100 23,100 30,400 34,400 38,400 41,300 44,800 46,200 47,300 47,500 46,100 44,800 42,600 36,400 lb 0 1650 3,400 5,200 6,850 7,750 8,650 9,300 10,100 10,400 10,650 10,700 10,400 10,100 9,600 mim 50.800 50.851 50.902 50.952 51.003 51.054...
It is desired to evaluate the tensile properties of an aluminum alloy. A tensile test is performed using a standard cylindrical tensile specimen with a diameter of 12.8 mm and a gauge length of 50.800 mm. The gage length and final diameter of the sample are measured after the sample is removed from the testing machine. The gage length and the diameter of the necked region after the specimen was removed from the testing machine are 60 mm and 9...
(c) Acylindrical specimen of stainless steel having a diameter of 12.8 mm and a gauge length of 50.800 mm is pulled in tension. The data acquired was used to plot engineering stress versus engineering strain as shown in the following two graphs (please note that fig. b is a blown-up clastic portion of (a)). Use the o-curves to complete parts through (vi) Stress (MP) 0.00 0.02 0.04 0.06 0.08 0.10 Strain Fig (a). - curve of stainless steel Stress (MPa)...
Assignment 01 TOT Mechanical Properties of Materials 1. A tensile test specimen has a gage length = 50 mm and its cross-sectional area = 100 mm. The specimen yields at 48,000 N, and the corresponding gage length - 50.23 mm. This is the 0.2 ent yield point. The maximum load of 87,000 N is reached at a gage length 64.2 mm. Determine (a) yield strength, (b) modulus of elasticity, and (c) tensile strength. (d) If fracture occurs at a gage...
The following data were collected from a 11.48 mm diameter test specimen of magnesium. After fracture, the gage length is 32.22 mm. Plot the data and calculate the percent strain at failure. Gage Length (mm) Load (N) 30.0000 0 30.0296 5000 30.0592 10000 30.0888 15000 30.15 20000 30.51 25000 30.90 26500 31.50 27000 32.10 26500 32.50 (fracture) 25000
2) Using the stress-strain curve for a steel alloy shown in the following figure answer the following questions: 600 500 400 500 400 300 300 200 200 100 100 0.000 0.002 0.006 0.004 Strain 0.00 0,04 0.08 0.12 0.16 0.20 Using the same steel alloy, consider a cylindrical specimen 15 mm in diameter pulled in tension, if a load of 85,000 N is applied: h) Calculate the approximate ductility in percent elongation, (consider the final elongation as the elongation at...
A Grade 2 Titanium tension test specimen has a diameter of 12.60 mm and a gage length of 50 mm. In a test to fracture, load and deformation data obtained during the test are given in the accompanying table. Plot the stress strain relationship then, determine the following: (a) the modulus of elasticity. (b) the proportional limit. (c) the yield strength (0.20% offset). (d) the ultimate strength. (e) the fracture stress. (f) the true fracture stress if the final diameter...
