An RLC circuit consists of a 4.07 Henry inductor, a 28.3 microfarad capacitor, a 662 Ohm...

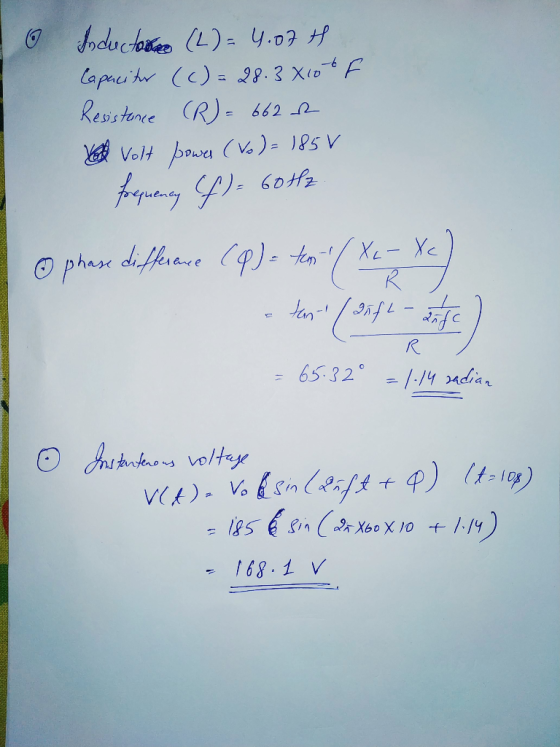

An RLC circuit consists of a 4.07 Henry inductor, a 28.3 microfarad capacitor, a 662 Ohm resistor, and a 185 Volt power supply operating at 60 Hz. Determine the instantaneous voltage produced by this power supply 10.0 seconds after it is turned on. Assume that the current is equal to zero at t = 0.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An RLC circuit consists of a 4.07 Henry inductor, a 28.3 microfarad capacitor, a 662 Ohm...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an...

    An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor and...

  • An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an...

    An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor and...

  • 2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by...

    2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor...

  • 2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by...

    2) An RLC series circuit with 150-ohm resistor, 25-mH inductor, and 2 microfarad-capacitor is powered by an AC voltage source with a peak voltage of 340V and a frequency of 660 Hz. (a) Find the peak current that flows in the circuit. (b) Determine the phase angle of the source voltage relative to the current. (c) Determine the peak voltage across the resistor and its phase angle relative to the voltage source. (d) Find the peak voltage across the inductor...

  • An RLC circuit consists of a 324 Ohm resistor, a 8 milli-henrie inductor, and a capacitor...

    An RLC circuit consists of a 324 Ohm resistor, a 8 milli-henrie inductor, and a capacitor connected in series to an AC voltage source. At a frequency of 53 kilo-hertz, the phase angle is +79 degrees. What is the resonant frequency of the circuit in kilo-hertz?

  • An RLC circuit consists of a 379 Ohm resistor, a 5 milli-henrie inductor, and a capacitor...

    An RLC circuit consists of a 379 Ohm resistor, a 5 milli-henrie inductor, and a capacitor connected in series to an AC voltage source. At a frequency of 53 kilo-hertz, the phase angle is +62 degrees. What is the resonant frequency of the circuit in kilo-hertz?

  • An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected...

    An RLC circuit consists of a 150-Ω resistor, a 21.0-μF capacitor, and a 390-mH inductor connected in series with a 120-V, 60.0-Hz power supply. (a) What is the phase angle between the current and the applied voltage? _____ ° (b) Which reaches its maximum earlier, the current or the voltage? current or voltage?

  • What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give...

    What capacitor in series with a 100 Ohm resistor and a 20.0 mH inductor will give a resonance frequency of 800 Hz? A series RLC circuit consists of a 99.0 Ohm resistor, a 0.130 H inductor, and a 20.0 muF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I? The tuning circuit in an FM radio receiver is a series RLC circuit with a 0.2000 muH inductor. The receiver is tuned to...

  • A series RLC circuit consists of a 280 ohm resistor, a 25 mH inductor, and a...

    A series RLC circuit consists of a 280 ohm resistor, a 25 mH inductor, and a 18 mu F capacitor. What is the rms current if the emf is supplied by a standard 120V, 60 Hz wall outlet? Express your answer to two significant figures and include the appropriate units.

  • An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to...

    An RLC circuit consists of a resistor, a inductor, and a capacitor connected in series to an AC voltage source with an RMS voltage of 75 volts. At half the resonant frequency, the phase angle is -37 degrees and the inductive reactance is 49 Ohms. What is the average dissipated power at twice the resonant frequency in Watts?
