In a Hall-effect experiment, a current of 2.2 A sent lengthwise through a conductor 1.1 cm...
In a Hall-effect experiment, a current of 2.2 A sent lengthwise through a conductor 1.1 cm wide, 4.4cm long, and 8μm thick produces a transverse (across the width) Hall voltage of 9.4 μV when a magnetic field of 1.7 T is passed perpendicularly through the thickness of the conductor. From these data, find the drift velocity of the charge carriers.
| Tries 0/20 |
Find the number density of charge carriers. ( m-3)
| Tries 0/20 |

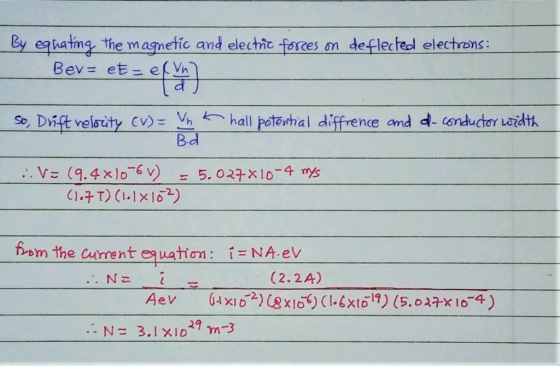

Homework Answers
Alright Dude, If that worked
for you... dont forget to give THUMBS UP.(that will work for
me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.
Add Answer to:
In a Hall-effect experiment, a current of 2.2 A sent
lengthwise through a conductor 1.1 cm...
(8c28p70) In a Hall-effect experiment, a current of 3.1 A sent lengthwise through a conductor 1.1...
(8c28p70) In a Hall-effect experiment, a current of 3.1 A sent lengthwise through a conductor 1.1 cm wide, 3.6 cm long, and 12μm thick produces a transverse (across the width) Hall voltage of 8.2 μV when a magnetic field of 1.5 T is passed perpendicularly through the thickness of the conductor. From these data, find the drift velocity of the charge carriers. 4.97×10-4 m/s You are correct. Your receipt no. is 158-6556 Help: Receipt Previous Tries Find the number density...
A metal strip 2.50 cm wide and 1.80 cm thick carries a current of 25.9 A...
A metal strip 2.50 cm wide and 1.80 cm thick carries a current of 25.9 A in a region containing a perpendicular uniform magnetic field of strength 1.65 T. The Hall voltage across the 2.50 cm width of the strip is measured to be 4.36 μV. Calculate the drift speed of the electrons in the strip. Find the number density of the charge carriers in the strip (in m-3).
A thin metal film of length 2.20 cm, width of 0.550 cm, and thickness of 34.0...
A thin metal film of length 2.20 cm, width of 0.550 cm, and thickness of 34.0 micrometers is used to measure the Hall effect. A current of 1.80 A is maintained along the length of the sample. The Hall voltage of 17.0 microVolts is detected across its width, when a magnetic field of 1.50 Tesla is applied normal to the film. 1. Calculate the drift velocity of the charge carriers. 2. Assuming the charge carriers are electrons, calculate their density....
