A nuclear power plant draws 3.0×106 L/min of cooling water from the ocean. If the water...

A nuclear power plant draws 3.0×106 L/min of cooling water from the ocean.

If the water is drawn in through two parallel, 3.1-m-diameter pipes, what is the water speed in each pipe?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

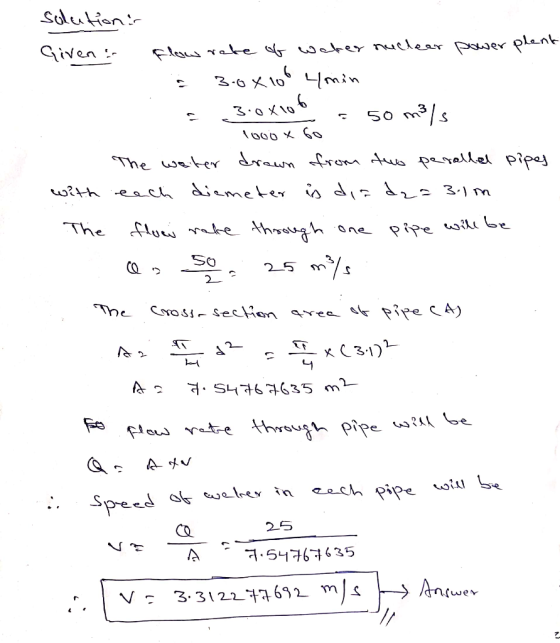

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A nuclear power plant draws 3.0×106 L/min of cooling water from the ocean. If the water...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • At an ocean-side nuclear power plant, seawater is used as part of the cooling system. This...

    At an ocean-side nuclear power plant, seawater is used as part of the cooling system. This raises the temperature of the water that is discharged back into the ocean. The amount that the water temperature is raised has a uniform distribution over the interval from 10 to 25�C. (a) What is the probability that the temperature increase will be (1) less than 20 degrees C? (2) between 20 and 22C?(b) Suppose that a temperature increase of more than 18 degrees...

  • Design the condenser of a steam power plant that has a thermal efficiency of 40 percent...

    Design the condenser of a steam power plant that has a thermal efficiency of 40 percent and generates 10 MW of net electric power. Steam enters the condenser as saturated vapor at 10 kPa, and it is to be condensed outside horizontal tubes through which cooling water from a nearby river flows. The temperature rise of the cooling water is limited to 8°C, and the velocity of the cooling water in the pipes is limited to 6 m/s to keep...

  • A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump...

    A centrifugal pump test yields the following data: Pump Head Flow (m)(L/min) 30 25 20 40 The pump curve can be approximated by a parabola. This pump draws water from a large reservoir. The discharge of the pump feeds 150 m of 1.5 cm inside diameter pipe and then 225 m of 3 cm inside diameter pipe.. The two pipes both have a roughness of 0.5 mm The 3 cm pipe discharges to atmosphere a distance 40 m below the...

  • 30% of the energy produced from a nuclear power plant is converted to 1000 MW of...

    30% of the energy produced from a nuclear power plant is converted to 1000 MW of electrical energy. The remaining 70% of the energy from this plant is converted to heat waste. 20% of the heat waste is released out of the smokestack. 80% of the heat waste is taken away by cooling water that is drawn from a nearby river. Specific heat of water = 4.184 kJ/kgºC a) How much of the heat waste is taken away by the...

  • A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's...

    A nuclear power plant generates 3000 MW of heat energy from nuclear reactions in the reactor's core. This energy is used to boil water and produce high-pressure steam at 320 ∘C. The steam spins a turbine, which produces 1000 MW of electric power, then the steam is condensed and the water is cooled to 25∘C before starting the cycle again. Part A: What is the maximum possible thermal efficiency of the power plant? Part B: Cooling water from a river...

  • In an industrial cooling process, water is circulated through a system. If water is pumped with...

    In an industrial cooling process, water is circulated through a system. If water is pumped with a speed of 5.00 m/s under a pressure of 5.50 × 10 5 Pa from the first floor through a 3.50-cm diameter pipe, what will be the pressure on the next floor 3.80 m above in a pipe with a diameter of 2.70 cm?

  • The maximum energy conversion efficiency of a nuclear power plant depends on the temperature of the...

    The maximum energy conversion efficiency of a nuclear power plant depends on the temperature of the water used for cooling. What is the difference in maximum efficiency between two identical plants, where one has cooling water available at 8oC and the second has cooling water available at 20oC? The temperature of the steam in each case is 295oC.

  • An evaporative cooling tower removes 1 x 106 Btu/hr of heat from the cooling water from...

    An evaporative cooling tower removes 1 x 106 Btu/hr of heat from the cooling water from a condenser of a steam power plant. The temperature of the water is reduced from 120 °F to 110 °F. Air enters the cooling tower at 91 °F and 60% relative humidity and air leaves at 100 °F and 82% relative humidity. The quantity of make-up water is:

  • The water flowing through a 2.0 cm (inside diameter) pipe flows out through three 1.4 cm...

    The water flowing through a 2.0 cm (inside diameter) pipe flows out through three 1.4 cm pipes. (a) If the flow rates in the three smaller pipes are 25, 19, and 12 L/min, what is the flow rate in the 2.0 cm pipe? (b) What is the ratio of the speed of water in the 2.0 cm pipe to that in the pipe carrying 25 L/min?

  • The water flowing through a 1.9 cm (inside diameter) pipe flows out through three 1.1 cm...

    The water flowing through a 1.9 cm (inside diameter) pipe flows out through three 1.1 cm pipes. (a) If the flow rates in the three smaller pipes are 27, 16, and 12 L/min, what is the flow rate in the 1.9 cm pipe? (b) What is the ratio of the speed of water in the 1.9 cm pipe to that in the pipe carrying 27 L/min?
