You measure a 22.0 -V potential difference across a 77.0-Ω resistor. What is the current (in...
You measure a 22.0 -V potential difference across a 77.0-Ω resistor. What is the current (in Amperes) flowing through it?

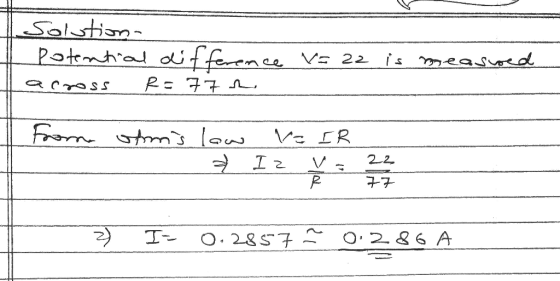

Homework Answers
If you have any doubt please write in the comment box or else Please like thank you
Add Answer to:
You measure a 22.0 -V potential difference across a 77.0-Ω
resistor. What is the current (in...
For the circuit shown in the figure, find the current through and the potential difference across each resistor.
For the circuit shown in the figure, find the current through
and the potential difference across each resistor.What is the current through the 3 Ω resistor?What is the current through the 4 Ω resistor? What is the potential difference across the 3 Ω resistor.What is the potential difference across the 4 Ω resistor?What is the potential difference across the 48 Ω resistor?What is the current through the 48 Ω resistor?What is the potential difference
across the 16 Ω resistor?What is the...
A potential difference of 27.0 V is measured across a 4.50 ✕ 103 Ω resistor. 9....
A potential difference of 27.0 V is measured across a 4.50 ✕
103 Ω resistor.
9. [-/10 Points] DETAILS SERCP10 21.WU.002. A potential difference of 27.0 Vis measured across a 4.50 x 1032 resistor. (a) Determine the current through the resistor. A (b) Determine the power dissipated by the resistor. w
When you connect an unknown resistor across the terminals of a 1.50 V AAA battery having negligible internal resistance
When you connect an unknown resistor across the terminals of a 1.50 V AAA battery having negligible internal resistance, you measure a current of 17.2 mA flowing through it. What is the resistance of this resistor? If you now place the resistor across the terminals of a 12.4 V car battery having no internal resistance, how much current will flow? You now put the resistor across the terminals of an unknown battery of negligible internal resistance and measure a current of \(0.451\) A...
Find current and potential difference across each resistor
a.) Find the current through resistor a) in the figure.b.) Find the potential difference across resistor a) in the figure.c.) Find the current through resistor b) in the figure.d.) Find the potential difference across resistor b) in the figure.e.) Find the current through resistor c) in the figure.f.) Find the potential difference across resistor c) in the figure.g.) Find the current through resistor d) in the figure.h.) Find the potential difference across resistor d) in the figure.I can tell that...
1. a. What is the resistance of the circuit? (Ω/OHM) b. What is the magnitude of the potential across resistor R3? (V) c. What is the magnitude of the current in resistor R3? (A) d. What is the mag...
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
A power supply maintains a potential difference of 67 .9 V across a 1850 Ω resistor....
A power supply maintains a potential difference of 67 .9 V across a 1850 Ω resistor. current: The four resistors in the figure have an equivalent resistance of 18 Ω. The resistances are as follows: R1 10 Ω. Rs = 6.0 Ω, and R3 4.0Ω. Calculate the value of Rx. R2
3 What is the magnitude of the potential difference across the 20-Ω resistor? 10Ω 20 Ω...
3 What is the magnitude of the potential difference across the 20-Ω resistor? 10Ω 20 Ω 10Ω 5.0 Ω 10Ω 4. Assume all the lightening in the world represents a constant current of lkA across a 250kV potential. What is the global lightening power? P = IV = 1000A * 250,000V = 250MW The circuit below contains four equivalent 502light bulbs across a voltage source V-100V. 5, 6. a. b. c. Rank the light bulbs from dimmest to brightest (least...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2...
Find the potential difference
across each resistor in the figure below. (R1 =
5.30 Ω, R2 = 4.40 Ω, R3 =
2.60 Ω, R4 = 1.80 Ω)
12. -6.66 points SerPSE9 28.P.035.MI.FB My Notes Ask Your Teacher Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2 = 4.40 Ω, R3 2.60 Ω, R-1.80 Ω) 12.0 V 3.00 V18.0 V R, R3 Need Help? LMastern
For each circuit shown in the figure, find the current through and potential difference across each...
For each circuit shown in the figure, find the current through
and potential difference across each resistor
Thank you!
4Ω 6Ω 24 V 24 Ω 812 24 Ω
For the circuit shown in the figure, find the current through
and the potential difference across each resistor.What is the current through the 3 Ω resistor?What is the current through the 4 Ω resistor? What is the potential difference across the 3 Ω resistor.What is the potential difference across the 4 Ω resistor?What is the potential difference across the 48 Ω resistor?What is the current through the 48 Ω resistor?What is the potential difference
across the 16 Ω resistor?What is the...
A potential difference of 27.0 V is measured across a 4.50 ✕
103 Ω resistor.
9. [-/10 Points] DETAILS SERCP10 21.WU.002. A potential difference of 27.0 Vis measured across a 4.50 x 1032 resistor. (a) Determine the current through the resistor. A (b) Determine the power dissipated by the resistor. w
When you connect an unknown resistor across the terminals of a 1.50 V AAA battery having negligible internal resistance, you measure a current of 17.2 mA flowing through it. What is the resistance of this resistor? If you now place the resistor across the terminals of a 12.4 V car battery having no internal resistance, how much current will flow? You now put the resistor across the terminals of an unknown battery of negligible internal resistance and measure a current of \(0.451\) A...
1.
a. What is the resistance of the circuit? (Ω/OHM)
b. What is the magnitude of the potential across resistor
R3? (V)
c. What is the magnitude of the current in resistor R3?
(A)
d. What is the magnitude of the potential across resistor
R1? (V)
e. What is the magnitude of the potential across resistor
R2? (V)
f. What is the magnitude of the current through resistor
R1? (A)
g. What is the magnitude of the current through resistor...
A power supply maintains a potential difference of 67 .9 V across a 1850 Ω resistor. current: The four resistors in the figure have an equivalent resistance of 18 Ω. The resistances are as follows: R1 10 Ω. Rs = 6.0 Ω, and R3 4.0Ω. Calculate the value of Rx. R2
3 What is the magnitude of the potential difference across the 20-Ω resistor? 10Ω 20 Ω 10Ω 5.0 Ω 10Ω 4. Assume all the lightening in the world represents a constant current of lkA across a 250kV potential. What is the global lightening power? P = IV = 1000A * 250,000V = 250MW The circuit below contains four equivalent 502light bulbs across a voltage source V-100V. 5, 6. a. b. c. Rank the light bulbs from dimmest to brightest (least...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Find the potential difference
across each resistor in the figure below. (R1 =
5.30 Ω, R2 = 4.40 Ω, R3 =
2.60 Ω, R4 = 1.80 Ω)
12. -6.66 points SerPSE9 28.P.035.MI.FB My Notes Ask Your Teacher Find the potential difference across each resistor in the figure below. (R1 = 5.30 Ω, R2 = 4.40 Ω, R3 2.60 Ω, R-1.80 Ω) 12.0 V 3.00 V18.0 V R, R3 Need Help? LMastern
For each circuit shown in the figure, find the current through
and potential difference across each resistor
Thank you!
4Ω 6Ω 24 V 24 Ω 812 24 Ω
