Problem #5 A communications cable is 2.00 km long and consists of two parallel wires separated...

Problem #5

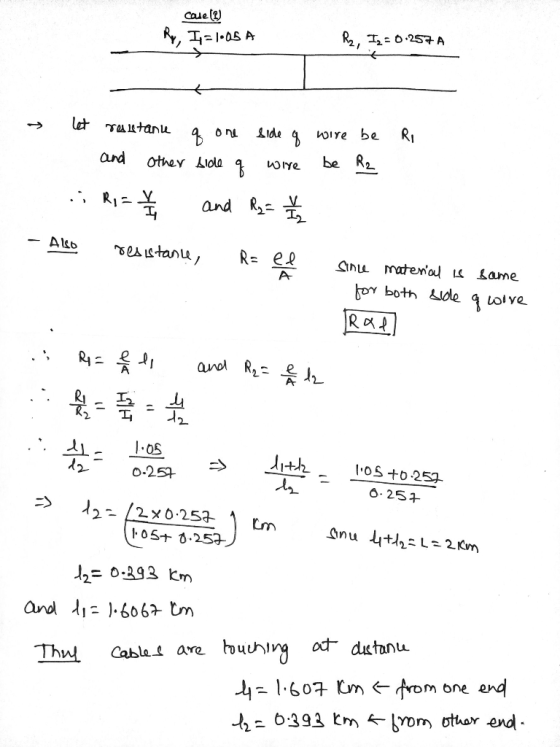

A communications cable is 2.00 km long and consists of two parallel wires separated by an insulator. At some point in the wire, the insulation has been crushed and the 2 wires are able to touch. You have the job of finding where the break is in the insulation occurs. You go to one end of the line and connect a 9.00 V battery to one wire, and the other terminal of the battery to one terminal of an ammeter. When the other terminal of the ammeter is connected to the other wire, the ammeter shows the current is 1.05 A. You then disconnect everything and repeat the process at the other end of the cable, where you find a current of .257 A. Where in the cable are the wires touching?
