You place a 22-cm focal length convex lens at a distance of 50 cm in front...

You place a 22-cm focal length convex lens at a distance of 50 cm in front of a concave lens with a focal length of -42 cm. Then you place a small lightbulb (2 cm tall) 27 cm in front of the convex lens. Determine the distance from the second lens to the final image.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

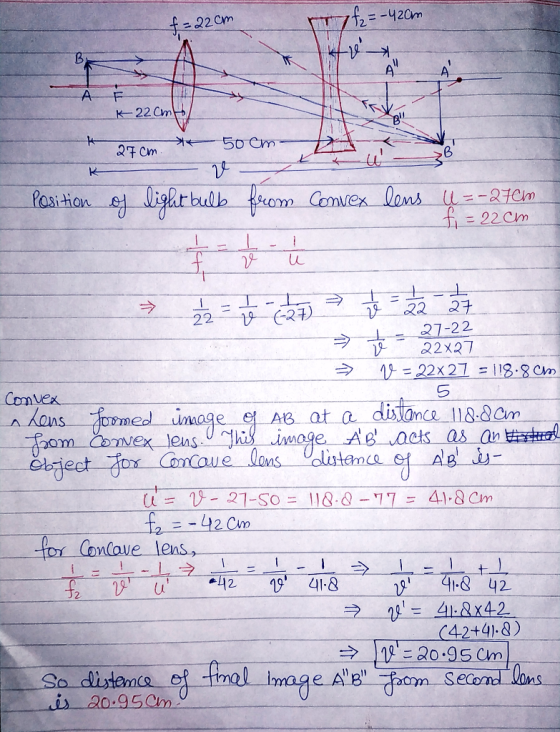

Answer #1

Note:-In calculation of final image focal length of concave lens is taken as positive because for concave lens image is placed to its right side and rays are comming from right side to left side.

0 0
