A resistance R and a 0.5H inductance are in series across a 57Hz ac voltage. The...
A resistance R and a 0.5H inductance are in series across a 57Hz ac voltage. The voltage across the resistor is 27V and the voltage across the inductor is 53V. What is the voltage across the power supply? Please show work.

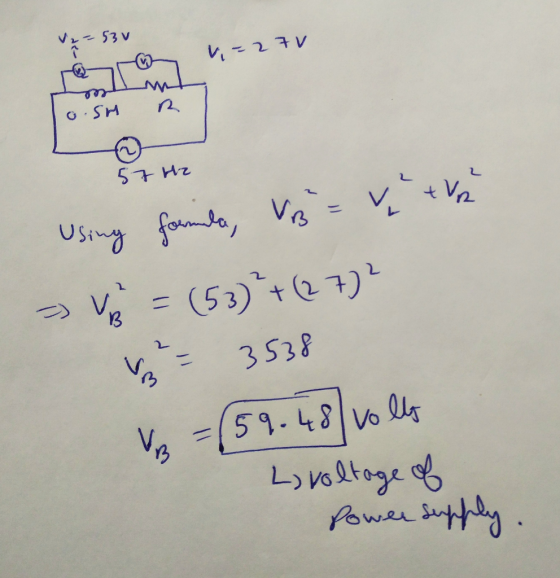

Homework Answers
Please ask your doubts or queries in the comment section below.
Please kindly upvote if you are satisfied with the solution.
Thank you.
Add Answer to:
A resistance R and a 0.5H inductance are in series
across a 57Hz ac voltage. The...
A resistance R and a 3.8-H inductance are in series across a 60-Hz ac voltage. The...
A resistance R and a 3.8-H inductance are in series across a 60-Hz ac voltage. The voltage across the resistor is 28 V and the voltage across the inductor is 26V. Assume that all voltages in this problem are rms voltages. (a) What is the resistance R? ohm (b) What is the ac input voltage? V
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
An AC circuit has a resistance of 500 ohms, a voltage of 200 V, an inductance...
An AC circuit has a resistance of 500 ohms, a voltage of 200 V, an inductance of 0.4 mHz, a capacitance of 100pF and an angular frequency of 5.00 x 105 rad/s. What is the impedance? What is the current amplitude? What is the voltage amplitude read by a voltmeter across the inductor, the resistor, and the capacitor individually? What is the voltage amplitude read by a voltmeter across the inductor and capacitor together?
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm,...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...
A series AC circuit has a power source with frequency f = 60 Hz, peak voltage...
A series AC circuit has a power source with frequency f = 60 Hz, peak voltage of epsilon_0 = 5.0 V, resistance R = 0.50 omega, capacitance C = 320 mu F, and inductance L = 0.40 H. what is the period circuit? What is the maximum current through the inductor? What is the largest power reached in resistor? Suppose the power supply reaches maximum voltage at time t_1, how the long after t_1 does the current though the resistor...
A series L-R-C circuit is driven with AC voltage of amplitude Vin and frequency ω. Define...
A series L-R-C circuit is driven with AC voltage of
amplitude Vin and frequency ω. Define Vout to be the amplitude of
the voltage across the capacitor. The resistance of the resistor is
R, the capacitance of the capacitor is C, and the inductance of the
inductor is L.(Figure 1)
What is the ratio VoutVin?
Express your answer in terms of either R, ω, L, and C or R, XL
=ωL, and XC =1ωC.
Vin c+ Vout
Review | Constants A series L-R-C circuit is driven with AC voltage of amplitude Vin and...
Review | Constants A series L-R-C circuit is driven with AC voltage of amplitude Vin and frequency w. Define Vout to be the amplitude of the voltage across the capacitor. The resistance of the resistor is R, the capacitance of the capacitor is C, and the inductance of the inductor is L. (Figure 1) Part A What is the ratio Viin Figure Express your answer in terms of either R, w, L, and C or R, XL = wl, and...
An ac series circuit consists of a voltage source of frequency f = 60 Hz and...
An ac series circuit consists of a voltage source of frequency f = 60 Hz and voltage amplitude V, a resistor of resistance 163 ohms and a capacitor of capacitance C= 6.2x10-6 F. What must the source voltage amplitude V be for the average electrical power consumed in the resistor to be 529 watts? There is no inductance in the circuit. Answer is 1200 V. Please show work. Thank you in advance! Will Thumbs up! Please help!
A resistor with R = 350 Ω and an inductor are connected in series across an...
A resistor with R = 350 Ω and an inductor are connected in series across an ac source that has voltage amplitude 500 V . The rate at which electrical energy is dissipated in the resistor is 306 W (a) What is the impedance Z of the circuit? (b) What is the amplitude of the voltage across the inductor? (c) What is the power factor?
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor.
A circuit has an ac voltage source and a resistor and capacitor connected in series. There is no inductor. The ac voltage source has voltage amplitude 0.900 kV and angular frequency w = 20.0 rad/s. The voltage amplitude across the capacitor is 0.500 kV. The resistor has resistance R= 0.300 kΩ. Part A What is the voltage amplitude across the resistor? Part B What is the capacitance C of the capacitor? Part C Does the source voltage lag or lead the current? Part D What is the average...
A series AC circuit has a power source with frequency f = 60 Hz, peak voltage of epsilon_0 = 5.0 V, resistance R = 0.50 omega, capacitance C = 320 mu F, and inductance L = 0.40 H. what is the period circuit? What is the maximum current through the inductor? What is the largest power reached in resistor? Suppose the power supply reaches maximum voltage at time t_1, how the long after t_1 does the current though the resistor...
A series L-R-C circuit is driven with AC voltage of
amplitude Vin and frequency ω. Define Vout to be the amplitude of
the voltage across the capacitor. The resistance of the resistor is
R, the capacitance of the capacitor is C, and the inductance of the
inductor is L.(Figure 1)
What is the ratio VoutVin?
Express your answer in terms of either R, ω, L, and C or R, XL
=ωL, and XC =1ωC.
Vin c+ Vout
Review | Constants A series L-R-C circuit is driven with AC voltage of amplitude Vin and frequency w. Define Vout to be the amplitude of the voltage across the capacitor. The resistance of the resistor is R, the capacitance of the capacitor is C, and the inductance of the inductor is L. (Figure 1) Part A What is the ratio Viin Figure Express your answer in terms of either R, w, L, and C or R, XL = wl, and...
