Monochromatic light with λ = 630 nm (in vacuum) falls through trough two slits in a...

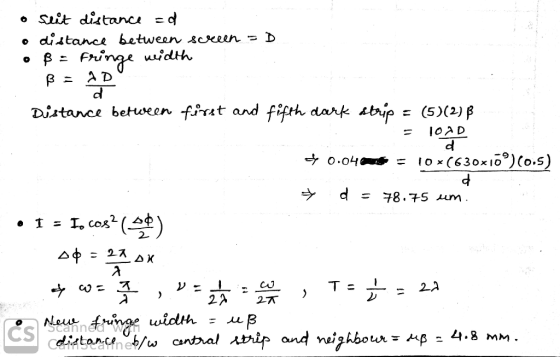

Monochromatic light with λ = 630 nm (in vacuum) falls through trough two slits in a screen. A second screen is set up parallel to the first screen, but 0.5 m away from it. A periodic pattern of bright and dark stripes is observed. The distance between the first and fifth dark stripe (counted from the center) is 4 cm.
Q17. What is the distance between the two slits?
Q18. What are the frequency ν, angular frequency ω, and period T?
Q19. The experiment is lowered into a tank that has a liquid with refractive index 1.2. How far are the central bright stripe and its neighbor now?
Homework Answers
Add Answer to:
Monochromatic light with λ = 630 nm (in vacuum) falls through
trough two slits in a...
Monochromatic light (λ 470 nm) passes through two slits and onto a screen 3.0 m away....
Monochromatic light (λ 470 nm) passes through two slits and onto a screen 3.0 m away. (a) If two nearby bright fringes are separated by 16 mm, what is the slit spacing? (b) If the slit spacing is reduced by a factor of two, what is the new distance between bright fringes?
A single slit of width 0.65 mm is illuminated with monochromatic light (λ = 630 nm)....
A single slit of width 0.65 mm is illuminated with monochromatic light (λ = 630 nm). A screen is placed 2.50 m from the slit to observe the fringe pattern. What is the distance from the main principle axis and the fourth dark fringe?
Monochromatic light (? = 440 nm) passes through two slits and onto a screen 3.0 m...
Monochromatic light (? = 440 nm) passes through two slits and onto a screen 3.0 m away. (a) If two nearby bright fringes are separated by 10 mm, what is the slit spacing? (b) If the slit spacing is reduced by a factor of four, what is the new distance between bright fringes? m
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Coherent monochromatic light of wavelength 632.8 nm passes through a pair of thin parallel slits. The...
Coherent monochromatic light of wavelength 632.8 nm passes through a pair of thin parallel slits. The figure below shows the central portion of the pattern of bright fringes viewed on a screen 1.40 m beyond the slits. What is the distance between the two slits? 2.52 cm Center of pattern
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
Two thin parallel slits are a distance d apart. Monochromatic light passing through them produces a...
Two thin parallel slits are a distance d apart. Monochromatic light passing through them produces a series of interference bright spots on a distant screen. PART A If you increase the distance between these slits, the bright spots will... move closer to the center spot or not change position?
Red light of wavelength 630 nm passes through two slits and then onto a screen that...
Red light of wavelength 630 nm passes through two slits and then onto a screen that is 1.8 m from the slits. The center of the third order bright band on the screen is separated from the central maximum by 0.75 m. 1. Determine the angle of the third-order bright band. 2. Determine the slit separation.
A pair of narrow, parallel slits separated by 0.220 mm isilluminated by green light (λ...
A pair of narrow, parallel slits separated by 0.220 mm is illuminated by green light (λ = 546.1 nm). The interference pattern is observed on a screen 1.50 m away from the plane of the parallel slits.(a) Calculate the distance from the central maximum to the first bright region on either side of the central maximum. ____mm(b) Calculate the distance between the first and second dark bands in the interference pattern. ____mm
Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits....
Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits. The interference pattern is observed on a screen 2.5 m behind the slits. Eleven bright fringes are seen, spanning a distance of 50 mm . What is the spacing (in mm) between the slits?
Monochromatic light (λ 470 nm) passes through two slits and onto a screen 3.0 m away. (a) If two nearby bright fringes are separated by 16 mm, what is the slit spacing? (b) If the slit spacing is reduced by a factor of two, what is the new distance between bright fringes?
Coherent monochromatic light of wavelength 632.8 nm passes through a pair of thin parallel slits. The figure below shows the central portion of the pattern of bright fringes viewed on a screen 1.40 m beyond the slits. What is the distance between the two slits? 2.52 cm Center of pattern
