how to calculate moving point avarage unit pulse response what is convolution and how to calculate...

Question

Question

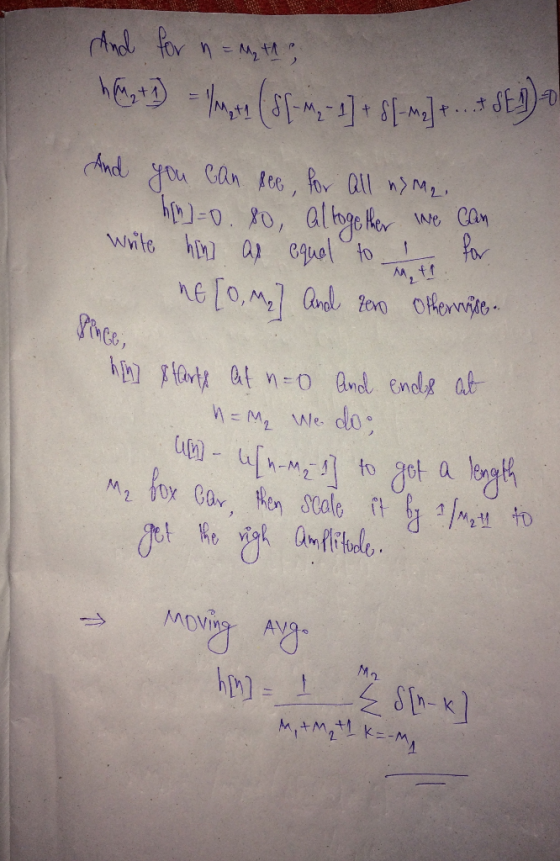

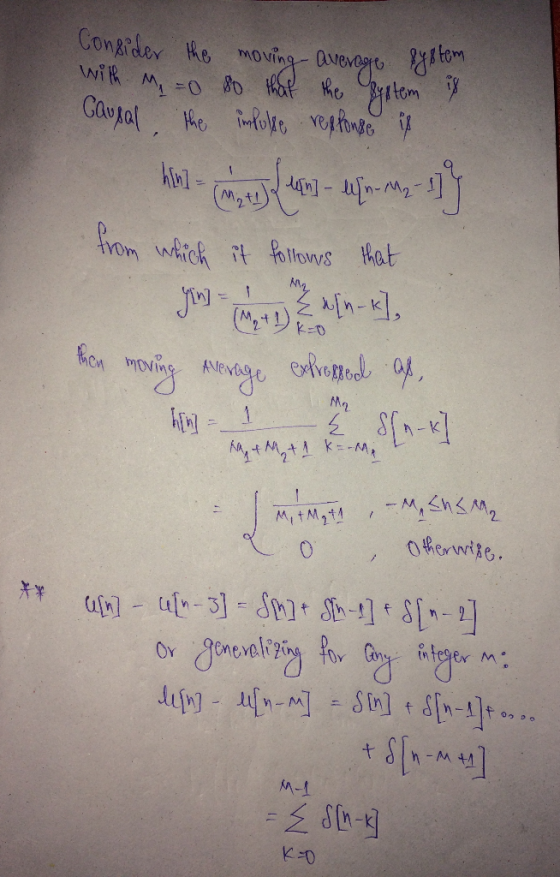

how to calculate moving point avarage

unit pulse response

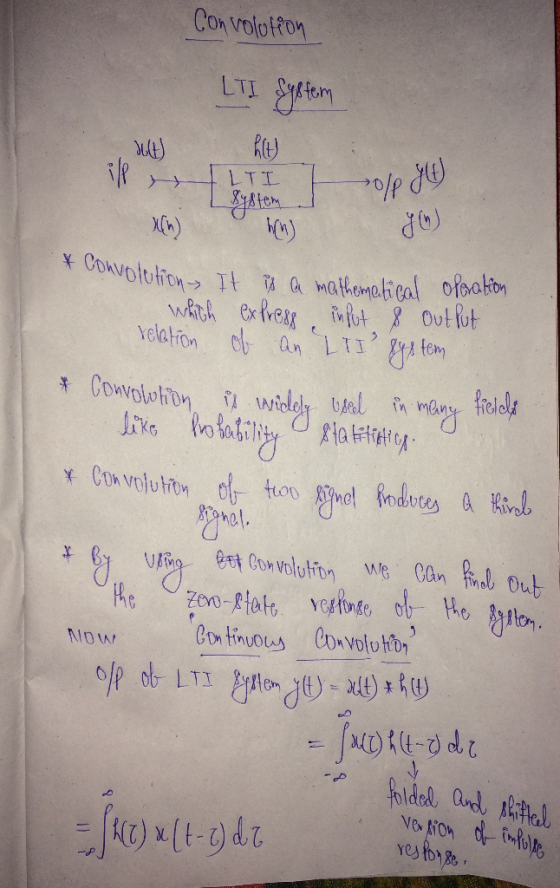

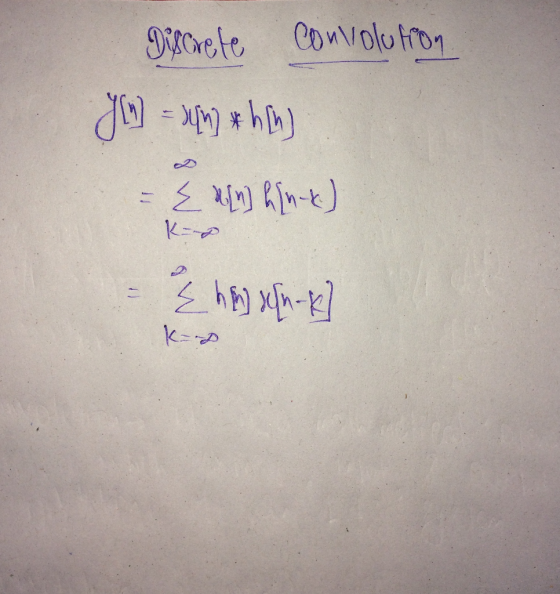

what is convolution and how to calculate the convolution of two signals

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Calculate the linear convolution of two continuous time rectangular pulses. The pulses are identical. The pulse...

Calculate the linear convolution of two continuous time rectangular pulses. The pulses are identical. The pulse is only non-zero for 0 < t < 1, and it is 1 for 0 < t < 1.
Just the program code please, thank you Question: How to compute the convolution of these two...

Just the program code please, thank you Question: How to compute the convolution of these two signals in MatLa.. (1 bookmark) How to compute the convolution of these two signals in MatLab, without using the conv function/command System response: y(t)= 2tu(t)-3(t-1)u(t-1)-(t2)u(t-2) should be this one according to the book's solutions. Suppose that the system of Figure P3.2(a) has the input x(t) given, in Figure P3.2(b). The impulse response is the unit step fund ion h(t)u(t). Find and sketch the system...
Analytically solve for the response y[t] of the system h[t]=2e‐10t for a pulse input x[t] of...

Analytically solve for the response y[t] of the system h[t]=2e‐10t for a pulse input x[t] of width 1, 10 or 100 msec with its amplitude such that its width times its amplitude is equal to .1 a.) For each pulse, solve assuming it is an ideal impulse (i.e. use convolution integral) b.) solve not making this assumption (i.e. use convolution integral). c. ) Plot your results Matlab and also calculate the response using the conv command in Matlab.

The impulse response of a filter is given by the function: Use convolution to calculate the...

The impulse response of a filter is given by the function: Use convolution to calculate the step-response/output of the filter. - no x[n] was given in the task h[n] = a[n]-20[n-1] + 0[n-2]
Consider a discrete-time system with frequency response given by HO OSN< -<N<0 Determine the unit pulse...

Consider a discrete-time system with frequency response given by HO OSN< -<N<0 Determine the unit pulse response of this system, showing all your workings.
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n)...

CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...

Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convol...

Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convolution of two signals. Q5. Consider an L'TI system with input x (o] and impulse response h (o] specified as follows. x [n] = 2"u [-n] h [n] -u [n] Find the output y [n] using convolution sum. Q4. Consider the two sequences x [n] = [0 otherwise h[n] = {00 otherwise α>1 calculate the convolution of two signals. Q5. Consider an L'TI...
Moving to another question will save this response. stion 14 When two point charges are at...

Moving to another question will save this response. stion 14 When two point charges are at distance d - 11 m part, the electric force that each one feels from the other has magnitude F. To make this force stronger twice as tes, the distance (in meters) should changed to Moving to another question will save this response
Consider a discrete-time system with unit pulse response h[n] given by 0, no h [n] =...

Consider a discrete-time system with unit pulse response h[n] given by 0, no h [n] = 3, n=1 4, n=2 0,n3 Obtain the state representation of this system in controller canonical form, showing all steps.

Compute the unit-pulse response h[n] for the discrete-time system y[n + 2] - 2y[n + 1]...

Compute the unit-pulse response h[n] for the discrete-time system y[n + 2] - 2y[n + 1] + y[n] = x[n] (for n = 0, 1, 2, 3).
