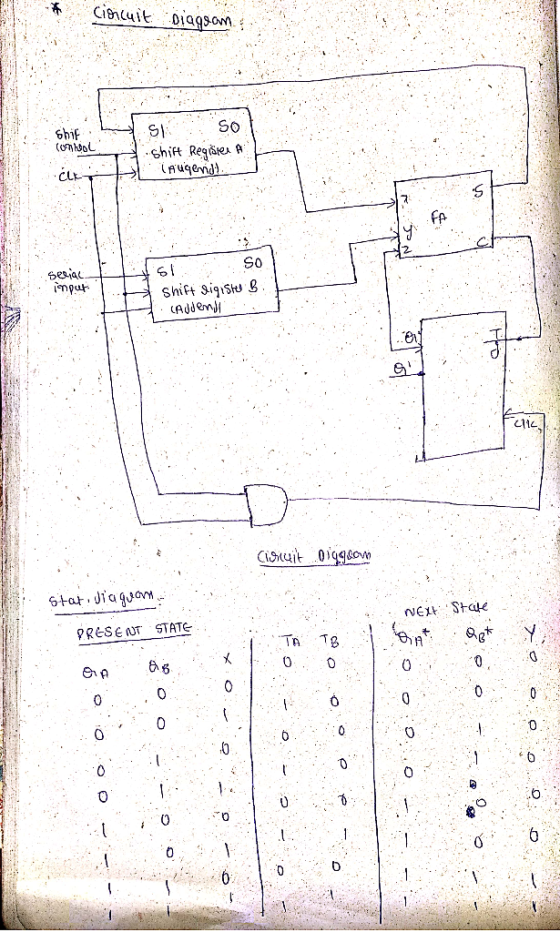

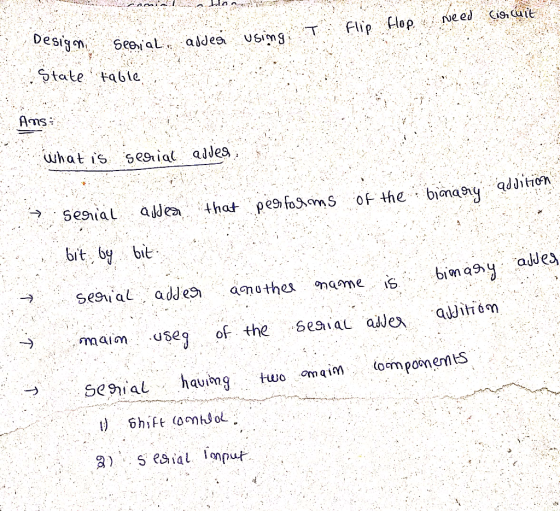

Design Serial Adder using T Flip flop Need : circuit, state table
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
I NEED HELP WITH FLIP FLOPS Flip-flop type JK Design a JK flip flop using only logic gates .Fill the truth table exercising all possible combinations of inputs for J and K Flip-flop type D Set the JK type flip flop from the previous step to work as a flip flop type D. Fill the truth table by exercising all combinations of possible entries D Flip-flop type T Set the circuit of the previous step to work as a flip...
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop inputs and the output.
4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
A sequential circuit has one flip-flop Q, two inputs x and y, and one output. It consists of a full-adder circuit connected to a D flip-flop, as shown in Figure 1 as follows. For the sequential circuit derive (or draw) the,A) state equation B) state table C) state diagram
Design a sequential circuit with the following characteristic equations using T flip flop 1. A(t+1E A(t)B(t) +XA'(t) B(t+1) A'(t)B(t) + XB'(t) Draw the state Diagram for the circuit.
Design a sequential circuit with the following characteristic equations using T flip flop 1. A(t+1E A(t)B(t) +XA'(t) B(t+1) A'(t)B(t) + XB'(t) Draw the state Diagram for the circuit.
Draw the gate level circuit schematic of a D flip-flop and a T flip-flop based on the cross-coupled NAND latch. Briefly discuss the timing behavior of a D flip-flop, a T flip-flop and a latch. (a) (8 Marks) circuit has three inputs, S, C and C2. S is the control input. When S-O, the circuit behaves like a D flip-flop, and when S-1, the circuit behaves like a T flip-flop. The input characteristics of the circuit are tabulated in Table...
Question 2 [15 Ptsl Flip-flops: Using D flip-flop, design a one input, one output serial 2's complimenter. The circuit accepts a string of bits from the input and generates the 2's compliment at the output. The circuit can be reset asynchronously to start and end the operation. Draw your circuit.
