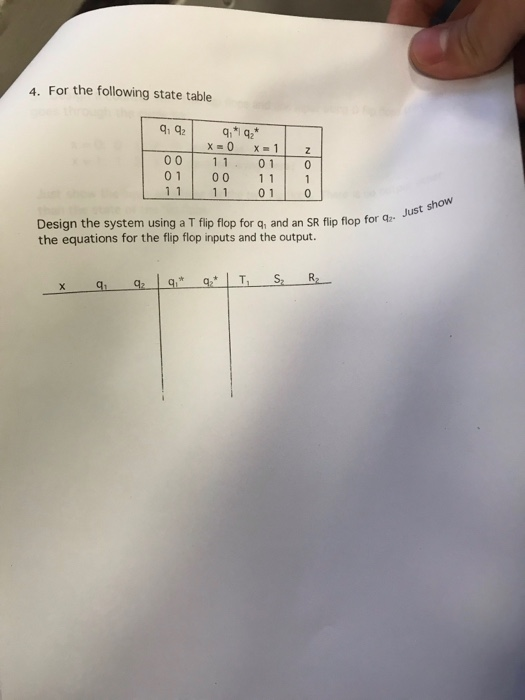

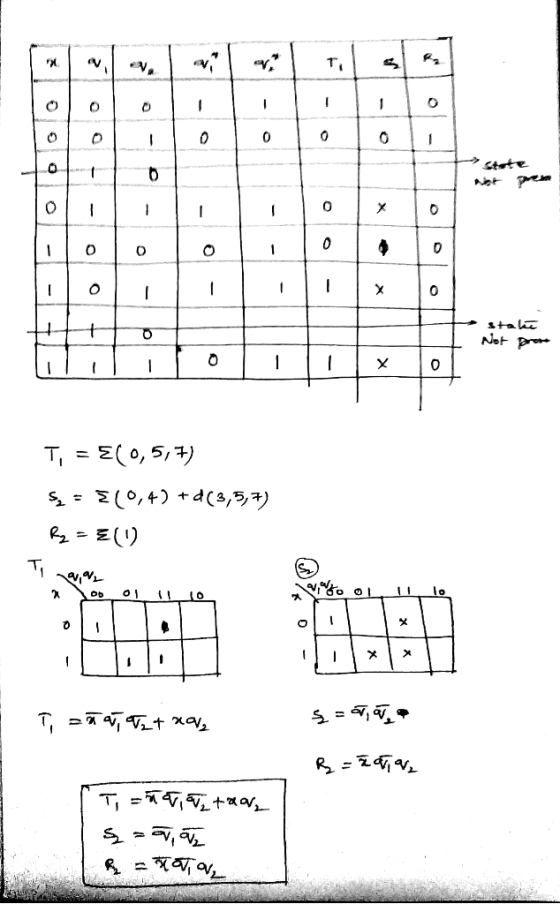

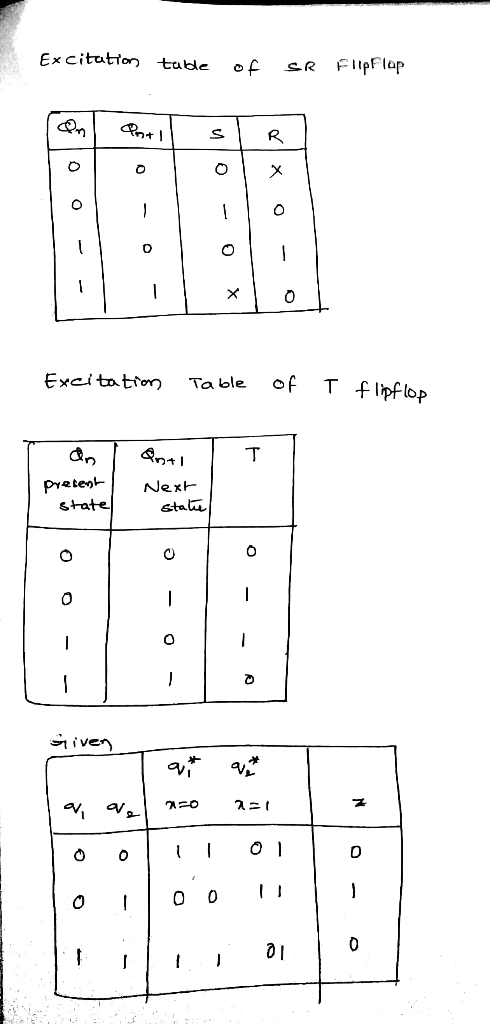

4. For the following state table 00 11 01 01 00 1 1 01 11 jus Design the system using a T flip flop for q, and an SR flip flop for the equations for the flip flop inputs and the output. 4. F...
1) For the following state table, design the system using SR flip flops. 0 0 1 10 01 10 11 0o 01 0
1) For the following state table, design the system using SR flip flops. 0 0 1 10 01 10 11 0o 01 0
1) For the following state table, design the system using SR flip flops. 0 0 1 10 01 10 11 0o 01 0
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00...
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00 0IOI01 1 01 01OIO0 01 A. Draw a state Diagram. B. Create the "design truth table" for the "next state" and the "output" C. Make a Karnaugh for each "next state" and the "output" When making the Karnaugh maps, "xA" should be along the top and "BC" along the side (The two missing states should be considered "DONT CARES") D. Write the "Next State"...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output"...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output" (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xO1" should be along the top and "0203'" along the side (The two missing states should be considered "DONT CARES")...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "O203" along the side (The two missing states should be considered "DONT CARES") Write the "Next State" and Output equations from the Karnaugh maps...
TABLE 1- Etation Tble oe Fot Flip Flops D Rip Rop IK flip-flop Using the table above answer the f...
need help please answer asap thank you
TABLE 1- Etation Tble oe Fot Flip Flops D Rip Rop IK flip-flop Using the table above answer the following questions Question9 (5 pts). SR flip-fl S 0 and R 0 and Q(t)1 What is the value of Q(t+1)? inputs and output? op: Assume that you are given the following Bin Hexac Question10 (5 pts). SR f S 0 and R 0 and Q(t) o What is the value of Q(t+1)? flip-flop: Assume...
5.4 2um 4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data,...
5.4 2um
4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data, Clock, and Enable. If, at the negative edge of the clock, the enable input equals to 0, then the state at Data input is stored in the flip-flop. If, at the negative edge of clock, Enable is in 1 state, then the current stored value in the flip-flop is held. Design the flip-flop using only SR latches, AND gates, and NOT gates.
4-34. Design...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value...
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Design an FSM counter that counts the sequence: 00, 11, 01, 10,00, 11, ..
1) For the following state table, design the system using SR flip flops. 0 0 1 10 01 10 11 0o 01 0
1) For the following state table, design the system using SR flip flops. 0 0 1 10 01 10 11 0o 01 0
Given the State Table Below ?" ?" X-1 AB C 0 0 0O01 0OI011 01 00 0IOI01 1 01 01OIO0 01 A. Draw a state Diagram. B. Create the "design truth table" for the "next state" and the "output" C. Make a Karnaugh for each "next state" and the "output" When making the Karnaugh maps, "xA" should be along the top and "BC" along the side (The two missing states should be considered "DONT CARES") D. Write the "Next State"...
Given the State Table Below 01* 02 03 1 203 X-1 0 000 01 0 0 0 1 0 0 A. Draw a state Diagram (5 points) B. Create the "design truth table" for the "next state" and the "output" (5 points) C. Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xO1" should be along the top and "0203'" along the side (The two missing states should be considered "DONT CARES")...
Given the State Table Below 01 02 Q3 X-1 A. B. C. Draw a state Diagram (S points) Create the "design truth table" for the "next state" and the "output" (5 points) Make a Karnaugh for each "next state" and the "output" (10 points) When making the Karnaugh maps, "xQ1" should be along the top and "O203" along the side (The two missing states should be considered "DONT CARES") Write the "Next State" and Output equations from the Karnaugh maps...
need help please answer asap thank you
TABLE 1- Etation Tble oe Fot Flip Flops D Rip Rop IK flip-flop Using the table above answer the following questions Question9 (5 pts). SR flip-fl S 0 and R 0 and Q(t)1 What is the value of Q(t+1)? inputs and output? op: Assume that you are given the following Bin Hexac Question10 (5 pts). SR f S 0 and R 0 and Q(t) o What is the value of Q(t+1)? flip-flop: Assume...
5.4 2um
4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data, Clock, and Enable. If, at the negative edge of the clock, the enable input equals to 0, then the state at Data input is stored in the flip-flop. If, at the negative edge of clock, Enable is in 1 state, then the current stored value in the flip-flop is held. Design the flip-flop using only SR latches, AND gates, and NOT gates.
4-34. Design...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Q5: 1. Design the circuit of JK Flip-Flop using DFF and derive state table and characteristic equation. 2. Draw the circuit of T Flip-Flop using JK FF and derive state table and characteristic equation. 3. For this SC derive the following • Derive Input Equations. • Derive Output Equation. • Derive State Equations. • Derive State Table • Design the State Diagram. 4. Suppose that a building with 4 floors (0-3), the task is to design a counter for an...
Design a double edge-triggered D flip-flop. The output of the flip-flop Q should "sample" the value of the input D on both rising (+ve) and falling (-ve) edges of the clock CLK. Design an FSM counter that counts the sequence: 00, 11, 01, 10,00, 11, ..
