You have a given amount of copper (total mass M). You wish to form it into...

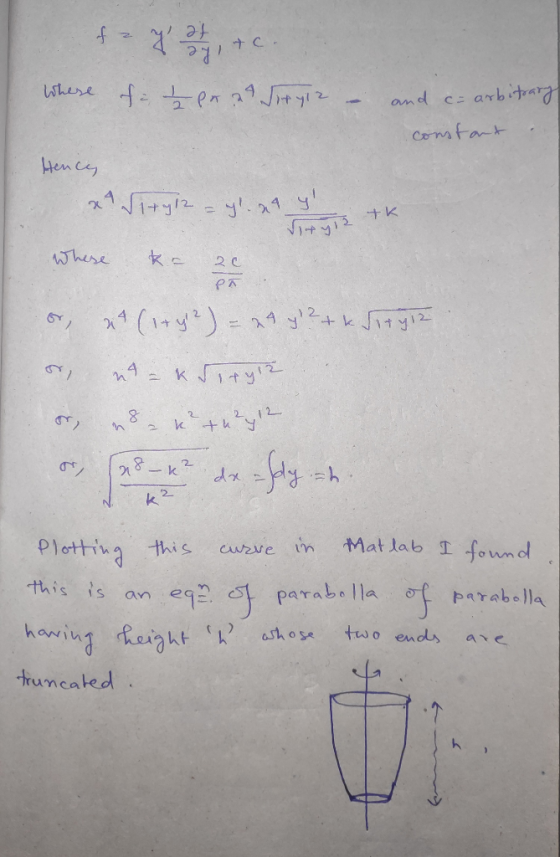

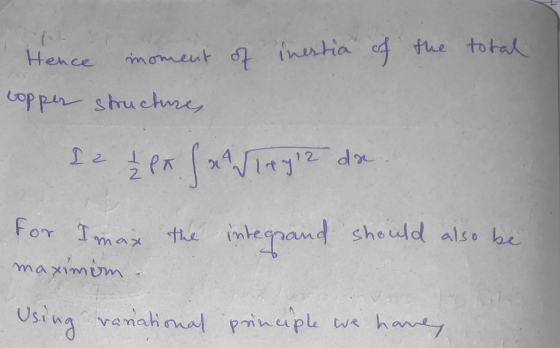

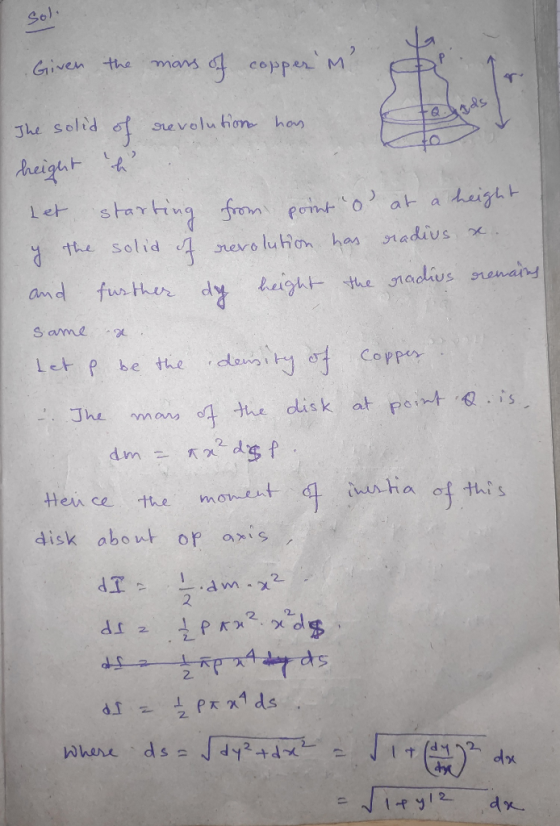

You have a given amount of copper (total mass M). You wish to form it into a solid of revolution with height h, and minimum moment of inertia about its axis. Use calculus of variations to find the required shape, making sure to include the total mass = M constraint explicitly
Homework Answers
Add Answer to:
You have a given amount of copper (total mass M). You wish to
form it into...
Please help with 2.4. It must be solved using the Euler-Lagrange equation. The answer is a...
Please help with 2.4. It must be solved using the Euler-Lagrange
equation. The answer is a right cylinder, but I'm not even sure how
to use the E-L equation to get that answer. Thank you!
2.4 Consider a solid of revolution of a given height. Determine the shape of the solid if it has the minimum moment of inertia about its axis 2.5 Consider the variational problem for variable end points. (a) Let
1. A thin rod of length L and total mass M has a linear mass density...
1. A thin rod of length L and total mass M has a linear mass density that varies with position as λ(x)-γ?, where x = 0 is located at the left end of the rod and γ has dimensions M/L3. ĮNote: requires calculus] (a) Find γ in terms of the total mass M and the length L. (b) Calculate the moment of inertia of this rod about an axis through its left end, oriented perpen dicular to the rod; expressed...
What is the position of the center of mass of the part? 6 point (s) m...
What is the position of the center of mass of the part? 6 point (s) m 2D Moment of Inertia You are designing a part for a piece of machinery. The part consists of a piece of sheet metal cut as shown below. The shape of the upper edge of the part is given by y1(x), and the shape of the lower edge of the part is given by y2(x) You are correct. Your receipt no. is 158-2419 Now you...
A uniform plate of height H = 1.86 m is cut in the form of a...
A uniform plate of height H = 1.86 m is cut in the form of a parabolic section. The lower boundary of the plate is defined by: y = 0.70 x2. The plate has a mass of 7.19 kg. Find the moment of inertia of the plate (in kgm2) about the y-axis.
Use equation I=∫r2dm to calculate the moment of inertia of a uniform, hollow sphere with mass M and radius R for an axis...
Use equation I=∫r2dm to calculate the moment of inertia of a uniform, hollow sphere with mass M and radius R for an axis passing through one of its diameters. Express your answer in terms of the variables M and R. Use equation I=∫r2dm to calculate the moment of inertia of a uniform, solid cone with mass M, radius R and height H for its axis of symmetry. Express your answer in terms of the variables M and R.
two uniform solid spheres with mass M and radius R and the other with mass M...
two uniform solid spheres with
mass M and radius R and the other with mass M and radiius Rb =2R,
are connected by a thin uniform rod of length L=2R and mass M. find
an expression for the moment of inertia I about the axis through
the center of the rod. wrtie an expression in terms of M, R, and a
numerical factor in fraction form
Mandard and the chamad conected by a thirred of 2R and Find an expression...
M Two uniform, solid spheres (one has a mass M and a radius R and the...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R. = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
M Two uniform, solid spheres (one has a mass M and a radius R and the...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia / about the axis through the center of the rod. Write the expression in terms of M. R. and a numerical...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 3R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a...
Results given on page 300: TABLE 12.2 Moments of inertia of objects with uniform density Object...
Results given on page 300: TABLE 12.2 Moments of inertia of objects with uniform density Object and axis Picture Picture Object and axis Thin rod about center ML2 Cylinder or disk MR about center Thin rod about end ML Cylindrical hoop, MR2 about center Plane or slab, about center Маг | Solid sphere, about diameter MR2 Plane or slab about edge MaSpherical shell, about diameter MR2 2. b. A very thin, flat, uniform slab has a width of W, a...
Please help with 2.4. It must be solved using the Euler-Lagrange
equation. The answer is a right cylinder, but I'm not even sure how
to use the E-L equation to get that answer. Thank you!
2.4 Consider a solid of revolution of a given height. Determine the shape of the solid if it has the minimum moment of inertia about its axis 2.5 Consider the variational problem for variable end points. (a) Let
1. A thin rod of length L and total mass M has a linear mass density that varies with position as λ(x)-γ?, where x = 0 is located at the left end of the rod and γ has dimensions M/L3. ĮNote: requires calculus] (a) Find γ in terms of the total mass M and the length L. (b) Calculate the moment of inertia of this rod about an axis through its left end, oriented perpen dicular to the rod; expressed...
What is the position of the center of mass of the part? 6 point (s) m 2D Moment of Inertia You are designing a part for a piece of machinery. The part consists of a piece of sheet metal cut as shown below. The shape of the upper edge of the part is given by y1(x), and the shape of the lower edge of the part is given by y2(x) You are correct. Your receipt no. is 158-2419 Now you...
two uniform solid spheres with
mass M and radius R and the other with mass M and radiius Rb =2R,
are connected by a thin uniform rod of length L=2R and mass M. find
an expression for the moment of inertia I about the axis through
the center of the rod. wrtie an expression in terms of M, R, and a
numerical factor in fraction form
Mandard and the chamad conected by a thirred of 2R and Find an expression...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R. = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia / about the axis through the center of the rod. Write the expression in terms of M. R. and a numerical...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 3R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a...
Results given on page 300: TABLE 12.2 Moments of inertia of objects with uniform density Object and axis Picture Picture Object and axis Thin rod about center ML2 Cylinder or disk MR about center Thin rod about end ML Cylindrical hoop, MR2 about center Plane or slab, about center Маг | Solid sphere, about diameter MR2 Plane or slab about edge MaSpherical shell, about diameter MR2 2. b. A very thin, flat, uniform slab has a width of W, a...
