A 60 Hz transformer has been tested with the following results under open circuit test: Primary...

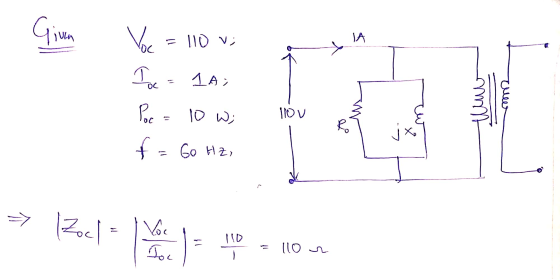

A 60 Hz transformer has been tested with the following results under open circuit test: Primary voltage: 110 V(rms); Primary current: 1A(rms) and Input power: 10 W. Find the equivalent core loss resistance and equivalent magnetizing inductance of the transformer
Homework Answers
Add Answer to:
A 60 Hz transformer has been tested with the following results
under open circuit test: Primary...
