A certain flow field is described by the velocity potential( φ = A ln r +Br...

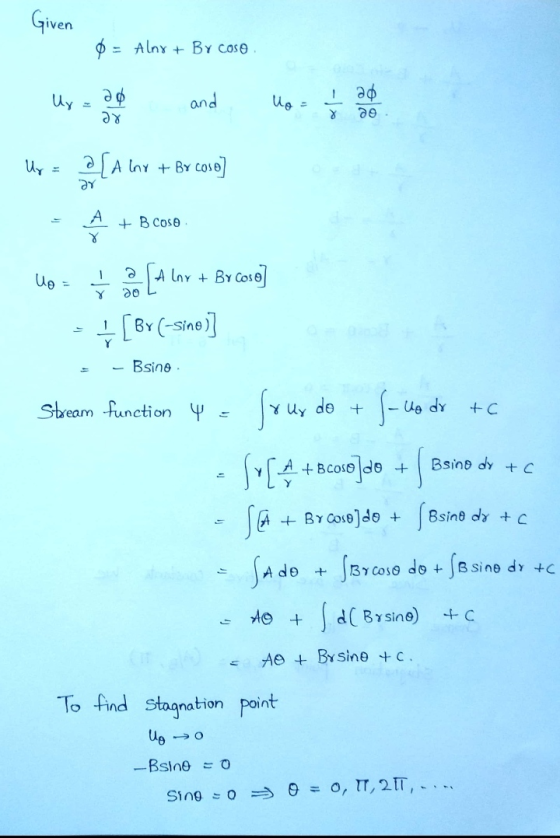

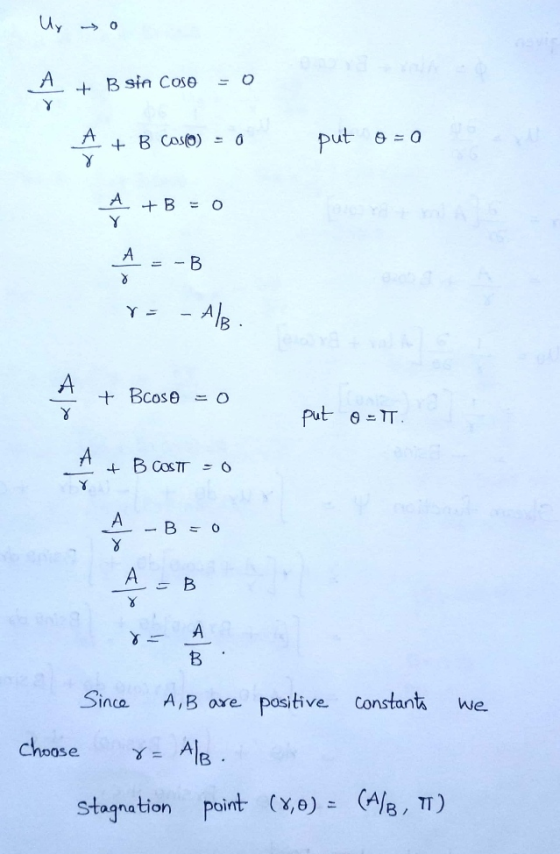

A certain flow field is described by the velocity potential( φ = A ln r +Br cosθ) where A and B are positive constants. Determine the corresponding stream function and locate any stagnation points in this flow field
Homework Answers
Add Answer to:
A certain flow field is described by the velocity potential( φ =
A ln r +Br...
The velocity potential for a certain inviscid flow field is φ = -(9x2y - y3) where...
The velocity potential for a certain inviscid flow field is φ = -(9x2y - y3) where φ has the units of ft2/s when x and y are in feet. Determine the pressure difference (in psi) between the points (1, 2) and (4, 4), where the coordinates are in feet, if the fluid is water and elevation changes are negligible. p1 - p2 =
The velocity potential for a certain inviscid flow field is φ = -(4x2y - y3) where...
The velocity potential for a certain inviscid flow field is φ = -(4x2y - y3) where φ has the units of ft2/s when x and y are in feet. Determine the pressure difference (in psi) between the points (1, 2) and (5, 5), where the coordinates are in feet, if the fluid is water and elevation changes are negligible. p1 - p2 = Enter your answer in accordance to the question statement psi
Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1...
Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1 m/s, B = 1 s−1, and the coordinates are measured in meters. Obtain expressions forthe velocity field and the stream function. Using water as the working fluid, calculate the pressure difference between the origin and the point (x,y) = (1,2). What is the volume flow rate (per unit depth) between streamlines passing through these two points?
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive)...
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive) is the sink strength and Γ is the vortex strength (1) Find the expression of stream function. (2) The plot of stream function is shown in the following figure. Prove the angle,a, between the 2Tt velocity vector and the radial direction is constant throughout the flow field. (FYI, this spiral is called Logarithmic spiral.) .y
6.8 A certain flow field is described by the stream function -xy. (a) Sketch the flow...
6.8 A certain flow field is described by the stream function -xy. (a) Sketch the flow field. (b) Find the z and y velocity components at (0,0), [1,1], [oo, 0], and [4, 1]. (c) Find the volume flow rate per unit width lowing between the streamlines passing throu points [0, 0] and [1, 1], and points [1,21 and (5,3.
The stream function for a certain incompressible flow field is given by the expression Ψ =...
The stream function for a certain incompressible flow field is given by the expression Ψ = -Ur sin θ + qθ/2π. (a) Obtain an expression for the velocity field. (b) Find the stagnation point(s) where | V | = 0.
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using t...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using the values, U-8 m/s and m-3 m'/s determine the pressure distribution and obtain the location op the stagnation point or points in the flow field.
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using t...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using the values, U-8 m/s and m-3 m2/s determine the pressure distribution and obtain the location op the stagnation point or points in the flow field.
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types...
The potential function, ф, of the flow past a corner is provided by the following equation,...
The potential function, ф, of the flow past a corner is provided by the following equation, where n is a constant that depends on the angle between the two walls (see Figure below) 600 Figure 2: Stream function in proximity of two walls at an angle of 60° . Determine the stream function, ψ, associated to the potential function and discuss the relationship between ψ and φ. . Determine the constant n corresponding to an angle of 60° between the...
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive) is the sink strength and Γ is the vortex strength (1) Find the expression of stream function. (2) The plot of stream function is shown in the following figure. Prove the angle,a, between the 2Tt velocity vector and the radial direction is constant throughout the flow field. (FYI, this spiral is called Logarithmic spiral.) .y
6.8 A certain flow field is described by the stream function -xy. (a) Sketch the flow field. (b) Find the z and y velocity components at (0,0), [1,1], [oo, 0], and [4, 1]. (c) Find the volume flow rate per unit width lowing between the streamlines passing throu points [0, 0] and [1, 1], and points [1,21 and (5,3.
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using the values, U-8 m/s and m-3 m'/s determine the pressure distribution and obtain the location op the stagnation point or points in the flow field.
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types...
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types of the potential flows superpositioned c) Using the values, U-8 m/s and m-3 m2/s determine the pressure distribution and obtain the location op the stagnation point or points in the flow field.
Q7. The flow field is defined by the complex potential function, f(z)- Uz+mlnz) a) Define the stream and potential functions, b) Define the types...
The potential function, ф, of the flow past a corner is provided by the following equation, where n is a constant that depends on the angle between the two walls (see Figure below) 600 Figure 2: Stream function in proximity of two walls at an angle of 60° . Determine the stream function, ψ, associated to the potential function and discuss the relationship between ψ and φ. . Determine the constant n corresponding to an angle of 60° between the...
