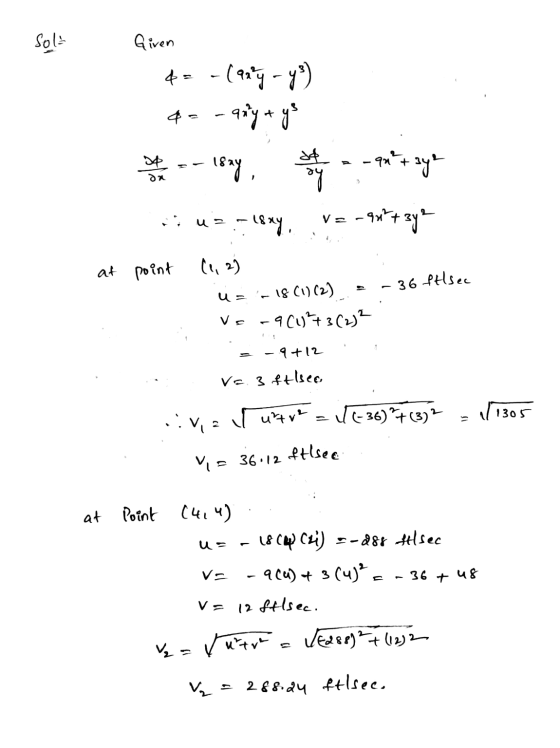

The velocity potential for a certain inviscid flow field is φ = -(9x2y - y3) where...
The velocity potential for a certain inviscid flow field
is
φ = -(9x2y -
y3)
where φ has the units of ft2/s when x
and y are in feet.

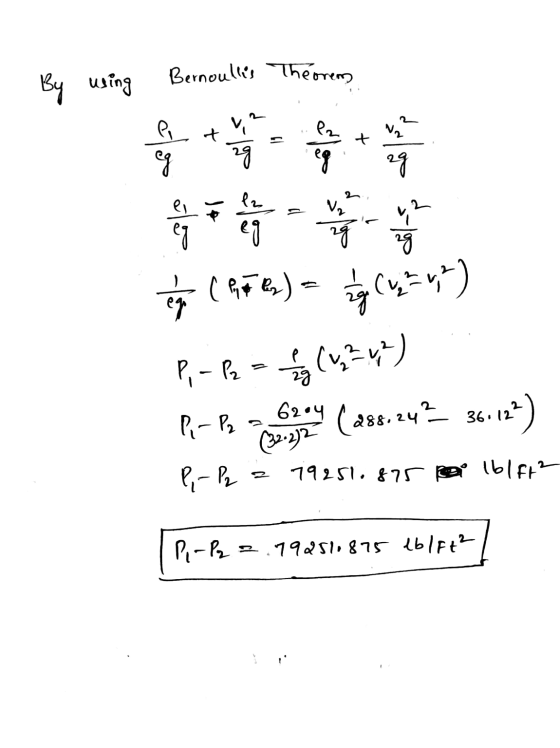

Determine the pressure difference (in psi) between the points (1,
2) and (4, 4), where the coordinates are in feet, if the fluid is
water and elevation changes are negligible.
| p1 - p2 = |
Homework Answers
