The velocity potential for a certain inviscid flow field is φ = -(4x2y - y3) where...

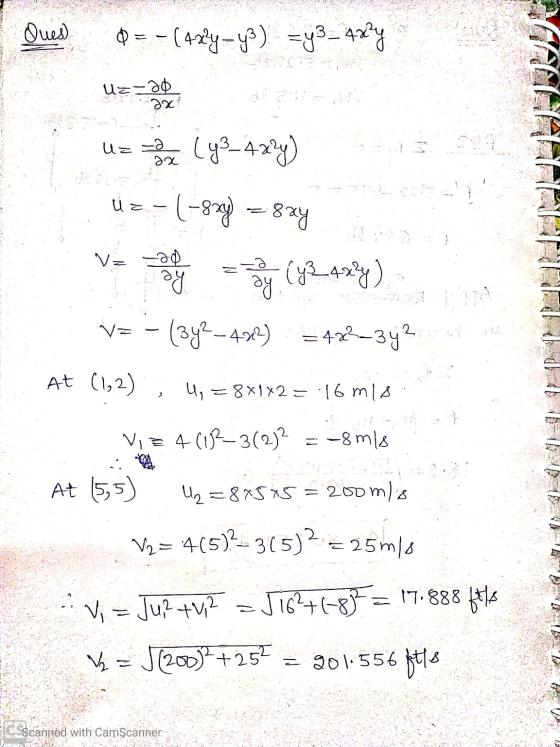

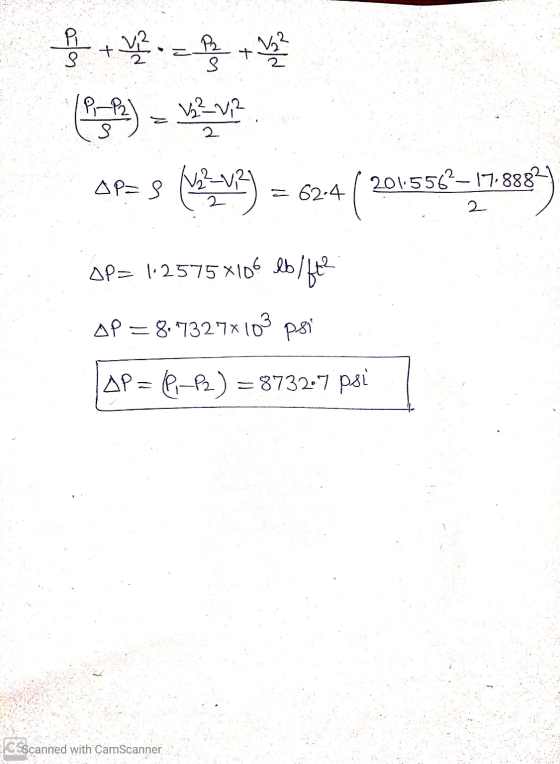

The velocity potential for a certain inviscid flow field is φ = -(4x2y - y3) where φ has the units of ft2/s when x and y are in feet. Determine the pressure difference (in psi) between the points (1, 2) and (5, 5), where the coordinates are in feet, if the fluid is water and elevation changes are negligible. p1 - p2 = Enter your answer in accordance to the question statement psi
Homework Answers
Add Answer to:
The velocity potential for a certain inviscid flow field is φ =
-(4x2y - y3) where...
The velocity potential for a certain inviscid flow field is φ = -(9x2y - y3) where...
The velocity potential for a certain inviscid flow field is φ = -(9x2y - y3) where φ has the units of ft2/s when x and y are in feet. Determine the pressure difference (in psi) between the points (1, 2) and (4, 4), where the coordinates are in feet, if the fluid is water and elevation changes are negligible. p1 - p2 =
Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1...
Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1 m/s, B = 1 s−1, and the coordinates are measured in meters. Obtain expressions forthe velocity field and the stream function. Using water as the working fluid, calculate the pressure difference between the origin and the point (x,y) = (1,2). What is the volume flow rate (per unit depth) between streamlines passing through these two points?
help 1. A 2D inviscid flow field is represented by the velocity potential function: ° =...
help
1. A 2D inviscid flow field is represented by the velocity potential function: ° = Ax + Bx2 – By2. Where A = 1m/s, B = 15-7, and the coordinates are measured in meters. The flow density is p = 1.2 kg/m3. (a) (2 points) Calculate the velocity field. (b) (2 points) Verify that the flow is irrotational. (c) (2 points) Verify that the flow is incompressible. (d) (2 points) Obtain the expression of stream function. (e) (2 points)...
A certain flow field is described by the velocity potential( φ = A ln r +Br...
A certain flow field is described by the velocity potential( φ = A ln r +Br cosθ) where A and B are positive constants. Determine the corresponding stream function and locate any stagnation points in this flow field
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid...
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid is given by, u=x', v=y', w=0 a) Fluid velocity and the magnitude of velocity at a point M(-3,2). b) Fluid acceleration and its magnitude at a same point.
Name: Problem 4 (20 pts). The velocity potential for a cylinder rotating in a uniform stream of fluid is 2TT where U, a, Г are constants. The density of the flow is , and gravitational force is n...
Name: Problem 4 (20 pts). The velocity potential for a cylinder rotating in a uniform stream of fluid is 2TT where U, a, Г are constants. The density of the flow is , and gravitational force is negligible. Compute the pressure difference between points A and B. -+
Name: Problem 4 (20 pts). The velocity potential for a cylinder rotating in a uniform stream of fluid is 2TT where U, a, Г are constants. The density of the flow is...
Question 1 (40 points) From potential flow theory, the combination of a doublet and a uniform flow gives the flowfi...
Question 1 (40 points) From potential flow theory, the combination of a doublet and a uniform flow gives the flowfield around a cylinder. The resulting velocity potential for the flow is given by: A cos Ur cos e The resulting velocity field in cylindrical coordinates is given by - = 4 r ae ar where e, and eo are the unit vectors in cylindrical polar coordinates, Uo is the free-stream velocity and A an arbitrary parameter. a) (10 points) Determine...
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive)...
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive) is the sink strength and Γ is the vortex strength (1) Find the expression of stream function. (2) The plot of stream function is shown in the following figure. Prove the angle,a, between the 2Tt velocity vector and the radial direction is constant throughout the flow field. (FYI, this spiral is called Logarithmic spiral.) .y
please help me. Z=x+ly Ideal potential flow field with velocity vector in 2- dimensional virtual (x,...
please help me.
Z=x+ly Ideal potential flow field with velocity vector in 2- dimensional virtual (x, y) plane Complex potential function of a fluid flowing through a range with a volumetric flow m and F(2) = aperture range is given with. Where In; natural logarithmic function and sinh; sinus is hyperbolic function abbreviation, m and b are constant. Find the velocity components in Cartesian coordinates for this flow area in (sinh (5)
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given...
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
help
1. A 2D inviscid flow field is represented by the velocity potential function: ° = Ax + Bx2 – By2. Where A = 1m/s, B = 15-7, and the coordinates are measured in meters. The flow density is p = 1.2 kg/m3. (a) (2 points) Calculate the velocity field. (b) (2 points) Verify that the flow is irrotational. (c) (2 points) Verify that the flow is incompressible. (d) (2 points) Obtain the expression of stream function. (e) (2 points)...
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid is given by, u=x', v=y', w=0 a) Fluid velocity and the magnitude of velocity at a point M(-3,2). b) Fluid acceleration and its magnitude at a same point.
Name: Problem 4 (20 pts). The velocity potential for a cylinder rotating in a uniform stream of fluid is 2TT where U, a, Г are constants. The density of the flow is , and gravitational force is negligible. Compute the pressure difference between points A and B. -+
Name: Problem 4 (20 pts). The velocity potential for a cylinder rotating in a uniform stream of fluid is 2TT where U, a, Г are constants. The density of the flow is...
Question 1 (40 points) From potential flow theory, the combination of a doublet and a uniform flow gives the flowfield around a cylinder. The resulting velocity potential for the flow is given by: A cos Ur cos e The resulting velocity field in cylindrical coordinates is given by - = 4 r ae ar where e, and eo are the unit vectors in cylindrical polar coordinates, Uo is the free-stream velocity and A an arbitrary parameter. a) (10 points) Determine...
2. The velocity potential for a spiral vortex flow is given by φ-2nInr-2-9, where A (positive) is the sink strength and Γ is the vortex strength (1) Find the expression of stream function. (2) The plot of stream function is shown in the following figure. Prove the angle,a, between the 2Tt velocity vector and the radial direction is constant throughout the flow field. (FYI, this spiral is called Logarithmic spiral.) .y
please help me.
Z=x+ly Ideal potential flow field with velocity vector in 2- dimensional virtual (x, y) plane Complex potential function of a fluid flowing through a range with a volumetric flow m and F(2) = aperture range is given with. Where In; natural logarithmic function and sinh; sinus is hyperbolic function abbreviation, m and b are constant. Find the velocity components in Cartesian coordinates for this flow area in (sinh (5)
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...
