Question

In AVR language, what's the difference between precompiler directives .def and .equ?

Answer 1

Answer: .def and .equ both provide the same working feature but the main difference is one of them is constant another not. .DEF directive is not constant. It can be redefined in the rest of the sane program. But.EQU directive is constant. It can not be redefined or changed in the rest of the program.

The details of these two directives discussed below:

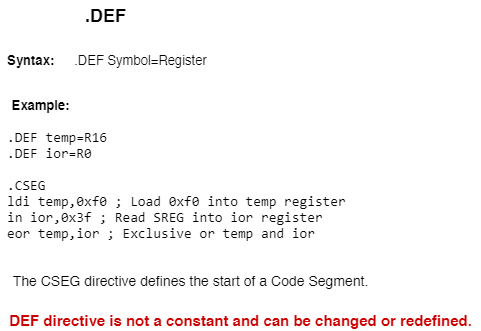

DEF - Set a symbolic name on a register

The DEF directive grants the registers to be mentioned by symbols. That defined symbol can be used in the rest of the program as a replacement of the register it is assigned to. A register can have various symbolic names attached to it. A symbol can be defined again next in the program. So it can be changed later in the program.

Syntax:

.DEF Symbol=Register

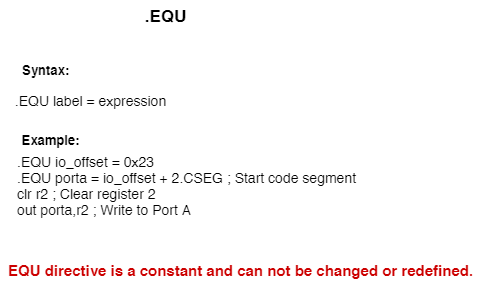

EQU - Set a symbol equal to an expression

The EQU directive assigns a value to a label. This label can then be used in later expressions. A label assigned to a value by the EQU directive is a constant and can not be changed or redefined.

Syntax:

.EQU label = expression

Conclusion: EQU is constant DEF is not.
