208 Volt, 10 HP, single pole number 4, 60 Hz, star-connected asynchronous motor, full load slip...

208 Volt, 10 HP, single pole number 4, 60 Hz, star-connected asynchronous motor, full load slip value is 5%. Calculate the following values. (1 HP = 736 W)
a-) Synchronous speed and nominal (Full load) rotor speed
b-) Rotor current frequency
c-) Full load shaft torque
d-) Full load stator current if full load power factor 0,9 and full load efficiency 0,85

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

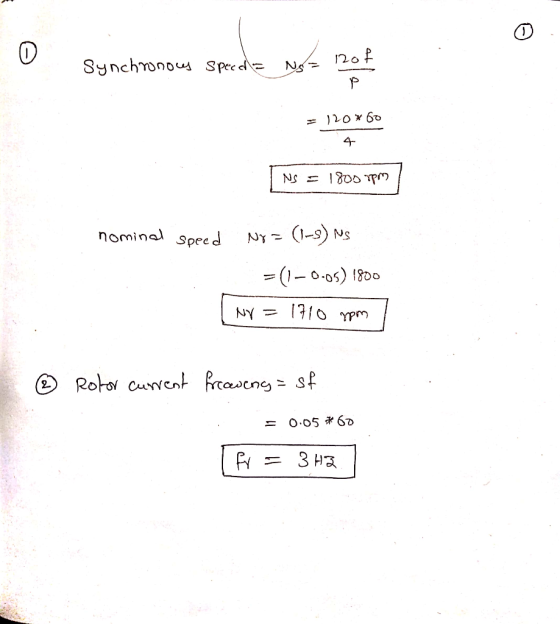

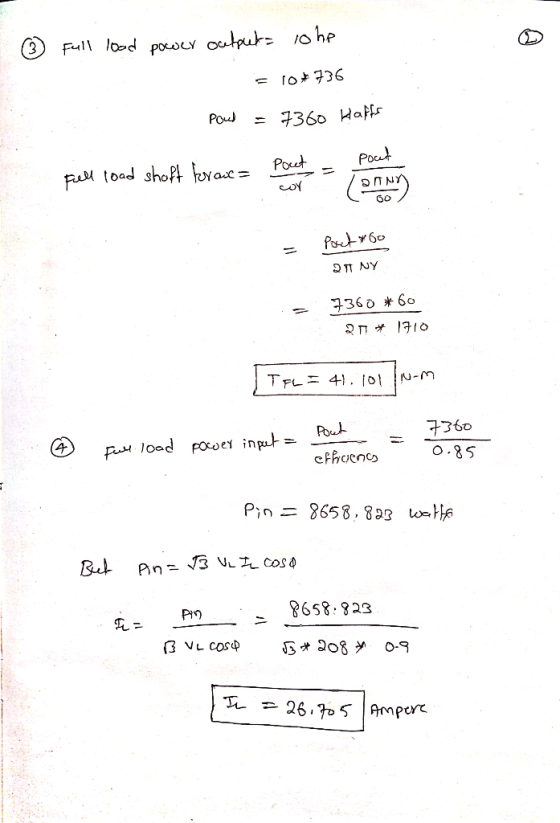

Answer #1

0 0
