Find the electric dipole moment of a cylinder of radius R and height h. The volume...

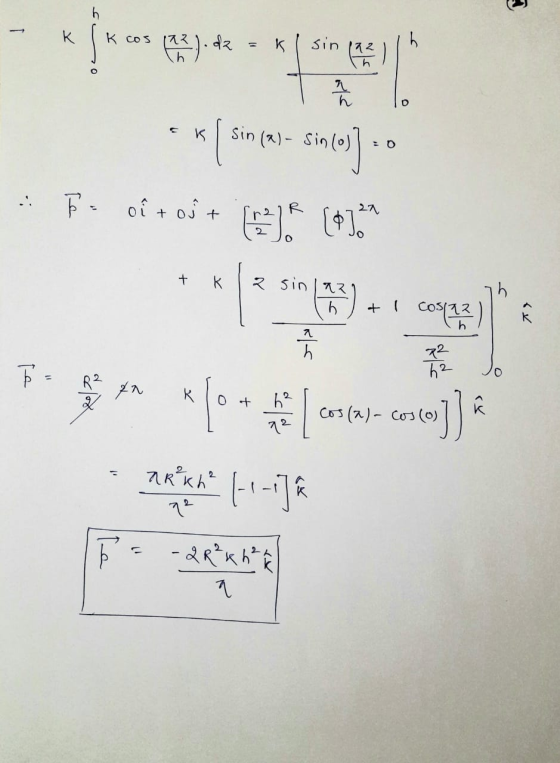

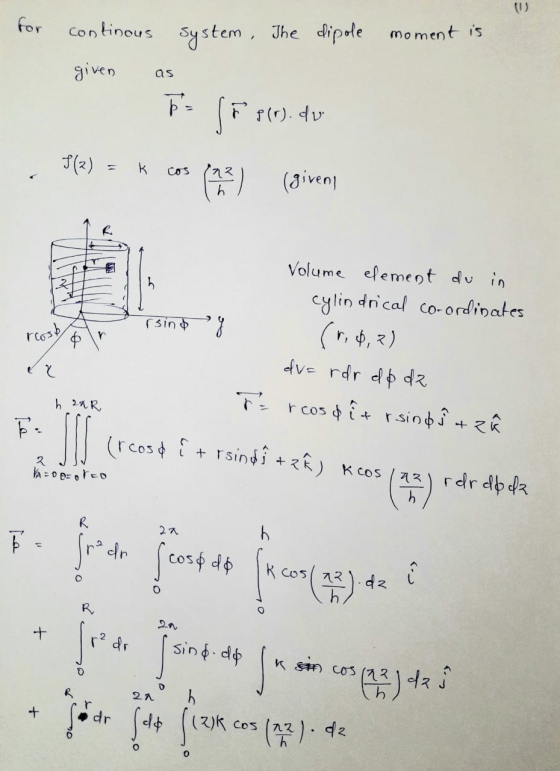

Find the electric dipole moment of a cylinder of radius R and height h. The volume charge density in the cylinder is given by ρ(z) = k·cos(πz/h). The z-axis is the axis of the cylinder, and the origin is placed at the bottom of the cylinder. Give the answer in terms of k, h, and R in unit vector notation.
Homework Answers
Add Answer to:
Find the electric dipole moment of a cylinder of radius R and
height h. The volume...
Eo z-h/2 The cylinder in the figure has radius a, height h and lies along the z axis with the ori...
Eo z-h/2 The cylinder in the figure has radius a, height h and lies along the z axis with the origin in the middle. The cylinder is made by a perfect dielectric material and is polarized. The polarization vector is P Poay with (a) Find the density of all polarization charge distributions that may exist within or on t he cylinder. [4 points] (b) Without doing calculations, determine the direction of the electric field E at the origin. Briefly justify...
4. Find the total charge of a solid cylinder of height H and radius R. The...
4. Find the total charge of a solid cylinder of height H and radius R. The charge density of the cylinder is given by p k, where k is a constant.
Physics 2: Dipole Moment and Electric Potential Having a hard time with some of these questions....
Physics 2: Dipole Moment and Electric Potential
Having a hard time with some of these questions. Help would be
greatly appreciated. If you could put in all equations used and
show your work it would be greatly appreciated. I want to compare
the answers I got. You will be rewarded! Thanks :-)
A long cylindrical conductor shell has a uniform positive charge distribution per unit length, +2 lambda and with inner radius r and the outer radius 2r.A long wire...
1. A cylinder of mass m, height h and radius r floats partially submerged in a...
1. A cylinder of mass m, height h and radius r floats partially submerged in a liquid of density ρ. One third of the height of the cylinder is above the surface of the water. Johnny pushes the cylinder down by a small distance x<h/3, then he releases it from rest. A) prove that the resulting motion of the cylinder is a simple harmonic motion. B) Find the period of the small oscillations in terms of the given quantities (m,r,h,ρ)
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in...
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in the ry-plane, is located with its centre at the origin, and rotates about the z-axis with angular velocity -w (a) Using cylindrical coordinates (s , z), specify the current density J(s φ z) as a func- tion of position. Find the magnetic dipole moment Hint: After you have determined the volume current density, you can use this result...
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in...
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in the ry-plane, is located with its centre at the origin, and rotates about the z-axis with angular velocity -w (a) Using cylindrical coordinates (s , z), specify the current density J(s φ z) as a func- tion of position. Find the magnetic dipole moment Hint: After you have determined the volume current density, you can use this result...
1. Find the electric field at point a for: a. A solid sphere of radius R...
1. Find the electric field at point a for: a. A solid sphere of radius R carrying a volume charge density ρ b. An infinitely long, thin wire carrying a line charge density Side Cross Section C. A plane of infinite area carrying a surface charge density ơ PoT 2. Avery long cylinder with radius a and charge density pa-is placed inside of a conducting cylindrical shell. The cylindrical shell has an inner radius of b and a thickness of...
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potentia...
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potential outside the cylinder is The electric field inside of the cylinder is and the electric field outside the cylinder is n11 out-_E Find the surface charge density and take the cylinder axis to be the z-axis and take Eo - Eo
ery long dielectric...
Consider two concentric insulating cylinders of infinite length. The inner cylinder is solid with radius R,...
Consider two concentric insulating cylinders of infinite length. The inner cylinder is solid with radius R, while the outer cylinder is a hollow shell with inner radius a and outer radius b. Both cylinders have the same volume charge density of +ρ. Using Gauss’s Law, find the electric field as a function of r (where r = 0 at the central axis) in the interval a ≤ r < b. Note: Your final equation should be in terms of given...
1. A cylinder of mass m, height h and radius r floats partially submerged in a...
1. A cylinder of mass m, height h and radius r floats partially submerged in a liquid of density ρ. One third of the height of the cylinder is above the surface of the water. Johnny pushes the cylinder down by a small distance x<h/3, then he releases it from rest. A) prove that the resulting motion of the cylinder is a simple harmonic motion. B) Find the period of the small oscillations in terms of the given quantities (m,r,h,ρ)...
Eo z-h/2 The cylinder in the figure has radius a, height h and lies along the z axis with the origin in the middle. The cylinder is made by a perfect dielectric material and is polarized. The polarization vector is P Poay with (a) Find the density of all polarization charge distributions that may exist within or on t he cylinder. [4 points] (b) Without doing calculations, determine the direction of the electric field E at the origin. Briefly justify...
4. Find the total charge of a solid cylinder of height H and radius R. The charge density of the cylinder is given by p k, where k is a constant.
Physics 2: Dipole Moment and Electric Potential
Having a hard time with some of these questions. Help would be
greatly appreciated. If you could put in all equations used and
show your work it would be greatly appreciated. I want to compare
the answers I got. You will be rewarded! Thanks :-)
A long cylindrical conductor shell has a uniform positive charge distribution per unit length, +2 lambda and with inner radius r and the outer radius 2r.A long wire...
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in the ry-plane, is located with its centre at the origin, and rotates about the z-axis with angular velocity -w (a) Using cylindrical coordinates (s , z), specify the current density J(s φ z) as a func- tion of position. Find the magnetic dipole moment Hint: After you have determined the volume current density, you can use this result...
1. *A thin disc of radius a and height h contains charge +q uniformly distributed throughout the disc. The disc lies in the ry-plane, is located with its centre at the origin, and rotates about the z-axis with angular velocity -w (a) Using cylindrical coordinates (s , z), specify the current density J(s φ z) as a func- tion of position. Find the magnetic dipole moment Hint: After you have determined the volume current density, you can use this result...
1. Find the electric field at point a for: a. A solid sphere of radius R carrying a volume charge density ρ b. An infinitely long, thin wire carrying a line charge density Side Cross Section C. A plane of infinite area carrying a surface charge density ơ PoT 2. Avery long cylinder with radius a and charge density pa-is placed inside of a conducting cylindrical shell. The cylindrical shell has an inner radius of b and a thickness of...
ery long dielectric cylinder of radius a and dielectric constant er is placed in a field Eo perpendicular to its A v axis. The electric potential inside the cylinder is r in and the electric potential outside the cylinder is The electric field inside of the cylinder is and the electric field outside the cylinder is n11 out-_E Find the surface charge density and take the cylinder axis to be the z-axis and take Eo - Eo
ery long dielectric...
