Consider the following grammar expr- term term_tail term_tail -add_op term term_tail | term - factor factor_tail...

Consider the following grammar

expr- term term_tail

term_tail -add_op term term_tail |

term - factor factor_tail

factor_tail-mult_op factor factor _tail |

factor -(expr) |id|literal

add_op -+|-

mult_op-*|/

Draw syntax tree for parsing each of cdf+(a25+84),(a25+84)*cdf,84*cdf+a25,a25+84*cdf,a25*84*cdf.Note that a25 and cdf are identifiers and 84 is a literal.You are not asked to do the tedious parsing process with stack snapshots.Instead you only need to draw sysntax trees,but you do need to do lexical analysis

N.B: I need only lexical analysis for this question

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Dear student, according to the above question, the solution is as follows:

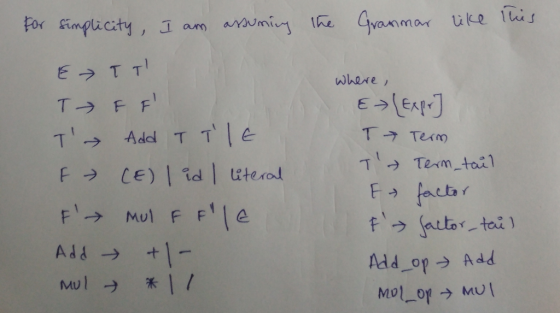

Please note that you haven't mentioned the epsilon (ε) in the term_tail and factor_tail Non-terminals in the grammar.

So, I have included that and solved the question (There should be epsilon in the grammar).

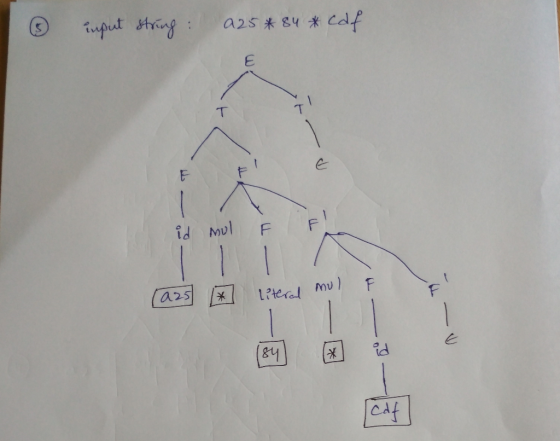

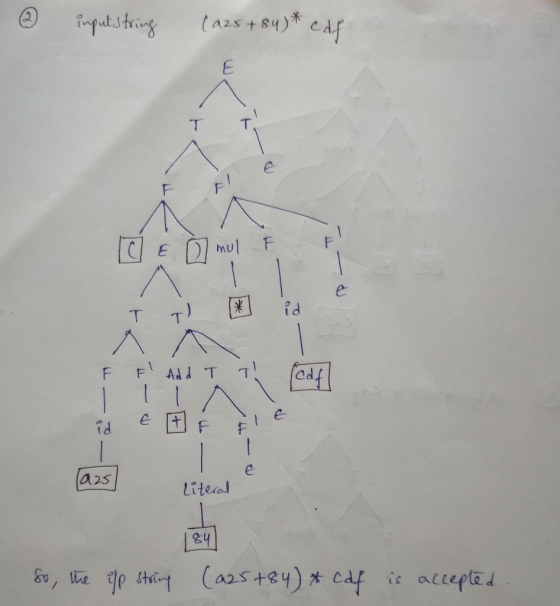

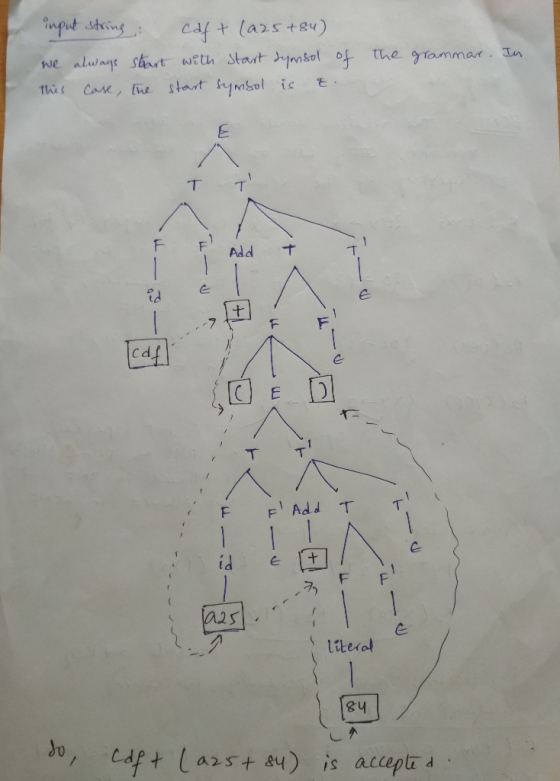

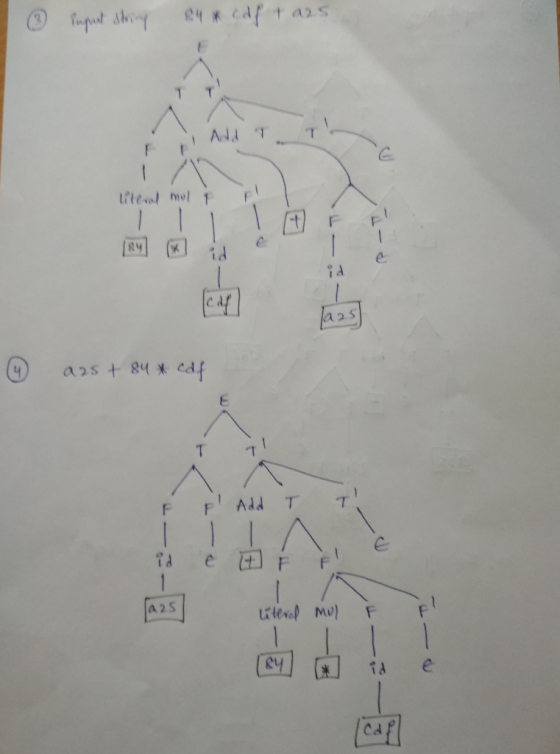

Solutions for the Syntax Trees :

Thank You, All the Best.

Any doubts in this, feel free to contact through the comment section.
