VERILOG CODE Please write the code for a FULL ADDER using only NAND and XOR gates...

Question

Question

VERILOG CODE

Please write the code for a FULL ADDER using only NAND and XOR gates in VERILOG LANGUAGE .

engineering Electrical-Engineering

Answer 1

Answer #1

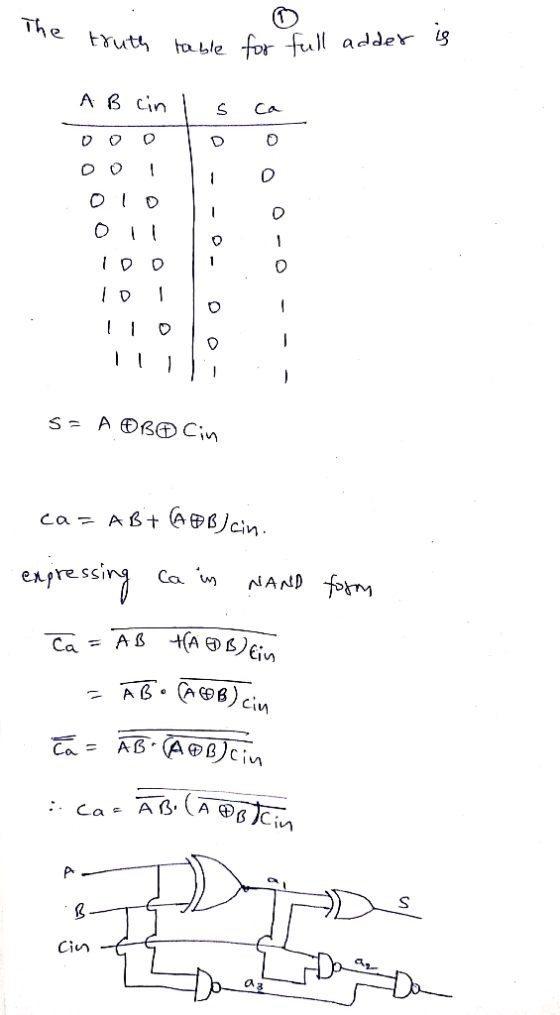

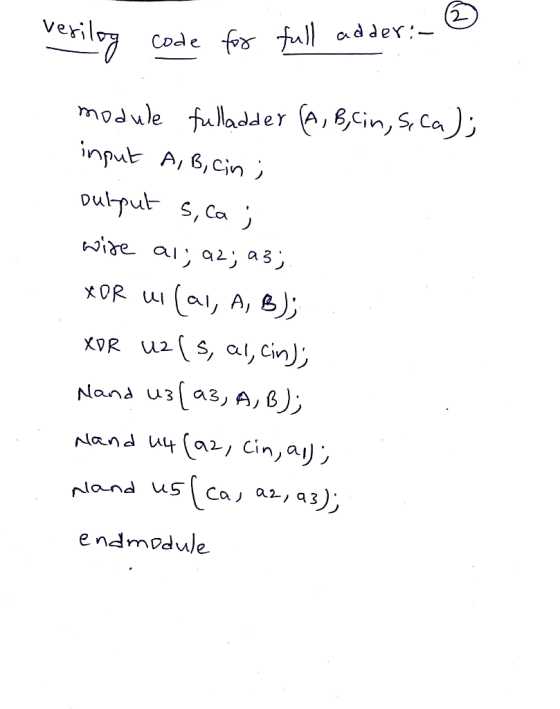

I have clearly given the verilog code. If you like the answer kindly please give thumbs up sir...

Answer 2
