1) Construct a crystal field energy-level diagram, assign the electrons to orbitals for [MnCl4]2− (tetrahedral). 2)...

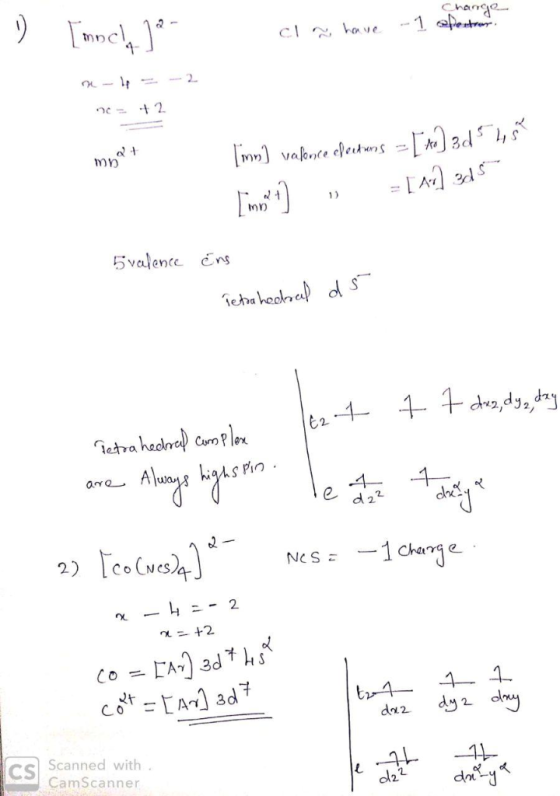

1) Construct a crystal field energy-level diagram, assign the electrons to orbitals for [MnCl4]2− (tetrahedral).
2) Construct a crystal field energy-level diagram, assign the electrons to orbitals for [Co(NCS)4]2− (tetrahedral).

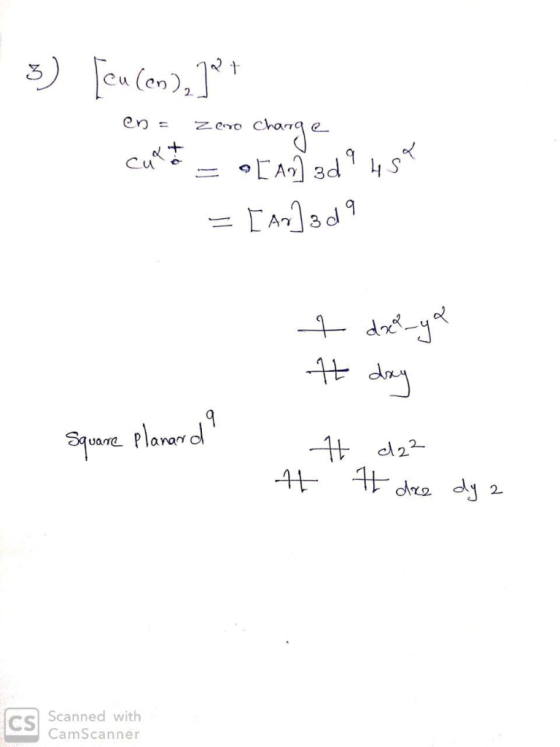

3) Construct a crystal field energy-level diagram, assign the electrons to orbitals for [Cu(en)2]2+ (square planar).
Homework Answers
Add Answer to:
1) Construct a crystal field energy-level diagram, assign the
electrons to orbitals for [MnCl4]2− (tetrahedral).
2)...
2. a. Draw and show the crystal field splitting of the d orbitals in an octahedral...
2. a. Draw and show the crystal field splitting of the d orbitals in an octahedral complex, a tetrahedral complex, and in a square planar complex.(clearly label the orbitals) b. Explain the difference in the following crystal field splitting values (1) Co(NH3).]2+ 10200 cm"! : [CO(NH3).]* 22,900 cm (ii) [Cr(H20).]** 17,400 cm. ; [Cr(CN).]3-26,600 cm (iii) [MnF6]?- 22,200 cm-"; [ReF.]?- 27,800 cm- (iv) [Co(NH3).]2+ 10,200 cm '; [Co(NH3)4]2+ 5,900 cm c. Draw and show the filling of 6 d electrons...
O THE TRANSITION METALS Adding electrons to a crystal field theory energy level di. The energies...
O THE TRANSITION METALS Adding electrons to a crystal field theory energy level di. The energies of the valence d orbitals on the iron atom in the tetrahedral Fe(CN), complex are split according to the electron box level diagram below. (Note: the d orbitals are labeled with just their subscript, to make the labels easier to read.) Complete the diagram by adding the correct number of electrons to each orbital energy 1 Jxs ?
-Drawing a crystal field theory energy level diagram Using crystal field theory, draw an electron box...
-Drawing a crystal field theory energy level diagram Using crystal field theory, draw an electron box energy level diagram for the valence d orbitals on the vanadium atom in a complex. Your diagram should show the relative energy of each orbital, and the number of electrons in each orbital. Note: to make your diagram easier to read, label the d orbitals with just the subscript. For example, label the d.2 orbital with just z energy
For each of the following complexes, give an energy level diagram of the split d orbitals,...
For each of the following complexes, give an energy level diagram of the split d orbitals, fill the orbitals with electrons appropriately, and indicate the number of unpaired electrons (spins). In addition, calculate the LFSE for (a)–(f). (a) [Co(NH3)4(CN)2] (b) [Cr(CN)6]3– (c) [FeF6]3– (d) MnO4– (tetrahedral) (e) [Cu(H2O)6]2+ (f) [Cd(CN)4]2– (g) [Ni(CN)4]2
Question 2 1 pts In tetrahedral crystal field splitting, which orbitals are of equal, but highest...
Question 2 1 pts In tetrahedral crystal field splitting, which orbitals are of equal, but highest energy? o dxy o dxz dz2 o dyz dx2-y2
ligand field will cause splitting of energy levels of 3d orbitals of the central metal ion.............
ligand field will cause splitting of energy levels of 3d
orbitals of the central metal ion..........
splitting of energy ieveis of 3d obitals of the central metal ion. 6. Ligand field will cause Draw the energy levels of the 3d ortbitals of metal complexes in (a) octahedral, (b) tetrahedral, (c) square planar, (d) linear configurations. (e) Briefly explain the key factor which determines the relative energy level of the five 3d orbitals in different configurations. (20 % )
splitting of...
Use the concepts of crystal field theory to predict the highest-energy orbital or group of orbitals...
Use the concepts of crystal field theory to predict the highest-energy orbital or group of orbitals among the five d orbitals when a transition metal ion is placed in the following type of ligand field environments (assuming conventional axes definition is used) Draw the geometry and draw the highest energy orbital (label: axis and orbital) to show how your came to your conclusion. Square planar: Trigonal bipyramidal:
Using the crystal field theory approach, draw the d-orbital splitting diagram for octahedral [Cu(...
Using the crystal field theory approach, draw the d-orbital splitting diagram for octahedral [Cu(OH2)6+, properly label each of the orbitals (i.e. dky etc.), and fill in the electrons. Show the changes in energy of all the d-orbitals under the influence of Jahn-Teller distortions resulting in both axial elongation and in axial compression (tetragonal distortions).
Using the crystal field theory approach, draw the d-orbital splitting diagram for octahedral [Cu(OH2)6+, properly label each of the orbitals (i.e. dky etc.), and fill in...
Crystal Field Question. I understand that octahedral shapes have larger splitting energies then in tetrahedral complexes....
Crystal Field Question.
I understand that octahedral shapes have larger splitting energies
then in tetrahedral complexes. And it would take more energy to
split more electrons. So would the order be from Highest to Lowest:
B>A>C where A, B, C are the compounds listed in their
respective orders.
Between Ni(H20)s2+ ; Ni(en)32+; and lowest and why? Cu(CN)42- which has highest splitting and which has
Using the spectrochemical series, fill the electrons in the correct crystal field diagram (shown below) for...
Using the spectrochemical series, fill the electrons in the
correct crystal field diagram (shown below) for the following
complex. Is this complex high spin or low spin complex? Also
predict is the compound is paramagnetic or diamagnetic.
Spectrochemical Series I<Br<C1<F-<OH<H2O<NH3<en< NO2 <CN<CO [Co(en)3]3+ or dxz dyz dxy de dx²-y? d22 dx?-? dxz dyz dxy
2. a. Draw and show the crystal field splitting of the d orbitals in an octahedral complex, a tetrahedral complex, and in a square planar complex.(clearly label the orbitals) b. Explain the difference in the following crystal field splitting values (1) Co(NH3).]2+ 10200 cm"! : [CO(NH3).]* 22,900 cm (ii) [Cr(H20).]** 17,400 cm. ; [Cr(CN).]3-26,600 cm (iii) [MnF6]?- 22,200 cm-"; [ReF.]?- 27,800 cm- (iv) [Co(NH3).]2+ 10,200 cm '; [Co(NH3)4]2+ 5,900 cm c. Draw and show the filling of 6 d electrons...
O THE TRANSITION METALS Adding electrons to a crystal field theory energy level di. The energies of the valence d orbitals on the iron atom in the tetrahedral Fe(CN), complex are split according to the electron box level diagram below. (Note: the d orbitals are labeled with just their subscript, to make the labels easier to read.) Complete the diagram by adding the correct number of electrons to each orbital energy 1 Jxs ?
-Drawing a crystal field theory energy level diagram Using crystal field theory, draw an electron box energy level diagram for the valence d orbitals on the vanadium atom in a complex. Your diagram should show the relative energy of each orbital, and the number of electrons in each orbital. Note: to make your diagram easier to read, label the d orbitals with just the subscript. For example, label the d.2 orbital with just z energy
Question 2 1 pts In tetrahedral crystal field splitting, which orbitals are of equal, but highest energy? o dxy o dxz dz2 o dyz dx2-y2
ligand field will cause splitting of energy levels of 3d
orbitals of the central metal ion..........
splitting of energy ieveis of 3d obitals of the central metal ion. 6. Ligand field will cause Draw the energy levels of the 3d ortbitals of metal complexes in (a) octahedral, (b) tetrahedral, (c) square planar, (d) linear configurations. (e) Briefly explain the key factor which determines the relative energy level of the five 3d orbitals in different configurations. (20 % )
splitting of...
Use the concepts of crystal field theory to predict the highest-energy orbital or group of orbitals among the five d orbitals when a transition metal ion is placed in the following type of ligand field environments (assuming conventional axes definition is used) Draw the geometry and draw the highest energy orbital (label: axis and orbital) to show how your came to your conclusion. Square planar: Trigonal bipyramidal:
Using the crystal field theory approach, draw the d-orbital splitting diagram for octahedral [Cu(OH2)6+, properly label each of the orbitals (i.e. dky etc.), and fill in the electrons. Show the changes in energy of all the d-orbitals under the influence of Jahn-Teller distortions resulting in both axial elongation and in axial compression (tetragonal distortions).
Using the crystal field theory approach, draw the d-orbital splitting diagram for octahedral [Cu(OH2)6+, properly label each of the orbitals (i.e. dky etc.), and fill in...
Crystal Field Question.
I understand that octahedral shapes have larger splitting energies
then in tetrahedral complexes. And it would take more energy to
split more electrons. So would the order be from Highest to Lowest:
B>A>C where A, B, C are the compounds listed in their
respective orders.
Between Ni(H20)s2+ ; Ni(en)32+; and lowest and why? Cu(CN)42- which has highest splitting and which has
Using the spectrochemical series, fill the electrons in the
correct crystal field diagram (shown below) for the following
complex. Is this complex high spin or low spin complex? Also
predict is the compound is paramagnetic or diamagnetic.
Spectrochemical Series I<Br<C1<F-<OH<H2O<NH3<en< NO2 <CN<CO [Co(en)3]3+ or dxz dyz dxy de dx²-y? d22 dx?-? dxz dyz dxy
