Two parallel plates are d=1.8 cm apart. You don't know the electric potential on the two...
Two parallel plates are d=1.8 cm apart. You don't know the electric potential on the two plates, but you know plate B is 620V higher than plate
A. You place a styrofoam ball with a net charge of -610 uC next to plate B then moved it to plate A.

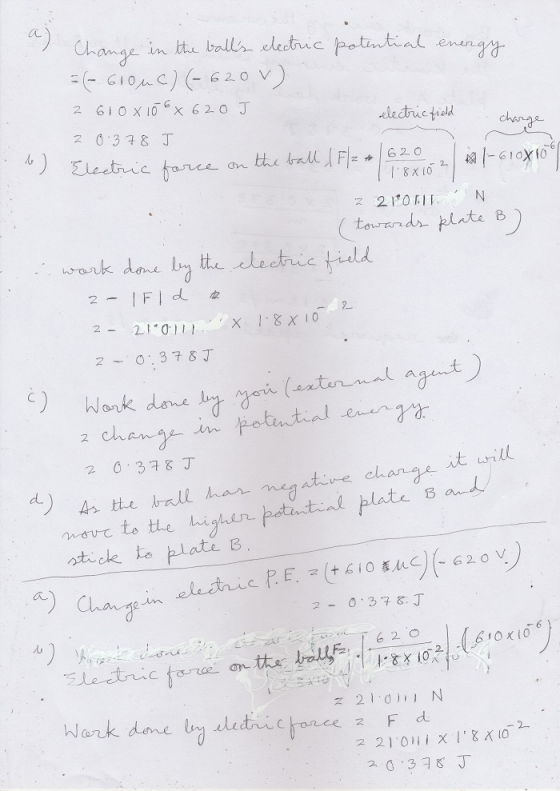

a) use the charge on the ball and the change in electric potential to calculate the change in the ball's electric potential.
b)calculate the electric force on the ball, then use it (and the distance) to determine the work done on it BY the electric field.
c) how much work did you do, assuming the ball started and ended at rest?
d) what would happen if you let go of the ball 1) it would stick to plate a 2) it would stick to plate b
You place a hair ball with a net charge of +610uC necxt to plate B and release it from rest
a)calculate the change in the balls electric potential energy by the time it reaches plate A
b) determine the work done on the ball as it moved from B to A

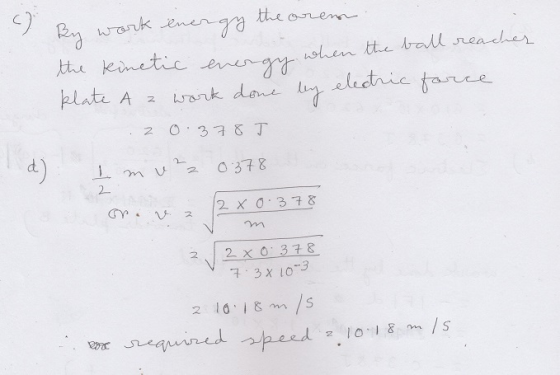

c)how much kinetic energy will the ball have when it reaches Plate A?
d) how fast will the 7.3g hair ball be moving when it reaches plate A?
Homework Answers
A problem of electric field
,force and wok doneAdd Answer to:
