A 1.9-µF capacitor is charged to a potential difference of 18.0 V and then connected across...

A 1.9-µF capacitor is charged to a potential difference of 18.0 V and then connected across a 0.39-mH inductor. What is the current in the circuit when the potential difference across the capacitor is 9.0 V? (Give the magnitude.)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

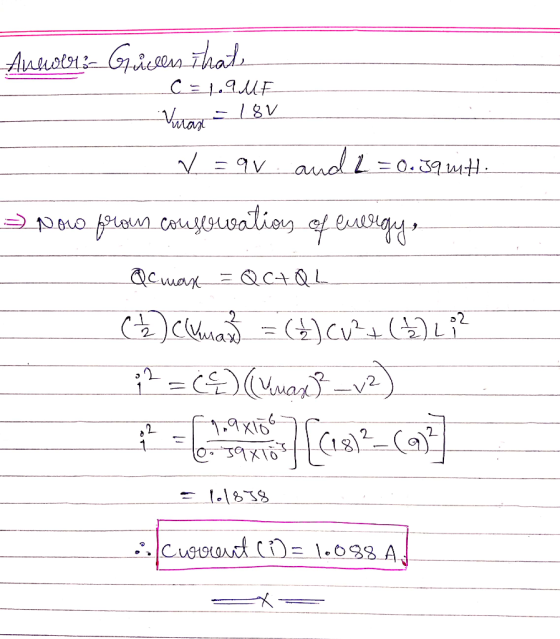

Answer #1

This may helps you.

Thank you .!?

0 0
Add a comment
Know the answer?
Add Answer to:
A 1.9-µF capacitor is charged to a potential difference of 18.0 V and then connected across...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 2.1-µF capacitor is charged to a potential difference of 16.0 V and then connected across...

    A 2.1-µF capacitor is charged to a potential difference of 16.0 V and then connected across a 0.44-mH inductor. What is the current in the circuit when the potential difference across the capacitor is 8.0 V? (Give the magnitude.) ____________ A

  • Ex: A 30-µF capacitor is charged to 80 V for a long time and removed from...

    Ex: A 30-µF capacitor is charged to 80 V for a long time and removed from the battery. The charged capacitor then connected across an initially uncharged capacitor of unknown capacitance C. If the final potential difference across the 30-µF capacitor is 20 V, determine C.

  • A 1.6 µF capacitor and a 4.9 µF capacitor are connected in parallel across a 450...

    A 1.6 µF capacitor and a 4.9 µF capacitor are connected in parallel across a 450 V potential difference. Calculate the total energy in joules stored in the capacitors.

  • Capacitors of 5.00 µF, 10.0 µF, and 50.0 µF are connected in series across a 12.0-V...

    Capacitors of 5.00 µF, 10.0 µF, and 50.0 µF are connected in series across a 12.0-V battery. What is the potential difference across the 10.0-µF capacitor?

  • 1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V...

    1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V (rms) source having variable frequency. If the operating frequency is twice the resonance frequency, find the energy delivered to the circuit during one period. 2. A 1.48-mF capacitor is connected to a North American electrical outlet (ΔVrms = 120 V, f = 60.0 Hz). Assuming the energy stored in the capacitor is zero at t = 0, determine the magnitude of the current in...

  • A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across...

    A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across a 100-V power source. What are the current in the circuit and the charge on the capacitor (a) after one time constant, and (b) when the capacitor has acquired 90 percent of its final charge? A- (a) 10.0 µA, 0.2 mC (b) 9.0 µA, 45.0 mC B- (a) 27.0 µA, 0.54 mC (b) 4.0 µA, 18.0 nC C-(a) 3.7 µA, 0.13 mC (b) 1.0...

  • #1A 41.2-µF capacitor is connected across a 55.8-Hz generator. An inductor is then connected in parallel...

    #1A 41.2-µF capacitor is connected across a 55.8-Hz generator. An inductor is then connected in parallel with the capacitor. What is the value of the inductance if the rms currents in the inductor and capacitor are equal? _____ mH #2 A 39.0-mH inductor has a reactance of 1.90 kΩ. What is the capacitance of a capacitor that has the same reactance at this frequency? ___F please help me and show me how to do the work correctly

  • A 25.0 μF capacitor is charged to a potential difference of 850 V . The terminals...

    A 25.0 μF capacitor is charged to a potential difference of 850 V . The terminals of the charged capacitor are then connected to those of an uncharged 11.0 μF capacitor. A) Compute the original charge of the system. B) Compute the final potential difference across capacitor. C) Compute the final energy of the system. D) Compute the decrease in energy when the capacitors are connected.

  • In the figure a potential difference of V = 120 V is applied across a capacitor...

    In the figure a potential difference of V = 120 V is applied across a capacitor arrangement with capacitances C1 = 12.3 µF, C2 = 7.39 µF, and C3 = 14.1 µF. What are (a) charge q3, (b) potential difference V3, and (c) stored energy U3 for capacitor 3, (d) q1, (e) V1, and (f) U1 for capacitor 1, and (g) q2, (h) V2, and (i) U2 for capacitor 2 C2 CL C3

  • A 25.0 μF capacitor is charged to a potential difference of 900 V . The terminals...

    A 25.0 μF capacitor is charged to a potential difference of 900 V . The terminals of the charged capacitor are then connected to those of an uncharged 8.00 μF capacitor. *Please write down all steps in your calculations, including a diagram. Please be sure to explain what happens to both the charge and the voltage when the capacitors are connected. A) Compute the original charge of the system. B) Compute the final potential difference across capacitor C) Compute the...
