Ex: A 30-µF capacitor is charged to 80 V for a long time and removed from...

Ex: A 30-µF capacitor is charged to 80 V for a long time and removed from the battery. The charged capacitor then connected across an initially uncharged capacitor of unknown capacitance C. If the final potential difference across the 30-µF capacitor is 20 V, determine C.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

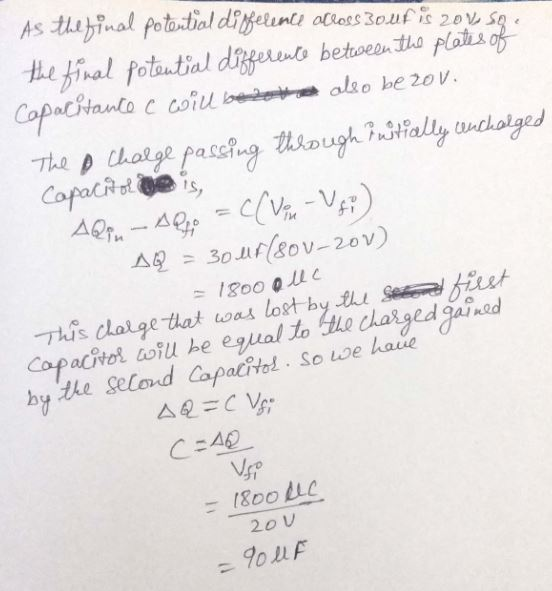

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
Ex: A 30-µF capacitor is charged to 80 V for a long time and removed from...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 110 pF capacitor is charged to a potential difference of 64 V, and the charging...

    A 110 pF capacitor is charged to a potential difference of 64 V, and the charging battery is disconnected. The capacitor is then connected in parallel with a second (initially uncharged) capacitor. If the measured potential difference across the first capacitor drops to 31 V, what is the capacitance of this second capacitor?

  • Please show all work. 4) A first capacitor having capacitance, C, is initially connected to battery...

    Please show all work. 4) A first capacitor having capacitance, C, is initially connected to battery having terminal voltage V as shown in the figure below. After static equilibrium is established, the charged capacitor is removed from the battery and connected to a second initially uncharged capacitor having capacitance C2. Determine an expression {C1, C2, V] for the final potential across the first capacitor long after the switch is closed. CI C2 C1

  • Question A 2 iF capacitor is charged to a poten- tial difference of 12 V. The...

    Question A 2 iF capacitor is charged to a poten- tial difference of 12 V. The wires connecting the capacitor to the battery are then discon- nected from the battery and connected across a second, initially uncharged, capacitor. The potential difference across the 2 uF capacitor then drops to 2 V What is the capacitance of the second ca- pacitor? Answer in units of uF. Submit answer Your response...

  • A 11.8 uF capacitor is fully charged across a 12.0 V battery. The capacitor is then...

    A 11.8 uF capacitor is fully charged across a 12.0 V battery. The capacitor is then disconnected from the battery and connected across an initially uncharged capacitor, C. The resulting voltage across each capacitor is 2.66 V. What is the capacitance C?

  • A 270 pF capacitor is charged to a potential difference of 120 V, and the charging...

    A 270 pF capacitor is charged to a potential difference of 120 V, and the charging battery is disconnected. The capacitor is then connected in parallel with a second (initially uncharged) capacitor. If the measured potential difference drops to 110 V, what is the capacitance of this second capacitor? (pF)

  • A capacitor of capacitance C1 = 5µF is charged to a potential difference of 100 V....

    A capacitor of capacitance C1 = 5µF is charged to a potential difference of 100 V. The terminals of the charged capacitorare then disconnected from the voltage source and connected to the terminals of an uncharged 2 µF capacitor (C2). (a) Compute the original charge on capacitor C1. (b) Compute the final potential difference across the two-capacitor system. (c) Compute the final energy of the system. (d) Compute the decrease in energy when the capacitors are connected.

  • A 2.1-µF capacitor is charged to a potential difference of 16.0 V and then connected across...

    A 2.1-µF capacitor is charged to a potential difference of 16.0 V and then connected across a 0.44-mH inductor. What is the current in the circuit when the potential difference across the capacitor is 8.0 V? (Give the magnitude.) ____________ A

  • A 1.9-µF capacitor is charged to a potential difference of 18.0 V and then connected across...

    A 1.9-µF capacitor is charged to a potential difference of 18.0 V and then connected across a 0.39-mH inductor. What is the current in the circuit when the potential difference across the capacitor is 9.0 V? (Give the magnitude.)

  • A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery...

    A 1.2 µF capacitor, initially uncharged, is connected in series to a 12 V ideal battery and a 5 kΩ resistor. (a) What is the charge on the capacitor after a very long time? ( b) Derive expressions describing the evolution of the electric charge and of the current in time (Q(t) and I(t)). (c) How long does it take the capacitor to reach 95% of its final charge?

  • A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...

    A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the...
