A platinum RTD sensor has a nominal resistance of 100 Ω at 0° and a TC...

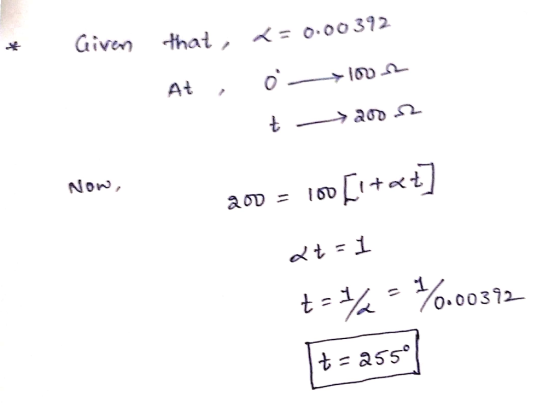

A platinum RTD sensor has a nominal resistance of 100 Ω at 0° and a TC factor of 0.00392 Ω/Ω/°C. Determine the temperature read by the sensor if the RTD resistance is 200 Ω.
Homework Answers
Add Answer to:
A platinum RTD sensor has a nominal resistance of 100 Ω at 0°
and a TC...
A platinum resistance thermometer has a resistance of 200 Ω when placed in an ice 0◦C...
A platinum resistance thermometer has a resistance of 200 Ω when placed in an ice 0◦C bath and 232.6 Ω when immersed in a crucible containing a melting substance. What is the melting point of the substance? The temperature coefficient of the platinum is 0.00392 (◦C)−1 . The resistor was calibrated at a temperature of 20◦C. Answer in units of ◦C.
A platinum resistance thermometer has a resistance of 200 Ω when placed in an ice 0◦C...
A platinum resistance thermometer has a resistance of 200 Ω when placed in an ice 0◦C bath and 204.7 Ω when immersed in a crucible containing a melting substance. What is the melting point of the substance? The temperature coefficient of the platinum is 0.00392 (◦C)−1 . The resistor was calibrated at a temperature of 20◦C. Answer in units of ◦C.
(20) A platinum temperature sensor operates over a broad temperature. Its resistance is related to the...
(20) A platinum temperature sensor operates over a broad temperature. Its resistance is related to the temperature by R Ro Gt+ C2t2, where t is temperature in C and R is in Ω. Suppose one platinum temperature sensor has a resistance of 100 Ω at a reference temperature 0 °C; its resistance is measured as 139.4 Ω at a temperature 1. at a temperature of 200 °C. (a) Find the values of coefficients Ro. C and C2
A platinum resistance thermometer has a re- sistance of 200 ohms. A platinum resistance thermometer has...
A platinum resistance thermometer has a re-
sistance of 200 ohms.
A platinum resistance thermometer has a resistance of 200 ohm when placed in an ice 0 degree C bath and 290.8 Ohm when immersed in a crucible containing a melting substance. What is the melting point of the substance? The temperature coefficient of the platinum is 0.00392 (degreeC)^-1 . The resistor was calibrated at a temperature of 20 degree C. Answer in units of degree C. A platinum resistance...
The resistance of a RTD, RT, at a given temperature T is given by the following equation
(a) The resistance of a RTD, RT, at a given temperature T is given by the following equation: RT = R0 (1 + αT) where R0 is the resistance of the RTD at the reference temperature 0°C, α is the temperature coefficient at 0 °C. It is found that the resistance of the RTD are 130 Ω and 150 Ω at 10°C and at 50°C respectively. Calculate: (i) the temperature coefficient a, and (ii) the resistance of the RTD at 0°C, R0.(b) The RTD in part...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is 0.2 ОЛ. Each arm of the bridge is initially 200 Ri R2 0) 14 13 R3 1s o O V-10 V Determine the bridge output for applied loads of 100, 200, and 350N. The bridge is operated as a deflection bridge, with an...
Temperature Measurement Chapter 4 IT02 Curriculum Manual Enter the total change in the resistance of the...
Temperature Measurement Chapter 4 IT02 Curriculum Manual Enter the total change in the resistance of the RTD Transducer over the 4.5a temperature range 20-50°C in 4.5b Is the resistance/temperature characteristic lincar? Yes or No 4.5e Enter your estimated (extrapolated) resistance of the RTD Transducer from the graph at 0°C. During the exercise, the current flowing was of the order of ImA. Since the applied voltage was +5V, the total circuit resistance was therefore of the order of Skn (which you...
The resistance of an RTD is measured with a DMM that produces an excitation current of...
The resistance of an RTD is measured with a DMM that produces an excitation current of 5mA. The measured resistance is 92.5Ω. Find the temperature of the RTD if it has the following parameters: R0 = 100Ω, T0 = 0°C, α0 = 0.00385 C-1. Also, find the power dissipated in the RTD during the measurement. What is the smallest value of dissipation constant such that the temperature measurement error due to self heating is less than 0.5°C?
A platinum wire with room-temperature resistance 56.0 Ω is used as a thermistor. If you want...
A platinum wire with room-temperature resistance 56.0 Ω is used as a thermistor. If you want to measure the temperature to within 0.4 ∘C in a range around room temperature, how precisely should the wire's resistance be measured?
Problem 3 For the given measurement system, which measures temperature using an RTD, of type PT100,...
Problem 3 For the given measurement system, which measures temperature using an RTD, of type PT100, that is 100 Ohms at 0 C. If R2-R3 1000 Ohms, R1 110, At what temperature the bridge will be balanced, knowing that RTD is approximated with the given 1. equation Rold(1+0.004(change in temperature)) Rew= 2. If the amplifier has a gain of 10; determine accepted RA values of Rf and Rin RS N If the output of the amplifire is limited from -2.5...
(20) A platinum temperature sensor operates over a broad temperature. Its resistance is related to the temperature by R Ro Gt+ C2t2, where t is temperature in C and R is in Ω. Suppose one platinum temperature sensor has a resistance of 100 Ω at a reference temperature 0 °C; its resistance is measured as 139.4 Ω at a temperature 1. at a temperature of 200 °C. (a) Find the values of coefficients Ro. C and C2
A platinum resistance thermometer has a re-
sistance of 200 ohms.
A platinum resistance thermometer has a resistance of 200 ohm when placed in an ice 0 degree C bath and 290.8 Ohm when immersed in a crucible containing a melting substance. What is the melting point of the substance? The temperature coefficient of the platinum is 0.00392 (degreeC)^-1 . The resistor was calibrated at a temperature of 20 degree C. Answer in units of degree C. A platinum resistance...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is 0.2 ОЛ. Each arm of the bridge is initially 200 Ri R2 0) 14 13 R3 1s o O V-10 V Determine the bridge output for applied loads of 100, 200, and 350N. The bridge is operated as a deflection bridge, with an...
Temperature Measurement Chapter 4 IT02 Curriculum Manual Enter the total change in the resistance of the RTD Transducer over the 4.5a temperature range 20-50°C in 4.5b Is the resistance/temperature characteristic lincar? Yes or No 4.5e Enter your estimated (extrapolated) resistance of the RTD Transducer from the graph at 0°C. During the exercise, the current flowing was of the order of ImA. Since the applied voltage was +5V, the total circuit resistance was therefore of the order of Skn (which you...
Problem 3 For the given measurement system, which measures temperature using an RTD, of type PT100, that is 100 Ohms at 0 C. If R2-R3 1000 Ohms, R1 110, At what temperature the bridge will be balanced, knowing that RTD is approximated with the given 1. equation Rold(1+0.004(change in temperature)) Rew= 2. If the amplifier has a gain of 10; determine accepted RA values of Rf and Rin RS N If the output of the amplifire is limited from -2.5...
