Question: A ladder of length L = 2.4 m and mass m = 19.0 kg rests...
Homework Answers
Part C

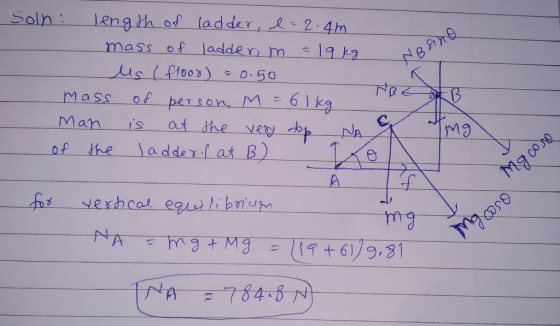

we will determine the forces involved, applying Newton's laws:
(1)
(2)
from equation 2 you get
where m has two contributions, the mass of the ladder and the mass of the person
Part D
From the previous equations we can determine that

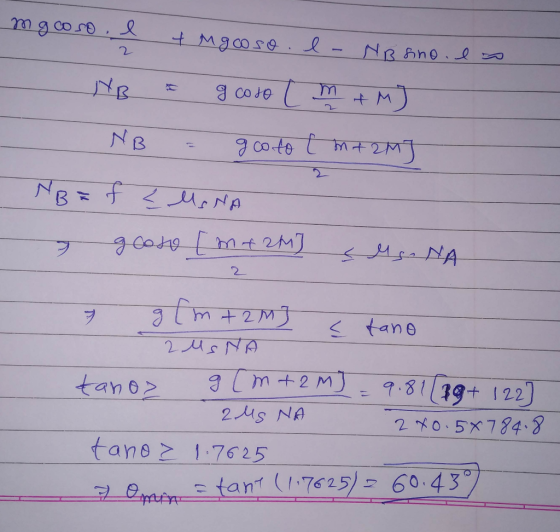

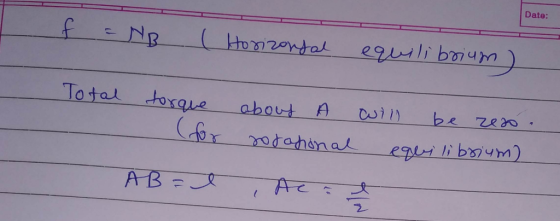

Now apply to the ladder the second condition for balance and consider the moments of torsion about an axis.
It can be seen that the minimum angle does not depend on the weight
