Simplify each of the functions Y = (M+N)(M’+P)(N’+P) Y = ((AB)’(CD+E’F)((AB)’+(CD)’))’ Convert each of the following...

Question

Question

Simplify each of the functions

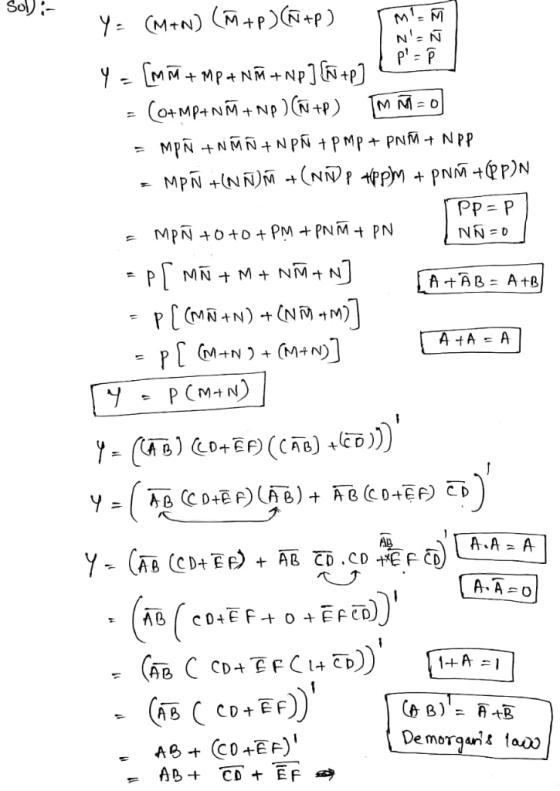

1. Y = (M+N)(M’+P)(N’+P)
2. Y = ((AB)’(CD+E’F)((AB)’+(CD)’))’
Convert each of the following to canonical sum-of-products and product-of-sum forms

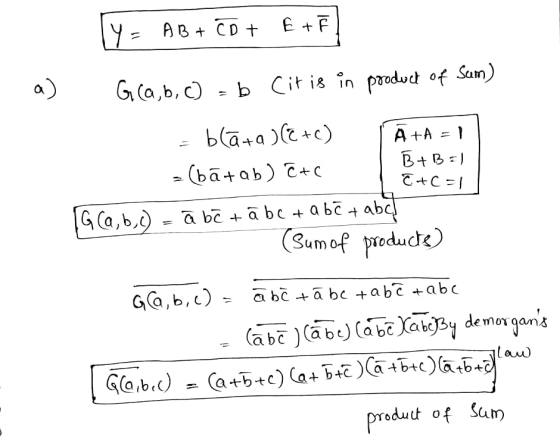

1. G(a,b,c) = b

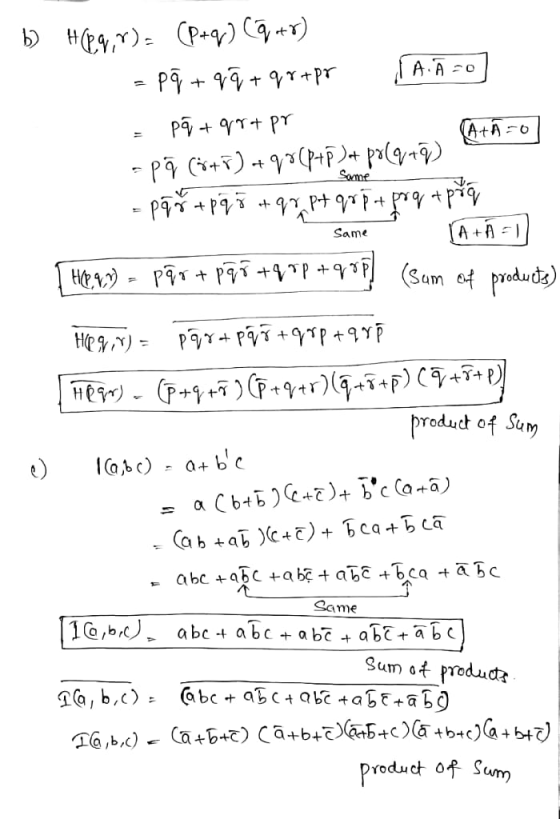

2. H(p,q,r) = (p + q)(q′ + r)
3. I(a, b, c) = a+b’c

engineering Electrical-Engineering

Answer 1

Answer #1

please give me rating...

Answer 2
