You want to photograph a circular diffraction pattern whose central maximum has a diameter of 0.90...

You want to photograph a circular diffraction pattern whose central maximum has a diameter of 0.90 cm . You have a helium-neon laser (λ=633nm) and a 0.16-mm-diameter pinhole. How far behind the pinhole should you place the viewing screen?

science physics

Add a comment Improve this question Transcribed image text

Answer 1

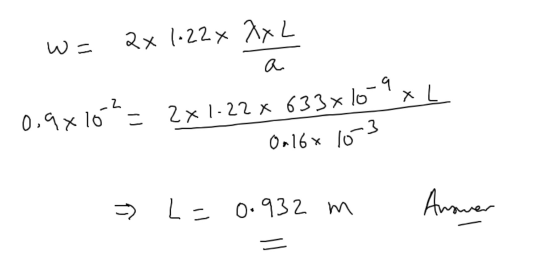

Answer #1

Add a comment

Answer 2
