Draw the expected pattern that results from passing a monochromatic lasers ("shape" of light on wall/screen)...
Draw the expected pattern that results from passing a monochromatic lasers ("shape" of light on wall/screen) and b) sketch the intensity vs. displacement graph.

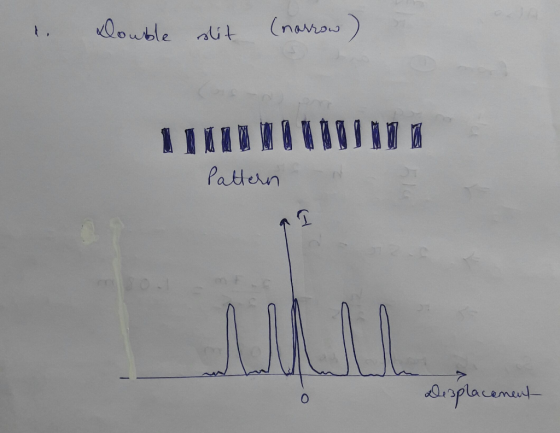

1. Double slit aperture (narrow slits)

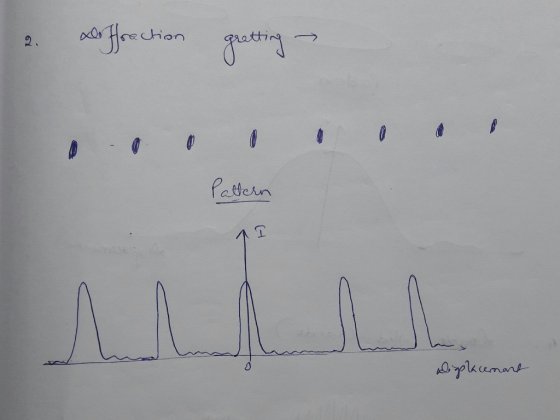

2. Multiple-slit aperture (diffraction grating)

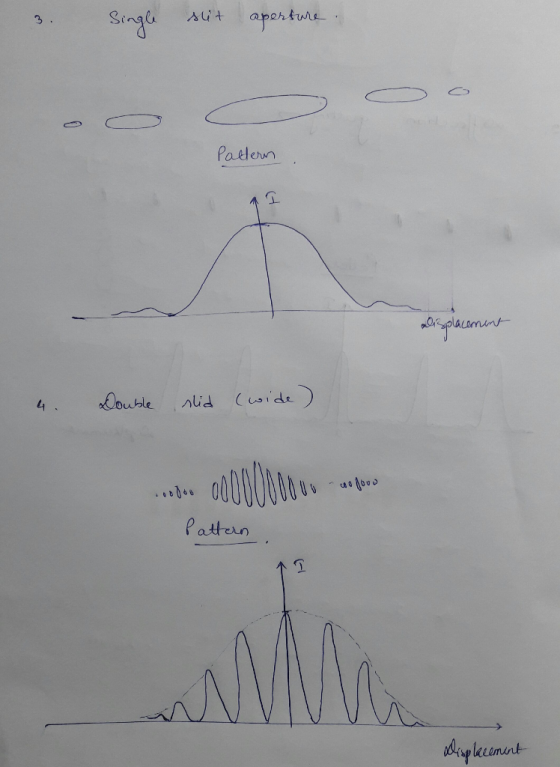

3. Single slit aperture
4. Double slit aperture (wider slits)
Homework Answers
Add Answer to:
Draw the expected pattern that results from passing a
monochromatic lasers ("shape" of light on wall/screen)...
1) The graph below shows the intensity of monochromatic light on a screen far away from...
1) The graph below shows the intensity of monochromatic light on a screen far away from a double slit. On the blank set of axes sketch the intensity of light if one of the slits is blocked. Assume the wavelength of the laser is 750 nm. 2) If the screen from problem 1) above is 1.5 meters away from double slit what is the distance between the two slits? 3) If the screen from problem 1) above is 3.0 meters...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...
Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...
A monochromatic light that passes through a Incident slit produces on a screen a diffraction patt...
Please solve and plot using MATLAB:
Please solve and plot with MATLAB: Thank you
A monochromatic light that passes through a Incident slit produces on a screen a diffraction pattern light consisting of bright and dark fringes. The intensity of the bright fringes, I, as a function of 0 can be calculated by: πα where a asin θ , λ is the light wave length, a is the width of the slits. Make a 3-D plot (shown) that shows the...
If the wall is 5 m from the source and the wavelength of the light is...
If the wall is 5 m from the source and the wavelength of the light is 650 nm, what is the distance between the slits? 32.500 nm 65,000 nm 130,000 nm 650 nm 2.600 nm Submit Request Answer You see this diffraction pattern on a wall. + 10 cm -> Part A What type of source created that pattern? A two-slit system A circular aperture A singe-slit system A diffraction grating
a) A beam of monochromatic light is incident on a single slit of width 0.600 mm....
a) A beam of monochromatic light is incident on a single slit of width 0.600 mm. A diffraction pattern forms on a wall 1.40 m beyond the slit. The distance between the positions of zero intensity on both sides of the central maximum is 1.90 mm. Calculate the wavelength (in nm) of the light. Round your answer to the nearest nm. b) The hydrogen spectrum includes a red line at 656 nm and a blue-violet line at 434 nm. If...
Physics - Single Slit Differaction Light from a distant point source is incident on a narrow...
Physics - Single Slit Differaction
Light from a distant point source is incident on a narrow slit. Each of the graphs below shows the intensity on a distant screen as a function of theta. The only difference among the six physical situations is the width of the slit. The horizontal scale is the same for all graphs. The vertical scale has been normalized so that the maximum intensity is the same for all cases. Rank the cases according to the...
A diffraction pattern is formed on a screen 130 cm away from a 0.420-mm-wide slit. Monochromatic...
A diffraction pattern is formed on a screen 130 cm away from a 0.420-mm-wide slit. Monochromatic 546.1-nm light is used. Calculate the fractional intensity I/Imax at a point on the screen 4.10 mm from the center of the principal maximum.
When monochromatic light passes through a narrow slit it produces on a screen a diffraction pattern...
When monochromatic light passes through a narrow slit it produces on a screen a diffraction pattern consisting of bright and dark fringes. The intensity of the bright fringes, I, as a function of can be calculated by: where Where is the light wave length and a is the width of the slit. Plot the relative intenstiy I / Imax as a function of for -20o <= <= 20o. Make one plot that contains three graphs for the cases a =...
1.) Which of the following statements is NOT true about a double-slit interference pattern? The bright...
1.) Which of the following statements is NOT true about a double-slit interference pattern? The bright fringes are longer than the dark fringes. Adjacent bright fringes have approximately equal brightness / intensity. The dark fringes are equally-spaced. The bright fringes are equally spaced. 2.) If you compare the single-slit pattern and the double-lit pattern, which of the following is correct? There are more bright fringes in the double-slit pattern compared to the single-slit pattern. There are more dark fringes in...
A diffraction pattern is produced on a screen 144 cm from a single slit, using monochromatic...
A diffraction pattern is produced on a screen 144 cm from a single slit, using monochromatic light of wavelength 520 nm. The distance from the center of the central maximum to the first-order maximum is 3.80 mm. Calculate the slit width. (Hint: Assume that the first-order maximum is halfway between the first- and second-order minima.) mm
1) The graph below shows the intensity of monochromatic light on a screen far away from a double slit. On the blank set of axes sketch the intensity of light if one of the slits is blocked. Assume the wavelength of the laser is 750 nm. 2) If the screen from problem 1) above is 1.5 meters away from double slit what is the distance between the two slits? 3) If the screen from problem 1) above is 3.0 meters...
Please solve and plot using MATLAB:
Please solve and plot with MATLAB: Thank you
A monochromatic light that passes through a Incident slit produces on a screen a diffraction pattern light consisting of bright and dark fringes. The intensity of the bright fringes, I, as a function of 0 can be calculated by: πα where a asin θ , λ is the light wave length, a is the width of the slits. Make a 3-D plot (shown) that shows the...
If the wall is 5 m from the source and the wavelength of the light is 650 nm, what is the distance between the slits? 32.500 nm 65,000 nm 130,000 nm 650 nm 2.600 nm Submit Request Answer You see this diffraction pattern on a wall. + 10 cm -> Part A What type of source created that pattern? A two-slit system A circular aperture A singe-slit system A diffraction grating
Physics - Single Slit Differaction
Light from a distant point source is incident on a narrow slit. Each of the graphs below shows the intensity on a distant screen as a function of theta. The only difference among the six physical situations is the width of the slit. The horizontal scale is the same for all graphs. The vertical scale has been normalized so that the maximum intensity is the same for all cases. Rank the cases according to the...
