An equal-tangent crest vertical curve was designed in 2012 (to 2011 AASHTO guidelines) for a design...

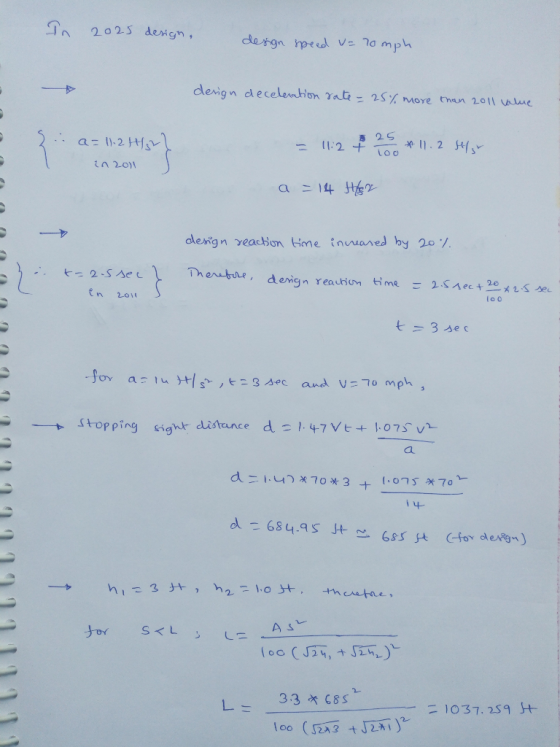

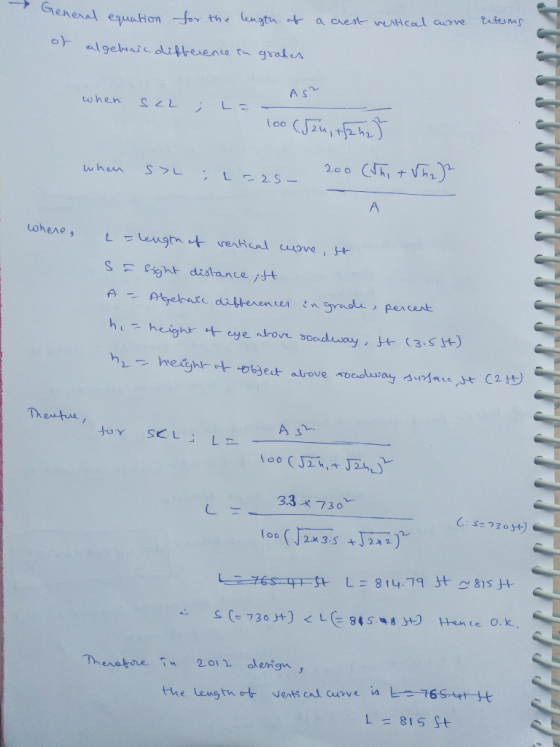

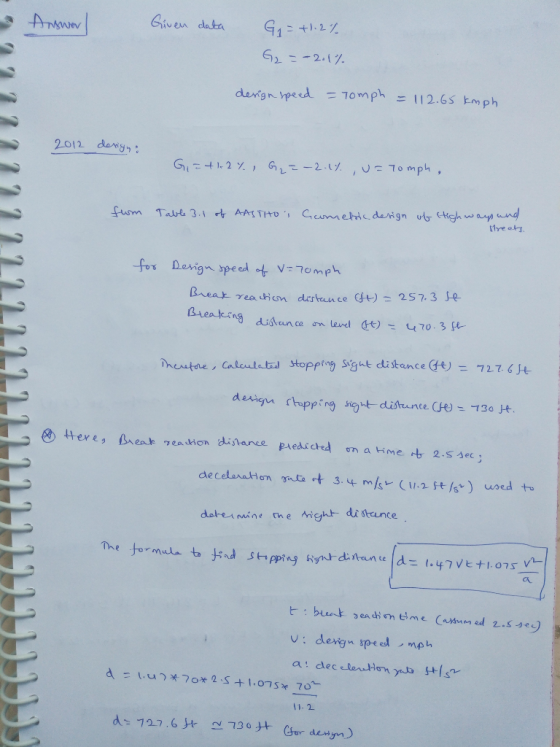

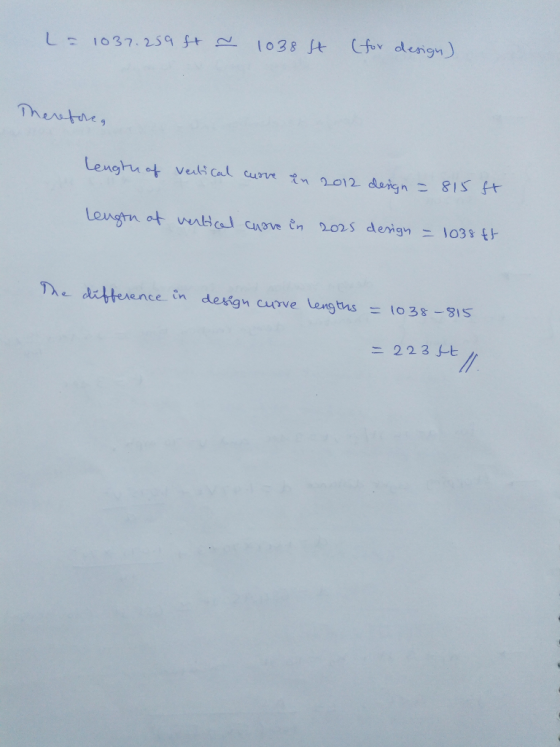

An equal-tangent crest vertical curve was designed in 2012 (to 2011 AASHTO guidelines) for a design speed of 70 mph to connect grades G1 = +1.2% and G2 = -2.1%. The curve is to be redesigned for a 70 mph design speed in the year 2025. Vehicle braking technology has advanced so that the recommended design deceleration rate is 25% greater than the 2011 value used in Table 3.1, but due to the higher percentage of older persons in the driving population, design reaction times have increased by 20%. Also, vehicles have become smaller so that the driver’s eye height is assumed to be 3.0 ft above the pavement and roadway objects are assumed to be 1.0 ft above the pavement surface. Compute the difference in design curve lengths for the 2012 and 2015 designs.
Homework Answers
please give thumbsupAdd Answer to:
An equal-tangent crest vertical curve was designed in 2012 (to
2011 AASHTO guidelines) for a design...
2. A crest vertical curve is to be designed by joining a +4% initial tangent with...
2. A crest vertical curve is to be designed by joining a +4% initial tangent with a final -3% tangent. The station location and elevation of VPC are 250+45 and 500 ft respectively. The design speed is 50 mph on the curve. Using AASHTO geometric design guideline, determine: (a) Station location of VPT. (b) Vertical offset at each 1/4 of length distance from VPC.
A sag curve and crest curve connect a –3.5% tangent section of highway (to the west)...
A sag curve and crest curve connect a –3.5% tangent section of highway (to the west) with a +2.5% tangent section of highway (to the east). The +2.5% tangent section is at a higher elevation than the –3.5% tangent section. The two tangent sections are separated by 1150 ft of horizontal distance. If the design speed of the curves is 50 mi/h, what is the common grade between the sag and crest curves (G2 of sag and G1 of crest,...
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a s...
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a section of a two-lane highway. Determine the minimum length of the curve if the design speed of the highway is 60 mph and SL. Assume that a-9.34 ftsec' and that the perception-reaction time is 2.5 sec. Problem2 A crest vertical curve is to be designed to join a +3% grade with a-2% grade at a section of a two-lane...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at ghost station 640+00 where elevation is 1325.000 ft. Determine the stationing and elevations of the following points. 1. PVC 2. PVT 3. High point 4. 640+20
An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0%...
An equal tangent crest vertical curve is designed for 60 mph. The initial grade is +4.0% and the final grade is negative. What is the elevation difference between the PVC and high point of the curve?
1) A crest vertical curve of a highway segment is designed to connect upgrades of 5...
1) A crest vertical curve of a highway segment is designed to connect upgrades of 5 percent while the downgrade on the other side is 3 percent. What’s the minimum length of the curve for adequate stopping sight distance if the stopping sight distance is 400 ft for the design speed is 45 mph and drives’ eye height is 3.5 ft and the object height 2.0 ft? A. 430 B. 493 C. 593 D. 530 2) What is the minimum...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
An equal-tangent crest vertical curve has a 50-mi/h design speed. The initial grade is +3%. The...
An equal-tangent crest vertical curve has a 50-mi/h design speed. The initial grade is +3%. The high point is at station 33 + 40.76 and the PVT is at station 37 + 24.66. What is the elevation difference between the high point and the PVT?
5. A crest vertical curve of a highway segment is designed to connect upgrades of 5...
5. A crest vertical curve of a highway segment is designed to connect upgrades of 5 percent while the downgrade on the other side is 3 percent. What's the minimum length of the curve for adequate stopping sight distance if the stopping sight distance is 400 ft for the design speed is 45 mph and drives' eye height is 3.5 ft and the object height 2.0 ft? A. 430 B. 493 C. 593 D. 530
Problem 01 (Similar to Book Problem 3-12) A horizontal curve has the following features: Existing horizontal...
Problem 01 (Similar to Book Problem 3-12) A horizontal curve has the following features: Existing horizontal curve radius: Existing superelevation: Posted speed limit: 900 ft 0.06 ft/ft 60 mph Given the noted existing features, answer the following: a) Is this a hazardous location? If so, why? (Answer: Yup, because the car will "fly" out of the curve.) Provide calculations to support your answer b) Noting that this is a hazardous curve, one option to address the situation is to change...
2. A crest vertical curve is to be designed by joining a +4% initial tangent with a final -3% tangent. The station location and elevation of VPC are 250+45 and 500 ft respectively. The design speed is 50 mph on the curve. Using AASHTO geometric design guideline, determine: (a) Station location of VPT. (b) Vertical offset at each 1/4 of length distance from VPC.
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a section of a two-lane highway. Determine the minimum length of the curve if the design speed of the highway is 60 mph and SL. Assume that a-9.34 ftsec' and that the perception-reaction time is 2.5 sec. Problem2 A crest vertical curve is to be designed to join a +3% grade with a-2% grade at a section of a two-lane...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
5. A crest vertical curve of a highway segment is designed to connect upgrades of 5 percent while the downgrade on the other side is 3 percent. What's the minimum length of the curve for adequate stopping sight distance if the stopping sight distance is 400 ft for the design speed is 45 mph and drives' eye height is 3.5 ft and the object height 2.0 ft? A. 430 B. 493 C. 593 D. 530
Problem 01 (Similar to Book Problem 3-12) A horizontal curve has the following features: Existing horizontal curve radius: Existing superelevation: Posted speed limit: 900 ft 0.06 ft/ft 60 mph Given the noted existing features, answer the following: a) Is this a hazardous location? If so, why? (Answer: Yup, because the car will "fly" out of the curve.) Provide calculations to support your answer b) Noting that this is a hazardous curve, one option to address the situation is to change...
