A square coil of area L^2 consists of N turns of wire carrying a current I....

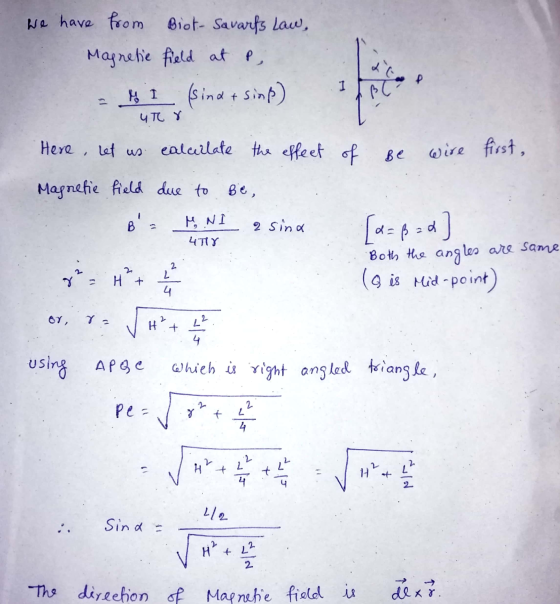

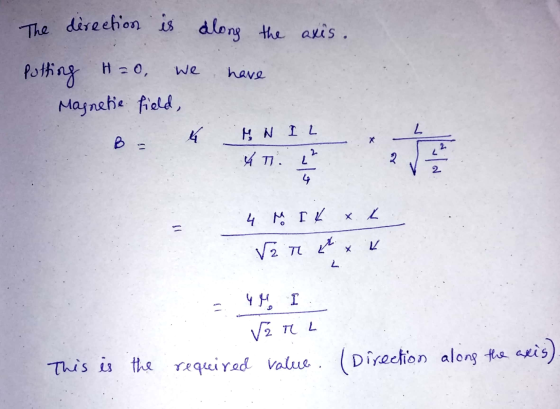

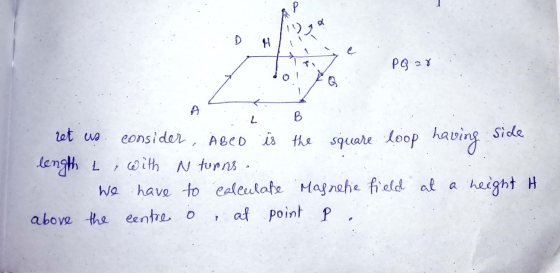

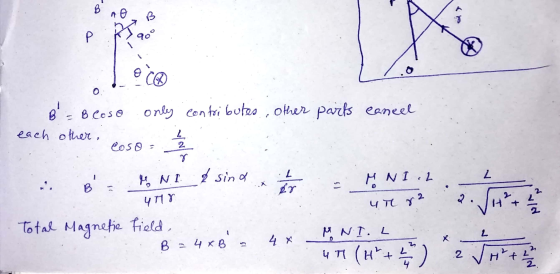

A square coil of area L^2 consists of N turns of wire carrying a current I. The coil lies in the horizontal (xy) plane with current moving clockwise around the coil when viewed from above. Find the magnitude and direction of B at a height H above the geometric center of the coil. Give these for the special case H=0.
