A 50 μF capacitor’s initial voltage is 20 V. At ? = 0, a 4.0 kΩ...

Question

Question

A 50 μF capacitor’s initial voltage is 20 V. At ? = 0, a 4.0 kΩ resistor is connected across it.

What is the charge on the capacitor at the instant when I = 2 mA?

science physics

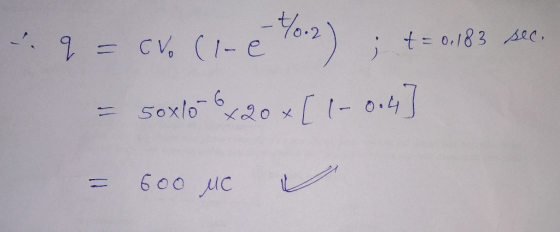

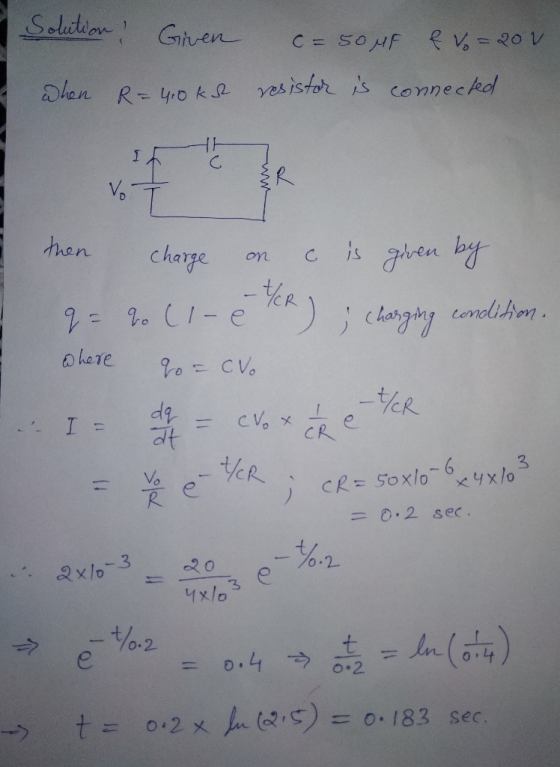

Answer 1

Answer #1

Answer 2
