Saturated water enters a boiler at 80 bar where it is heated at constant pressure to...

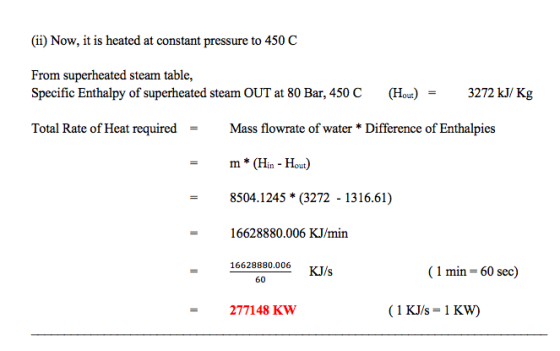

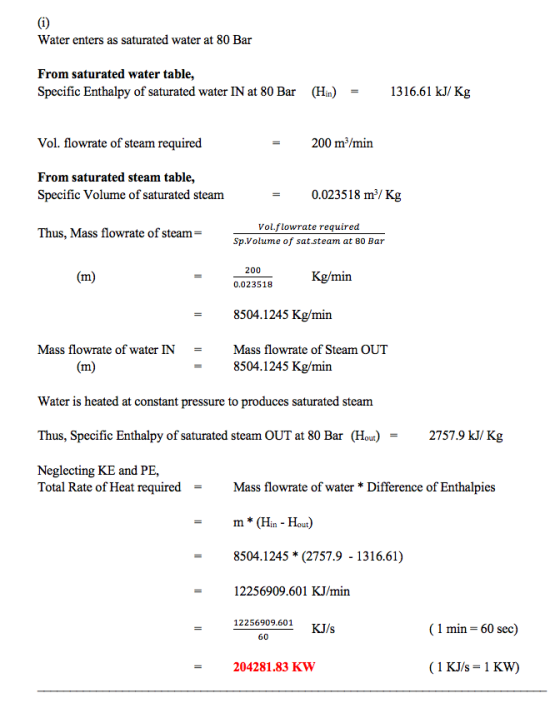

Saturated water enters a boiler at 80 bar where it is heated at constant pressure to produce saturated steam. Find the heating rate required to produce 200 m3/min of steam. Neglect kinetic and potential energy. Repeat, but suppose that the water is heated at constant pressure to produce superheated steam at 450 C.
Homework Answers
Add Answer to:
Saturated water enters a boiler at 80 bar where it is heated at
constant pressure to...
