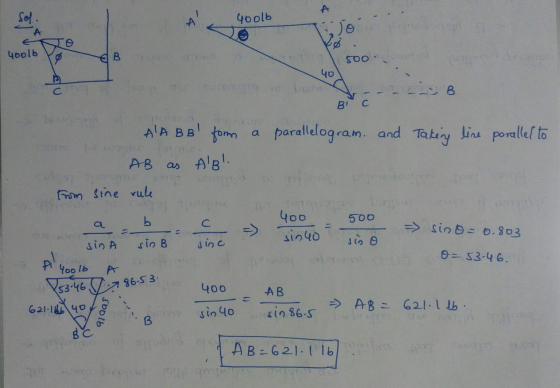

Determine the design angle θ (0o ≤ θ ≤ 90o ) for strut AB so that...
Determine the design angle θ (0o ≤ θ ≤ 90o
) for strut AB so that the 400-lb horizontal
force has a component of 500-lb directed from A towards C. What is
the component of
force acting along member AB? Take ø = 40°.
Homework Answers
Add Answer to:
Determine the design angle θ (0o ≤ θ ≤ 90o
) for strut AB so that...
n Review Part A Determine the design angle A (0° <A < 90°) for strut AB...
n Review Part A Determine the design angle A (0° <A < 90°) for strut AB so that the 400 lb horizontal force has a component of 485 lb directed from A towards C. Take o = 44. (Figure 1) Express your answer with the appropriate units. 0 = 57.4° Figure 1 of 1 Submit Previous Answers 400 lb to Correct B Part What is the component of force acting along member AB? Express your answer with the appropriate units....
2-15. Force F acts on the frame such that its component acting along member AB is...
2-15. Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A, and the component acting along member BC is 500Ib, directed from B towards C.Determine the magnitude of F and its direction . Seto 60°
Problem 1 -Addition of a System of Coplanar Forces (15 pts) Force F acts on the...
Problem 1 -Addition of a System of Coplanar Forces (15 pts) Force F acts on the frame such that its component acting along member AB is 600 Ib, directed from B towards A, and the component acting along member BC is 500 lb, directed from B towards C. Determine the magnitude of F and its direction &. Set60P
Two forces are applied at the end of a screw eye in order to remove the post. Determine the angle θ (0° ≤ θ ≤ 90°)
Two forces are applied at the end of a screw eye in order to remove the post. Determine the angle θ (0° ≤ θ ≤ 90°) and the magnitude of the force F so that the resultant force acting on the post is directed vertically upward and has a magnitude of 750N.
2-1. If θ= 30° and T = 6kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis.
2-1. If θ= 30° and T = 6kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis. 2-2. If θ = 60° and T = 5 kN, determine the magnitude of the resultant force acting on the eyebolt and its direction measured clockwise from the positive x axis. 2-3. If the magnitude of the resultant force is to be 9 kN directed along the positive x axis, determine the magnitude...
Determine the angles θ and φ so that the resultant force is directed along the positive...
Determine the angles θ and φ so that the resultant force is directed along the positive x axis and has a magnitude -20 N. J0 N 30 N
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point...
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point B towards point C. (a) Determine the angle that exists between B (1,5,6) m the force vector F and the pole AB (b) Determine the magnitude of the component of the force vector F that acts parallel to the pole AB (c) Determine the magnitude of the component of the force vector that acts perpendicular to the pole AbB C (4, 3, 0) m...
Part A Determine the angle of 0 for connecting member A to the plate so that...
Part A Determine the angle of 0 for connecting member A to the plate so that the resultant force of FA and Fa is directed horizontally to the right.(Figure 1 Express your answer with the appropriate units. | Value Units Submit Request Answer Part B Also, what is the magnitude of the resultant force? Express your answer with the appropriate units. Figure 1 of 1 FRValue Units Submit Request Answer Provide Feedback Next > 40 Fs-6kN
A force F⃗ of magnitude F making an angle θ with the x axis is applied...
A force F⃗ of magnitude F making an angle θ with the x axis is
applied to a particle located along axis of rotation A, at
Cartesian coordinates (0,0) in the figure. The vector F⃗ lies in
the xy plane, and the four axes of rotation A, B, C, and D all lie
perpendicular to the xy plane.
A particle is located at a vector position r⃗ r→r_vec with
respect to an axis of rotation (thus r⃗ r→r_vec points from...
please help solve for what is asked in orobkems A-H and the free body diagrams as...
please help solve for what is asked in orobkems A-H and the
free body diagrams as well. Will upvote if correct
A
B
C
D
E
F
G
H
B 4 m 6 m 3 m 12 m 2 m F=80 N Determine the projected component of the force acting along the axis AB of the pipe. 60° A The 30kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium....
n Review Part A Determine the design angle A (0° <A < 90°) for strut AB so that the 400 lb horizontal force has a component of 485 lb directed from A towards C. Take o = 44. (Figure 1) Express your answer with the appropriate units. 0 = 57.4° Figure 1 of 1 Submit Previous Answers 400 lb to Correct B Part What is the component of force acting along member AB? Express your answer with the appropriate units....
2-15. Force F acts on the frame such that its component acting along member AB is 650 lb, directed from B towards A, and the component acting along member BC is 500Ib, directed from B towards C.Determine the magnitude of F and its direction . Seto 60°
Problem 1 -Addition of a System of Coplanar Forces (15 pts) Force F acts on the frame such that its component acting along member AB is 600 Ib, directed from B towards A, and the component acting along member BC is 500 lb, directed from B towards C. Determine the magnitude of F and its direction &. Set60P
Determine the angles θ and φ so that the resultant force is directed along the positive x axis and has a magnitude -20 N. J0 N 30 N
The inclined pole is subjected to a 5 kN magnitude force vector F acting from point B towards point C. (a) Determine the angle that exists between B (1,5,6) m the force vector F and the pole AB (b) Determine the magnitude of the component of the force vector F that acts parallel to the pole AB (c) Determine the magnitude of the component of the force vector that acts perpendicular to the pole AbB C (4, 3, 0) m...
Part A Determine the angle of 0 for connecting member A to the plate so that the resultant force of FA and Fa is directed horizontally to the right.(Figure 1 Express your answer with the appropriate units. | Value Units Submit Request Answer Part B Also, what is the magnitude of the resultant force? Express your answer with the appropriate units. Figure 1 of 1 FRValue Units Submit Request Answer Provide Feedback Next > 40 Fs-6kN
A force F⃗ of magnitude F making an angle θ with the x axis is
applied to a particle located along axis of rotation A, at
Cartesian coordinates (0,0) in the figure. The vector F⃗ lies in
the xy plane, and the four axes of rotation A, B, C, and D all lie
perpendicular to the xy plane.
A particle is located at a vector position r⃗ r→r_vec with
respect to an axis of rotation (thus r⃗ r→r_vec points from...
please help solve for what is asked in orobkems A-H and the
free body diagrams as well. Will upvote if correct
A
B
C
D
E
F
G
H
B 4 m 6 m 3 m 12 m 2 m F=80 N Determine the projected component of the force acting along the axis AB of the pipe. 60° A The 30kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium....
