A steel pipe (AISI 1010) carries a water stream of temperature T_w = 4 C. It...

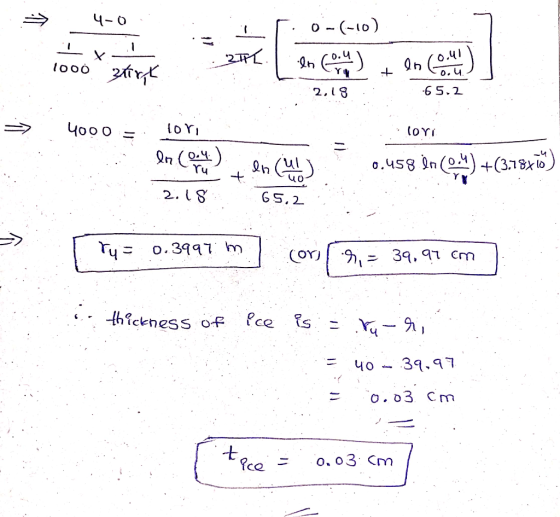

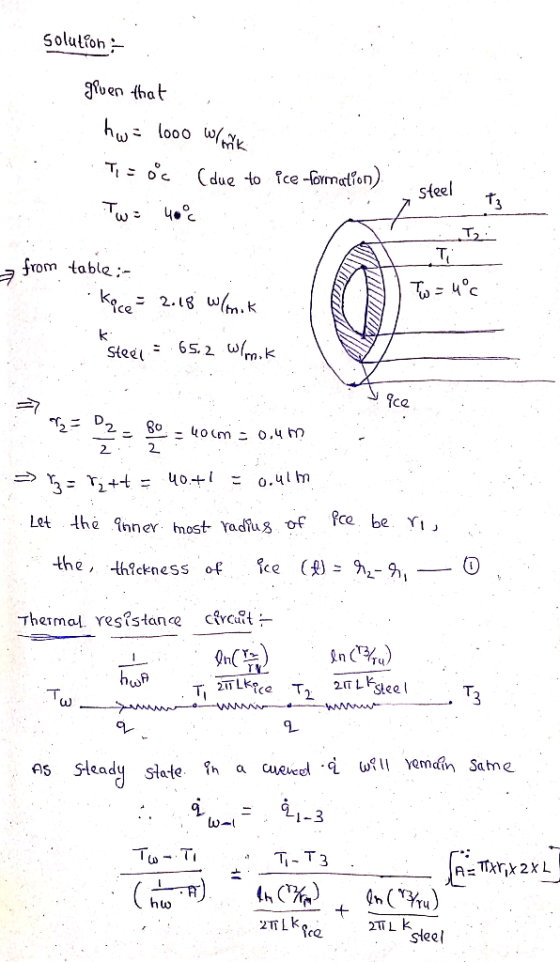

A steel pipe (AISI 1010) carries a water stream of temperature T_w = 4 C. It functions in a cold climate, the effect of which is to lower the outer pipe wall temperature to T_s,o = ?10 C. A cylindrical sheet of ice builds on the inside of the pipe. The inner diameter of the pipe is D_i = 80cm, the wall thickness of the pipe is t = 1cm and the convective heat transfer coefficient at the inner surface of the ice layer is h = 1000 W/m^2K. Calculate the thickness of the ice layer.
Clear handwriting, no typing! Only do it if you know it or let someone else do it. Show all steps!
Homework Answers
Add Answer to:
A steel pipe (AISI 1010) carries a water stream of temperature
T_w = 4 C. It...
Consider a pipe consisting of two layers: Consider a pipe consisting of two layers: • an...
Consider a pipe consisting of two layers:
Consider a pipe consisting of two layers: • an inner layer of AISI 1010 steel with thickness 2 cm, and • an outer layer of insulation (k = 0.034 W/(m · K)) with thickness 4 cm The pipe's contents keep the inner surface at a constant temperature of 120 °C, while the outside experiences convection with overall convection coefficient h 30 W/(m²K) to the surroundings at T = 25°C. The pipe's inner diameter...
Help mee!! Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe...
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air for which T-30°C, F-1 atm , and V-25 m/s . The pipe, which is made of PVC, experiences cross-flow conditions in the moving air 1) The temperature at the inner surface of the pipe is maintained at 90°C. The outer surface of the pipe is smooth. Also, assume that steady-state conditions exist. Since the outer...
1. A ¾ inch (nominal), Schedule 40, mild steel pipe carries 40 psia steam through a...
1. A ¾ inch (nominal), Schedule 40, mild steel pipe carries 40 psia steam through a room having an air temperature of 80°F. The pipe is covered with a 0.125 ft thick layer of fiberglass insulation having a thermal conductivity of 0.037 Btu/(h ft ‘F). The hi value on the steam side of the pipe is 1000 Btu/h ft2 °F. The ho value on the outside of the insulation is 2.0 Btu/(h ft2 ’F). For the mild steel, k=26Btu/(ft H...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer coefficient of h 150 W/m2-K at Ti- 100 °C. The steel pipe goes through the roof of a factory where the ambient temperature is 23°C (To), with a natural heat convection coefficient of 5 W/m2-K. The inner and outer diameters of the steel pipe are 2 cm and 2.2 cm, respectively, and thermal conductivity of the steep pipe is k, -20 W/m-K To prevent...
Two-pipe concentric concentric) for cooling the engine oil with the help of a water stream in...
Two-pipe concentric concentric) for cooling the engine oil with the help of a water stream in a large diesel engine a reverse (opposite) flow heat exchanger is used. Water at a flow rate of 0.3 kg/h from inside pipe with an inside diameter of 56 mm It flows. The inner pipe is made of stainless steel with a heat transmission coefficient of 16 W/mc and is meat (wall its thickness is 3 mm. Apart from this there is another pipe...
Hot CO2 gas at a temperature T-1 = 250°C is flowing through a steel pipe (kı...
Hot CO2 gas at a temperature T-1 = 250°C is flowing through a steel pipe (kı = 70 W/(m.K)) whose inner and outer radiuses are 12 cm and 14 cm, respectively, in a cold environment at Tm2 = -10°C. As shown in the figure below, the steel pipe is insulated with 7.0 cm thick spray-foam insulation (k2 = 0.03 W/(m.K)) and 5.0 cm thick glassfiber insulation (k3 = 0.05 W/(m.K)). Consider the heat transfer coefficients of CO2 gas and the...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY. A hollow aluminum sphere, with...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY.
A hollow aluminum sphere, with an electrical heater in the center, is used in tests to determine the thermal conductivity of insulating materials. The inner and outer radii of the sphere are 0.15 and 0.18 m, respectively, and testing is done under steady-state conditions with the inner surface of the aluminum maintained at 250°C. In a particular test, a spherical shell of insulation is cast on the outer surface...
Consider a pipe consisting of two layers:
Consider a pipe consisting of two layers: • an inner layer of AISI 1010 steel with thickness 2 cm, and • an outer layer of insulation (k = 0.034 W/(m · K)) with thickness 4 cm The pipe's contents keep the inner surface at a constant temperature of 120 °C, while the outside experiences convection with overall convection coefficient h 30 W/(m²K) to the surroundings at T = 25°C. The pipe's inner diameter...
Help mee!!
Q1. Heat conduction & convection (38 pt). Hot water flows in a steel pipe of 0.1 m inside diameter at a flow rate of 0.2 m/h and at an average temperature of 70 °C. The pipe length is 2.5 m and the inside pipe wall temperature is 60 °C Assume that the pipe thickness is small and the steel heat conductivity is high enough so that the thermal resistance of the pipe wall is negligible. Calculate: (a) The...
A circular pipe, with an outside diameter of 30 mm and a wall thickness of 4 mm, is held stationary in a stream of air for which T-30°C, F-1 atm , and V-25 m/s . The pipe, which is made of PVC, experiences cross-flow conditions in the moving air 1) The temperature at the inner surface of the pipe is maintained at 90°C. The outer surface of the pipe is smooth. Also, assume that steady-state conditions exist. Since the outer...
HW3.3. A cylindrical steel pipe is used to carry water steam with an averaged heat transfer coefficient of h 150 W/m2-K at Ti- 100 °C. The steel pipe goes through the roof of a factory where the ambient temperature is 23°C (To), with a natural heat convection coefficient of 5 W/m2-K. The inner and outer diameters of the steel pipe are 2 cm and 2.2 cm, respectively, and thermal conductivity of the steep pipe is k, -20 W/m-K To prevent...
Two-pipe concentric concentric) for cooling the engine oil with the help of a water stream in a large diesel engine a reverse (opposite) flow heat exchanger is used. Water at a flow rate of 0.3 kg/h from inside pipe with an inside diameter of 56 mm It flows. The inner pipe is made of stainless steel with a heat transmission coefficient of 16 W/mc and is meat (wall its thickness is 3 mm. Apart from this there is another pipe...
Hot CO2 gas at a temperature T-1 = 250°C is flowing through a steel pipe (kı = 70 W/(m.K)) whose inner and outer radiuses are 12 cm and 14 cm, respectively, in a cold environment at Tm2 = -10°C. As shown in the figure below, the steel pipe is insulated with 7.0 cm thick spray-foam insulation (k2 = 0.03 W/(m.K)) and 5.0 cm thick glassfiber insulation (k3 = 0.05 W/(m.K)). Consider the heat transfer coefficients of CO2 gas and the...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
IF YOU CANNOT SOLVE THEM ALL THEN PLEASE DONT SOLVE ANY.
A hollow aluminum sphere, with an electrical heater in the center, is used in tests to determine the thermal conductivity of insulating materials. The inner and outer radii of the sphere are 0.15 and 0.18 m, respectively, and testing is done under steady-state conditions with the inner surface of the aluminum maintained at 250°C. In a particular test, a spherical shell of insulation is cast on the outer surface...
