A switch is connected to a 6.0V battery, 92 ohm resistors and 28 micro faraday capacitor...

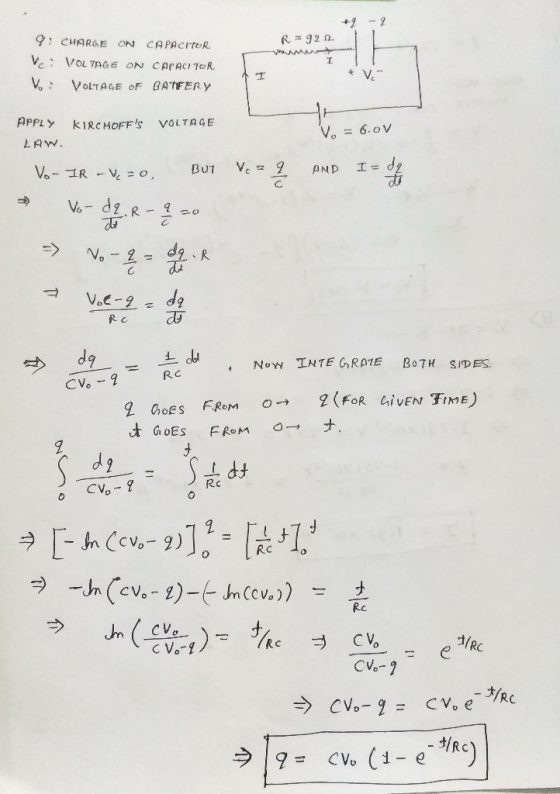

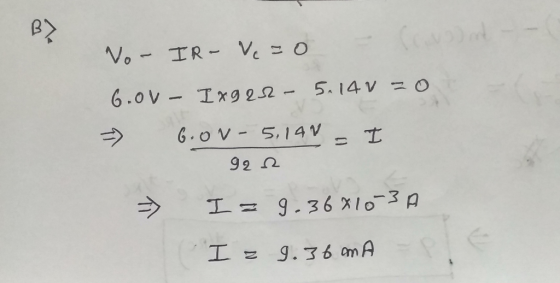

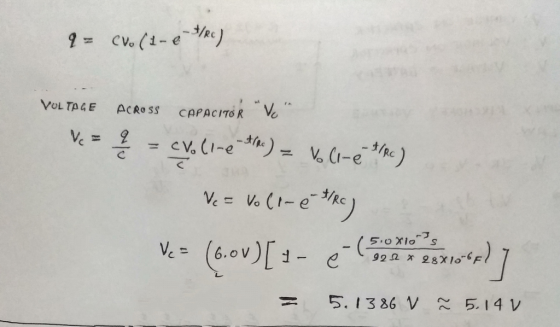

A switch is connected to a 6.0V battery, 92 ohm resistors and 28 micro faraday capacitor all in series and the switch is closed at t=0. The capacitor is initially uncharged at t=0s right before the switch is closed. A) How much voltage across the capacitor at 5.0ms? B) what is the current in the capacitor at 5.0ms. Please show all steps!
Homework Answers
