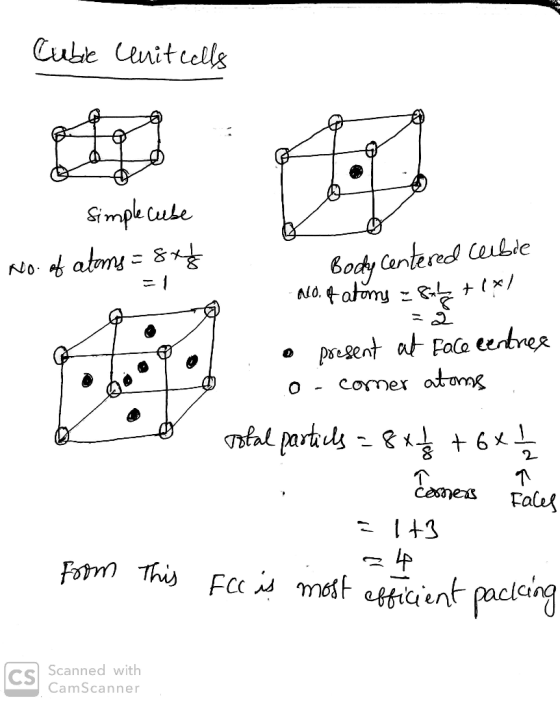

1- a. Draw 3 types of simple cubic cells, explain each drawing. Which is most efficient?...
1- a. Draw 3 types of simple cubic cells, explain each drawing. Which is most efficient? How many
atoms are in each unit cell?

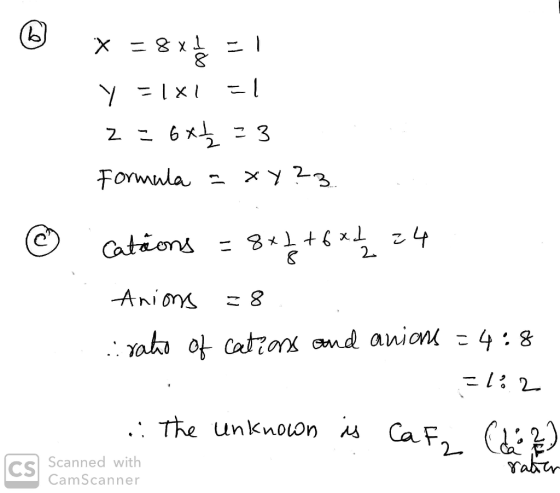

b. A cubic cell has X ions in a simple cubic arrangement, a Y ion in the center of the cell and Z ions
on each face? What is the formula of the compound?
c. An unknown is suspected to be either calcium fluoride or sodium fluoride. X-Ray crystallography
shows that the cubic cell consists of cations in a face centered cubic arrangement with 8 anions
completely enclosed in the cell. What is the unknown?
Homework Answers
Add Answer to:
1- a. Draw 3 types of simple cubic cells, explain each drawing.
Which is most efficient?...
Calcium Fluoride Determine the number of calcium ions per unit cell. Determine the number of fluoride...
Calcium Fluoride Determine the number of calcium ions per unit cell. Determine the number of fluoride ions per unit cell. What is the empirical formula of calcium fluoride based on the relative number of each ion in the unit cells? Is the empirical formula determined from the lattice structure in agreement with the one predicted by the typical ion charges? Are the anions or cations arranged in one of the basic cubic unit cells (simple, body-centered, face-centered)?
Lead (II) fluoride, PbF2, crystallizes in a cubic unit cell in which the lead ions occupy...
Lead (II) fluoride, PbF2, crystallizes in a cubic unit cell in which the lead ions occupy a face-centered cubic arrangement in the unit cell, and the fluoride ions are located in certain spaces between the lead ions. How many of each ion are contained within a single unit cell? # of Pb2+ ions = ? # of F– ions =?
Post-lab question Part A 1. Metallic sodium forms a body centered cubic crystal. Why would the...
Post-lab question Part A 1. Metallic sodium forms a body centered cubic crystal. Why would the water displacement method used in part A not be suitable to determine the density of sodium? (Hint: watch the following video to help you answer this question: https://www.youtube.com/watch?v=18tOtZKpi04) 2. Calculate the density of sodium. (The radius of a sodium atom is 186pm) Post-lab Question Part B: Consider cubic array iodide ions (r =220pm) in which the anions are touching along the face of the...
Use the space-filling models of the three cubic unit cells, to complete the table below. 1/8...
Use the space-filling models of the three cubic unit cells, to complete the table below. 1/8 atom at 1/8 atom at 1 atom 8 corners 8 corners at center 1/2 atom at 6 corners 1/8 atom at 8 corners simple body-centered face-centered number atoms per unit cell coordination # What is the net number of sodium ions and chloride ions in a sodium chloride unit cell?! Differentiate between hexagonal closest packing and cubic closest packing.
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the t...
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the three tvpes of cubic unit cells, giving in addition for each case: a. The net number of atoms contained within a unit cell: b. The total number of different atoms that contribute to the volume of this type of unit cell 6 Cubic Type: Net # Atom/Unit Cell # of Diff. Atorns/Unit Cell U.C.L Packing EfficiencyPacking Efficiency Cubic Type: Net #Atom/Unit Cell-A-_ # of Diff....
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the three...
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the three tvpes of cubic unit cells, giving in addition for each case: a. The net number of atoms contained within a unit cell: b. The total number of different atoms that contribute to the volume of this type of unit cell 6 Cubic Type: Net # Atom/Unit Cell # of Diff. Atorns/Unit Cell U.C.L Packing EfficiencyPacking Efficiency Cubic Type: Net #Atom/Unit Cell-A-_ # of Diff....
Q. 3. Potassium fluoride adopts the rock salt (NaCl type) structure, with a density of 2.48...
Q. 3. Potassium fluoride adopts the rock salt (NaCl type) structure, with a density of 2.48 g/cm3. Using the data for the Part 4 model you constructed, calculate the expected distance between the center of the potassium ion and the center of an adjacent fluoride ion in pm. Q. 4. The diameter of a Cs+ ion is 334 pm; the diameter of a Br- ion is 392 pm. For CsBr, which crystallizes in the CsCl type structure from Part 5,...
An ionic molecular solid AX has a molecular weight 250 g/mol is face centered cubic with...
An ionic molecular solid AX has a molecular weight 250 g/mol is face centered cubic with regard to the anions, X, which have a radius of 300 pm. The cations, A+, have radius 200 pm and are found octahedral interstitial spaces. The edge of each unit cell is as long as the diameter of 1 cation and 1 anion. How many of each ion exists in the unit cell? What is the density of the unit cell? How many atoms...
please i need help with all questions 5. List the following cubic packing structures from least (1) to most (3) eff...
please i need help with all questions
5. List the following cubic packing structures from least (1) to most (3) efficient structures (in terms of "packing efficiency"; be sure you can also sketch out the face and packing of these cubic structures, as well as calculate the packing efficiency of each one yourself. Do not simply memorize the packing efficiency values!) a. Simple Cubic b. Body-centered cubic c. Face-centered cubic 6. Calculate the mass of a single unit cell of...
question 1 2 3 4 5 6 7 8 t). Và - H đi, dt 3H8...
question 1 2 3 4 5 6 7 8
t). Và - H đi, dt 3H8 2009/01/06 Name: Student ID: (1) Write down the formula for the relationship between an atom's radius "r" und unit cell length "a" in (a) simple cubic (b) bodysentered cubic, and (c) face-centered cubie (9%) 11,67 ) (2) LiBr has a density of 3.464 g/em, rock salt structure, shown in Figure 1. The atomic weight of Li 6,941 and Br 79.904. Calculate (a) the molar...
Post-lab question Part A 1. Metallic sodium forms a body centered cubic crystal. Why would the water displacement method used in part A not be suitable to determine the density of sodium? (Hint: watch the following video to help you answer this question: https://www.youtube.com/watch?v=18tOtZKpi04) 2. Calculate the density of sodium. (The radius of a sodium atom is 186pm) Post-lab Question Part B: Consider cubic array iodide ions (r =220pm) in which the anions are touching along the face of the...
Use the space-filling models of the three cubic unit cells, to complete the table below. 1/8 atom at 1/8 atom at 1 atom 8 corners 8 corners at center 1/2 atom at 6 corners 1/8 atom at 8 corners simple body-centered face-centered number atoms per unit cell coordination # What is the net number of sodium ions and chloride ions in a sodium chloride unit cell?! Differentiate between hexagonal closest packing and cubic closest packing.
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the three tvpes of cubic unit cells, giving in addition for each case: a. The net number of atoms contained within a unit cell: b. The total number of different atoms that contribute to the volume of this type of unit cell 6 Cubic Type: Net # Atom/Unit Cell # of Diff. Atorns/Unit Cell U.C.L Packing EfficiencyPacking Efficiency Cubic Type: Net #Atom/Unit Cell-A-_ # of Diff....
CHIM 2045-Other Toolbox #3: Student Name: Solids- Cubic Unit Cell Type Problems Sect. Date: the three tvpes of cubic unit cells, giving in addition for each case: a. The net number of atoms contained within a unit cell: b. The total number of different atoms that contribute to the volume of this type of unit cell 6 Cubic Type: Net # Atom/Unit Cell # of Diff. Atorns/Unit Cell U.C.L Packing EfficiencyPacking Efficiency Cubic Type: Net #Atom/Unit Cell-A-_ # of Diff....
An ionic molecular solid AX has a molecular weight 250 g/mol is face centered cubic with regard to the anions, X, which have a radius of 300 pm. The cations, A+, have radius 200 pm and are found octahedral interstitial spaces. The edge of each unit cell is as long as the diameter of 1 cation and 1 anion. How many of each ion exists in the unit cell? What is the density of the unit cell? How many atoms...
please i need help with all questions
5. List the following cubic packing structures from least (1) to most (3) efficient structures (in terms of "packing efficiency"; be sure you can also sketch out the face and packing of these cubic structures, as well as calculate the packing efficiency of each one yourself. Do not simply memorize the packing efficiency values!) a. Simple Cubic b. Body-centered cubic c. Face-centered cubic 6. Calculate the mass of a single unit cell of...
question 1 2 3 4 5 6 7 8
t). Và - H đi, dt 3H8 2009/01/06 Name: Student ID: (1) Write down the formula for the relationship between an atom's radius "r" und unit cell length "a" in (a) simple cubic (b) bodysentered cubic, and (c) face-centered cubie (9%) 11,67 ) (2) LiBr has a density of 3.464 g/em, rock salt structure, shown in Figure 1. The atomic weight of Li 6,941 and Br 79.904. Calculate (a) the molar...
