Question

C++ Format

You are to write a program which is going to use inheritance. It should start off with the base classes

Account: contains the string name, int accountnumber, double balance.

Savings: Derived from Account class, it should contain double interest rate.

Checkings: Derived from Account class, it should contain double overdraftlimit.

CreditCard: Derived from Checkings class, it should contain int cardnumber.

Create a program which will create an array of 3 Savings accounts, 3 Checkings accounts and 3 CreditCards. *3 arrays of size 3*

Create 3 files. Savings.txt, Checkings.txt, CreditCards.txt which contains the information for each and infile the information from the file to the array of the classes.

You will be graded on the method used to infile (make sure to use loops), the way the classes are constructed (inheritance), and the way the the classes are used (make sure the constructor and overloaded constructor is used correctly).

As for the Main, simply get all the data from the files in to the objects correctly and do a display of all 3 savings, checkings and creditcards in a neat fashion (iomanip).

zip the whole project and upload it (make sure the files are already populated with data).

**be aware, derived classes also have base class variables. Example: CreditCards have the following variables (name, accountnumber, balance, overdraftlimit, cardnumber)

Answer 1

Cpp Code:

#include<iostream> //includes
#include<iomanip>
#include<string>
#include<fstream>

using namespace std;
//base class
class Account {
public:
//variables
   string name;
   int accountnumber;
   double balance;

   Account() { //default constructor
       name = "";
       accountnumber = 0;
       balance = 0;
   }
   Account(string accname, int accnumber, double accbalance) { //parameterized constructor
       name = accname;
       accountnumber = accnumber;
       balance = accbalance;
   }
};
//subclass
class Savings : public Account {
public:
   double intrate;

   Savings() {
       Account();
       intrate = 0;
   }
   Savings(string accname, int accnumber, double accbalance, double rate) : Account(accname, accnumber, accbalance) { //calling para constructor of super class
       intrate = rate;
   }
};
//derived class
class Checkings : public Account {
public:
   double overdraftlimit;

   Checkings() {
       Account();
       overdraftlimit = 0;
   }
   Checkings(string accname, int accnumber, double accbalance, double tlimit) : Account(accname, accnumber, accbalance) { //calling para constructor of super class

       overdraftlimit = tlimit;
   }
};
//derived class
class CreditCard : public Checkings {
public:
   double cardnumber;

   CreditCard() {
       Checkings();
       cardnumber = 0;
   }
   CreditCard(string accname, int accnumber, double accbalance, double tlimit, int number) : Checkings(accname, accnumber, accbalance, tlimit) { //calling para constructor of super class
       cardnumber = number;
   }
};

int main() {
//arrays of size 3
   Savings savAcc[3];
   Checkings checkAcc[3];
   CreditCard ccAcc[3];

   //to store temporary values
   string name;
   int accountnumber;
   double balance;
   double intrate;
   double overdraftlimit;
   int cardnumber;

//opening and reading files in to arrays
   int index = 0;
   ifstream infile("Savings.txt");
   while (infile >> name && infile >> accountnumber && infile >> balance && infile >> intrate) {
       savAcc[index] = Savings(name, accountnumber, balance, intrate);
       index++;
   }
   infile.close();

   index = 0;
   ifstream infile2("Checkings.txt");
   while (infile2 >> name && infile2 >> accountnumber && infile2 >> balance && infile2 >> overdraftlimit) {
       checkAcc[index] = Checkings(name, accountnumber, balance, overdraftlimit);
       index++;
   }
   infile2.close();

index = 0;
   ifstream infile3("CreditCards.txt");
   while (infile3 >> name && infile3 >> accountnumber && infile3 >> balance && infile3 >> overdraftlimit && infile3 >> cardnumber) {
       ccAcc[index] = CreditCard(name, accountnumber, balance, overdraftlimit, cardnumber);
       index++;
   }
   infile3.close();

//displaying data using loops and iomanip(setw and setfill)
   cout << "Savings Account Details\n";
   cout << "Account Number" << "\t" << setw (13) << "Name" << "\t" << setw (13) <<"Balance" << "\t" << setw (13) <<"Rate" << "\n";
   for (int i = 0; i < 3; i++) {
        cout << setfill ('x') << setw (13) << savAcc[i].accountnumber << "\t" << setfill (' ') << setw (13) << savAcc[i].name << "\t" << setw (13) << savAcc[i].balance << "\t" << setw (13) << savAcc[i].intrate << "\n";
   }
   cout << endl;

   cout << "Checking Account Details\n";
   cout << "Account Number" << "\t" << setw (13) << "Name" << "\t" << setw (13) <<"Balance" << "\t" << setw (13) <<"Limit" << "\n";
   for (int i = 0; i < 3; i++) {
       cout << setfill ('x') << setw (13) << checkAcc[i].accountnumber << "\t" << setfill (' ') << setw (13) << checkAcc[i].name << "\t" << setw (13) << checkAcc[i].balance << "\t" << setw (13) << checkAcc[i].overdraftlimit << "\n";
   }
   cout << endl;

   cout << "Credit Card Account Details\n";
   cout << "Account Number" << "\t" << setw (13) << "Name" << "\t" << setw (13) <<"Balance" << "\t" << setw (13) <<"Limit" << "\t" << setw (13) <<"Card Number" << "\n";
   for (int i = 0; i < 3; i++) {
       cout << setfill ('x') << setw (13) << ccAcc[i].accountnumber << "\t" << setfill (' ') << setw (13) << ccAcc[i].name << "\t" << setw (13) << ccAcc[i].balance << "\t" << setw (13) << ccAcc[i].overdraftlimit << "\t" << setw (13) << ccAcc[i].cardnumber << "\n";
   }
   cout << endl;

   return 0;
}

Checkings.txt
Acc5 1005 11000 1000
Acc6 1006 12500 2000
Acc7 1007 15000 3000

Savings.txt
Acc1 1001 10000 3.5
Acc2 1002 12000 4.2
Acc3 1003 13000 3.7

CreditCards.txt
Acc9 1009 13400 1500 8623
Acc10 10010 11500 3000 2363
Acc11 10011 14000 2000 2873

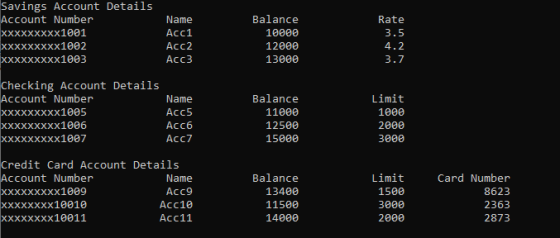

Sample Output:
