Two PFRs are used for the zero-order reaction: A → 2B . first one with inlet...

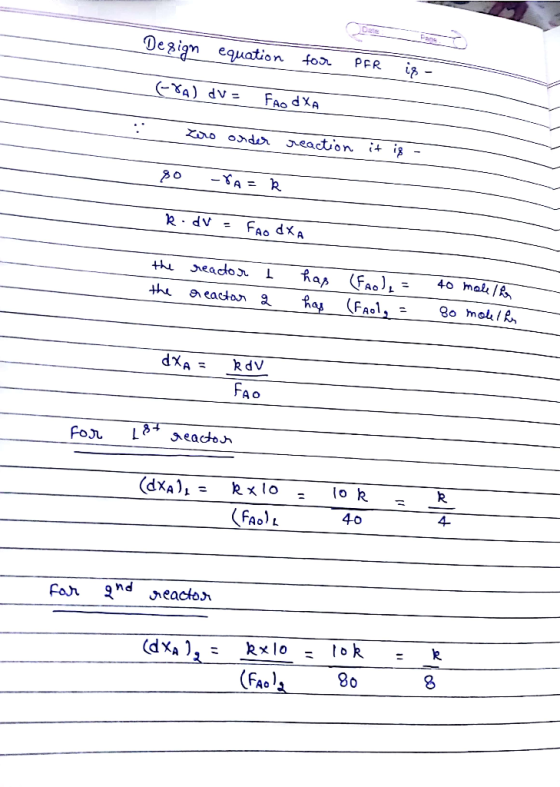

Two PFRs are used for the zero-order reaction: A → 2B . first one with inlet flow rate of 40 mol/h and the second one is 80 mol/h

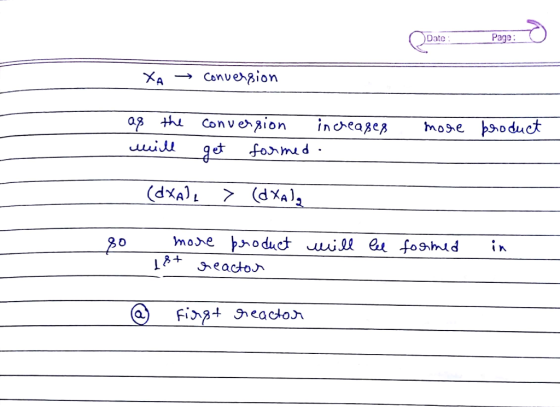

Pure A is fed to each reactor at the molar flow rates indicated. Each reactor has a volume of 10 L. Which reactor will form more of product B (i.e. higher molar flow rate of B)? [ Hint: neither reactor reaches 100% conversion]
a) first reactor b) second reactor c) not enough information to say d) same for both
