The figure shows a lower leg being exercised. It has a 49-N weight attached to the...
Homework Answers
calculate the perpendicular distance from the weight to the equilibrim line .
Add Answer to:
The figure shows a lower leg being exercised. It has a 49-N
weight attached to the...
The drawing shows a lower leg being exercised. It has a 52-N weight attached to the...
The drawing shows a lower leg being exercised. It has a 52-N weight attached to the foot and is extended at an angle θ with respect to the vertical. Consider a rotational axis at the knee. (a) When θ = 90.0°, find the magnitude of the torque that the weight creates. N · m (b) At what angle θ does the magnitude of the torque equal 12 N · m? °
The ngure shows a lower leg being exercised. It has 47-N weight attached to the root...

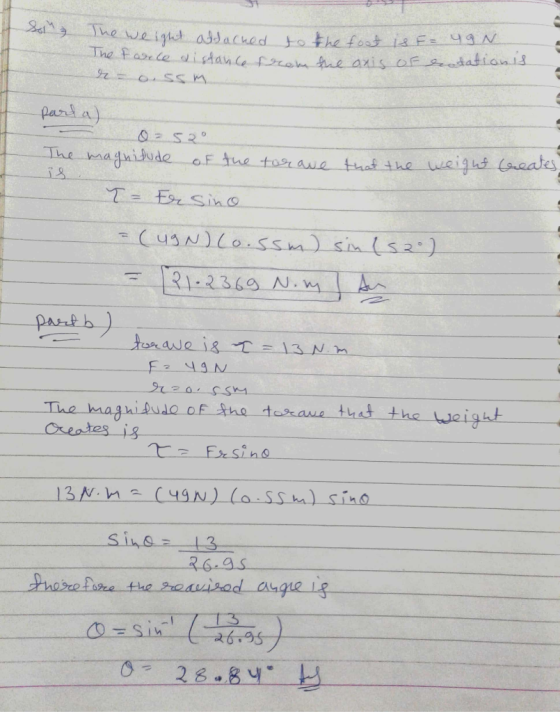

The ngure shows a lower leg being exercised. It has 47-N weight attached to the root and is extended at an angled with respect to the vertical. Consider a rotational axis at the knee, as indicated. (a) When 4 = 46°, find the magnitude of the torque that the weight creates. (b) At what angle does the magnitude of the torque have a value of 14 N.m? Axis 0.55 m 49 N (a) Number i Units (b) Number i Units
13 Figure 12-31 shows the anatomical structures in the lower leg and foot that are involved...
13 Figure 12-31 shows the anatomical structures in the lower leg and foot that are involved in standing on tip- toe, with the heel raisecd slightly off the loor so that the foot effectively contacts the floor only at point P. Assume distance a- 50 cm, distance b 15 cm, and the Calf muscle Lower leg hones person's weight W 900 N. Of the forces acting on the foot, what are the (a) magni tude and (b) direction (up or...
KIN 3112 Homework #3 Perform a dynamic analysis for a knee extension movement. The knee extensors...
KIN 3112 Homework #3 Perform a dynamic analysis for a knee extension movement. The knee extensors insert on the tibia at an angle 0-30° and at a distance d-5.2 cm from the axis of rotation of the knee. The combined weight of lower leg and foot is F 48 N and its center of mass is r 0.27 m away from the knee joint axis. The joint angle with respect to the left horizontal is A-70 (Note: this is not...
PROBLEM 2 Knee Extension - The angular motion of the lower leg about the knee joint,...
PROBLEM 2 Knee Extension - The angular motion of the lower leg about the knee joint, and the forces and torques produced by the muscles crossing the knee joint during knee flexions and extensions have been investigated by a number of researchers utilizing different experimental techniques. One of these techniques is discussed here. Consider the person illustrated in Fig. 10.12. The test subject is sitting on a table, with the back placed against a back rest and the lower legs...
An ACL patient is doing leg extensions to strengthen his quadriceps muscles. With no additional weight...
An ACL patient is doing leg extensions to strengthen his quadriceps muscles. With no additional weight added, the patient's lower leg (shank+foot) has a mass of 6.25 kg. The center of mass of the lower leg segment is located 32 cm from the axis of rotation of the knee joint. The leg is flexed 25 degree down from horizontal. The quadriceps muscle acts through the patellar tendon, which inserts 5 cm from the axis of rotation of the knee joint...
The figure shows the anatomical structures in the lower leg and foot that are involved in...
The figure shows the anatomical structures in the lower leg and foot that are involved in standing on tiptoe, with the heel raised slightly off the floor so that the foot effectively contacts the floor at only at point P. Assume distance a = 5.6 cm, distance b = 16 cm, and the person's weight W = 610 N. Take the upward direction to be positive. Of the forces acting on the foot, what are (a) the force at point...
The figure shows a jet engine suspended beneath the wing of an airplane. The weight W...
The figure shows a jet engine suspended beneath the wing of an airplane. The weight W of the engine is 13600 N and acts as shown in the figure. In flight the engine produces a thrust 7 of 61000 N that is parallel to the ground. The rotational axis in the figure is perpendicular to the plane of the paper. With respect to this axis, find the magnitude of the torque due to (a) the weight and (b) the thrust....
Chapter 12, Problem 013 The figure shows the anatomical structures in the lower leg and foot...
Chapter 12, Problem 013 The figure shows the anatomical structures in the lower leg and foot that are involved in standing on tiptoe, with the heel raised slightly off the floor so that the foot effectively contacts the floor at only at point P. Assume distance a 4.2 cm, distance b- 17 cm, and the person's weight W 830 N. Take the upward direction to be positive. Of the forces acting on the foot, what are (a) the force at...
Consider the traction apparatus shown in the figure, which applies a force to the lower-leg of...
Consider the traction apparatus shown in the figure, which
applies a force to the lower-leg of a patient. Determine the
magnitude and direction of this force applied by the traction
apparatus if the leg is stationary. The angle is given by θ = 25
degrees and the mass hanging from the chord in the traction
apparatus is m = 13 kg. Draw clearly labelled free body diagrams
where necessary.
QUESTION 2 [6] D С Consider the traction apparatus shown in...
The ngure shows a lower leg being exercised. It has 47-N weight attached to the root and is extended at an angled with respect to the vertical. Consider a rotational axis at the knee, as indicated. (a) When 4 = 46°, find the magnitude of the torque that the weight creates. (b) At what angle does the magnitude of the torque have a value of 14 N.m? Axis 0.55 m 49 N (a) Number i Units (b) Number i Units
13 Figure 12-31 shows the anatomical structures in the lower leg and foot that are involved in standing on tip- toe, with the heel raisecd slightly off the loor so that the foot effectively contacts the floor only at point P. Assume distance a- 50 cm, distance b 15 cm, and the Calf muscle Lower leg hones person's weight W 900 N. Of the forces acting on the foot, what are the (a) magni tude and (b) direction (up or...
KIN 3112 Homework #3 Perform a dynamic analysis for a knee extension movement. The knee extensors insert on the tibia at an angle 0-30° and at a distance d-5.2 cm from the axis of rotation of the knee. The combined weight of lower leg and foot is F 48 N and its center of mass is r 0.27 m away from the knee joint axis. The joint angle with respect to the left horizontal is A-70 (Note: this is not...
PROBLEM 2 Knee Extension - The angular motion of the lower leg about the knee joint, and the forces and torques produced by the muscles crossing the knee joint during knee flexions and extensions have been investigated by a number of researchers utilizing different experimental techniques. One of these techniques is discussed here. Consider the person illustrated in Fig. 10.12. The test subject is sitting on a table, with the back placed against a back rest and the lower legs...
An ACL patient is doing leg extensions to strengthen his quadriceps muscles. With no additional weight added, the patient's lower leg (shank+foot) has a mass of 6.25 kg. The center of mass of the lower leg segment is located 32 cm from the axis of rotation of the knee joint. The leg is flexed 25 degree down from horizontal. The quadriceps muscle acts through the patellar tendon, which inserts 5 cm from the axis of rotation of the knee joint...
The figure shows a jet engine suspended beneath the wing of an airplane. The weight W of the engine is 13600 N and acts as shown in the figure. In flight the engine produces a thrust 7 of 61000 N that is parallel to the ground. The rotational axis in the figure is perpendicular to the plane of the paper. With respect to this axis, find the magnitude of the torque due to (a) the weight and (b) the thrust....
Chapter 12, Problem 013 The figure shows the anatomical structures in the lower leg and foot that are involved in standing on tiptoe, with the heel raised slightly off the floor so that the foot effectively contacts the floor at only at point P. Assume distance a 4.2 cm, distance b- 17 cm, and the person's weight W 830 N. Take the upward direction to be positive. Of the forces acting on the foot, what are (a) the force at...
Consider the traction apparatus shown in the figure, which
applies a force to the lower-leg of a patient. Determine the
magnitude and direction of this force applied by the traction
apparatus if the leg is stationary. The angle is given by θ = 25
degrees and the mass hanging from the chord in the traction
apparatus is m = 13 kg. Draw clearly labelled free body diagrams
where necessary.
QUESTION 2 [6] D С Consider the traction apparatus shown in...
