8.4.3. A body of 8 kg*m2 moment of inertia starting from rest is rotated for 5...

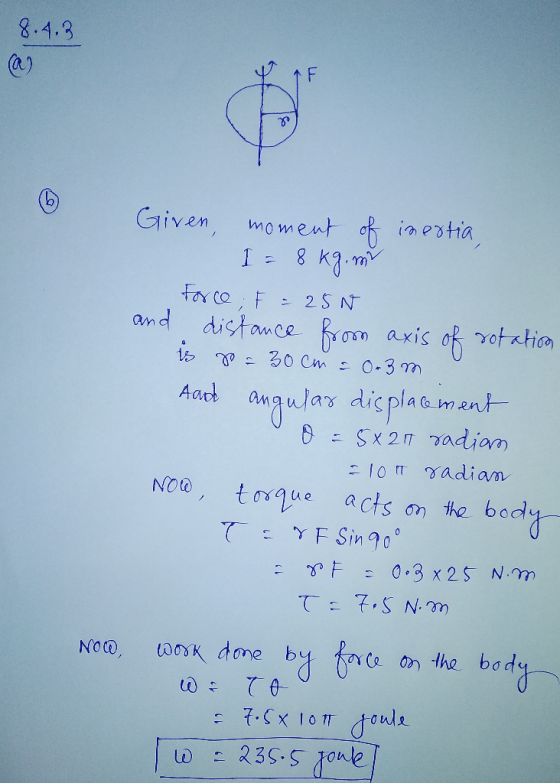

8.4.3. A body of 8 kg*m2 moment of inertia starting from rest is rotated for 5 revolutions by a 25 N force that acts at a distance of 30 cm from the axis of rotation and remains perpendicular to the distance from the axis.
A. Setup with a labeled diagram.
b. Calculate the work W done by the force on the body.
c. Write down the energy equation and obtain the final angular speed.
Answers:
8.4.3. b. Work W = 235.5 J. c. Final angular speed: ω = 5.4 rad/s.
