A three phase 480V source supplies two parallel loads through a 5000' underground cable. Each conductor...

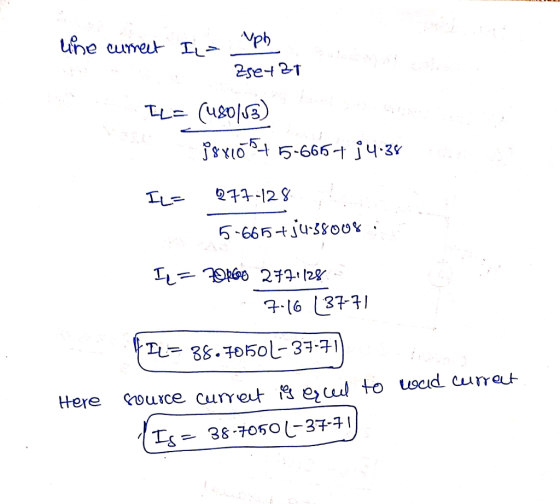

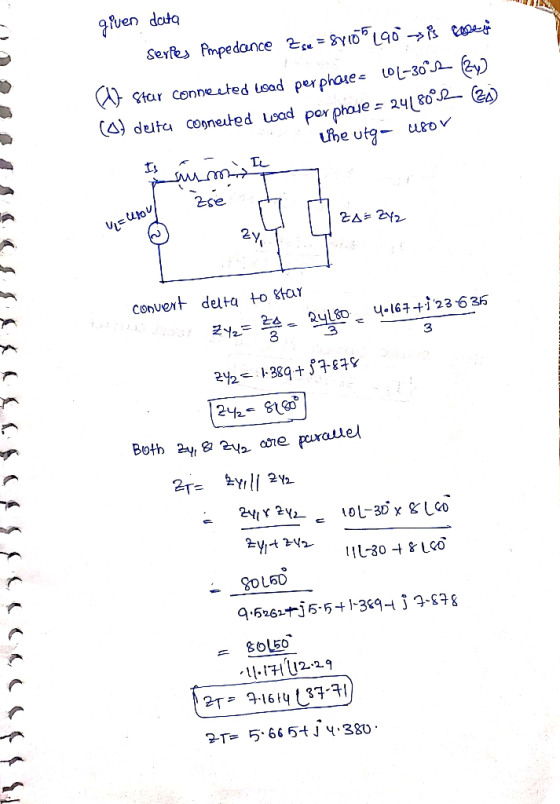

A three phase 480V source supplies two parallel loads through a 5000' underground cable. Each conductor of the cable has a distributed series impedance of 8×10-5∠90°Ω/foot. One load is Y-connected with per phase impedance 10∠-30°Ω, and the other load is ∆-connected with per phase impedance 24∠80°Ω. Compute the source line currents using source voltage VCA as a reference phasor
Homework Answers
Add Answer to:
A three phase 480V source supplies two parallel loads through a
5000' underground cable. Each conductor...
A single phase 240V source supplies power to a remotely located power distribution panel through a...
A single phase 240V source supplies power to a remotely located power distribution panel through a 4700ft underground cable. Each conductor of the cable can be modeled by an impedance of 0.0001∠15°Ω per foot. Two loads are connected at the power distribution panel. The first load has an equivalent impedance of 10∠-45°Ω, and the second load has an equivalent impedance of 4∠85°Ω. Compute the real and reactive power consumed by the first load
(4b) Two parallel three-phase loads are connected to a three-phase A connected source through a line....
(4b) Two parallel three-phase loads are connected to a three-phase A connected source through a line. The line voltage VAB at the two loads is 200 230° V. One load is configured in Y and absorbs three-phase real power 40KW with a 0.9 leading power factor, and the other load s configured in A with ZA = 12+j150 per phase. Please calculate (a) The line currents (11pts) (b) The power factor at the combined load (3pts) (c) The phase currents...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
Problem 1 A balanced three-phase source supplies two loads, as shown in Fig. 1. The voltage...
Problem 1 A balanced three-phase source supplies two loads, as shown in Fig. 1. The voltage rating of the 3-phase source is 6600230° V. Load 1 impedance is 2 =45.9+j572 per phase, Load 2 impedance is Zz=12+j252 per phase. The loads are connected to the source by a 3-phase line with the impedance of ZLine=2.7+j52 per phase. Zine Load 1 a Load 2 a la Z Z Z2 VL Zino Z2 b с 22 с Zine b Fig. 1 Balanced...
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21...
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21 ?, is connected in delta, and the other load has per phase impedance 15 2 and is connected in wye. Ignore the line impedance. If the line voltage is a 208230° Vrms, determine (a) the phase voltage for phase-a, ) the line current Ia*, (c) the phase currents in the delta load (d) the complex power of the load and the power factor.
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an...
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu given below: Load: R 500 and X j50 Ω. The voltage across the load is 20 kV. wire impedance : 2.5 +j20 Ω. Answer the following questions: (a) Represent the circuit in phasor domain. (b) Calculate the phasor current through the wire. (c) Calculate the voltage across the source. (d) Calculate the phasor current through the load resistance. (e) Calculate the complex power supplied...
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find t
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find the line currents and the phase currents in each load. (Hint: use per phase analysis, then do angle shift for each phase.)
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel...
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel connected loads: • Load 1 absorbs a total of 125 kW and 100 KVAR • Load 2 is a delta-connected impedance load with (125+j 40)ohms/phase • Load 3 absorbs 120 kVA at 0.8 power factor (lagging) Given that the line-neutral voltage at the load end of the line is 2400 V, determine the magnitude of the line-to- line voltage at the source end of...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that the line impedance is (1 + j1) Ω per phase while the load impedance is (6 + j4) Ω per phase, find the magnitude of the line voltage at the load. Assume the source phase voltage Vab= 208 ∠0° V rms. The magnitude of the line voltage at the load is _______ Vrms.
(4b) Two parallel three-phase loads are connected to a three-phase A connected source through a line. The line voltage VAB at the two loads is 200 230° V. One load is configured in Y and absorbs three-phase real power 40KW with a 0.9 leading power factor, and the other load s configured in A with ZA = 12+j150 per phase. Please calculate (a) The line currents (11pts) (b) The power factor at the combined load (3pts) (c) The phase currents...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
Problem 1 A balanced three-phase source supplies two loads, as shown in Fig. 1. The voltage rating of the 3-phase source is 6600230° V. Load 1 impedance is 2 =45.9+j572 per phase, Load 2 impedance is Zz=12+j252 per phase. The loads are connected to the source by a 3-phase line with the impedance of ZLine=2.7+j52 per phase. Zine Load 1 a Load 2 a la Z Z Z2 VL Zino Z2 b с 22 с Zine b Fig. 1 Balanced...
2. Two balanced three-phase loads are connected in parallel. One load with per phase impedance 21 ?, is connected in delta, and the other load has per phase impedance 15 2 and is connected in wye. Ignore the line impedance. If the line voltage is a 208230° Vrms, determine (a) the phase voltage for phase-a, ) the line current Ia*, (c) the phase currents in the delta load (d) the complex power of the load and the power factor.
508 CHAPTER 11 . POLYPHASE CIRCUITS 11.40 In a balanced three-phase system, the source has an aboc phase-sequence and is connected in delta. There are two rallel wye-connected loads. The phase impedance of load i and load 2 is 4 The line impedance connecting the source to the loads is 0.3 + j0.2 2. If the curre IAN! = 10/20-Arms, find the delta currents in the source 4 Ω and 10 +/4 Ω, respectively. nt in the a phase of...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu given below: Load: R 500 and X j50 Ω. The voltage across the load is 20 kV. wire impedance : 2.5 +j20 Ω. Answer the following questions: (a) Represent the circuit in phasor domain. (b) Calculate the phasor current through the wire. (c) Calculate the voltage across the source. (d) Calculate the phasor current through the load resistance. (e) Calculate the complex power supplied...
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel connected loads: • Load 1 absorbs a total of 125 kW and 100 KVAR • Load 2 is a delta-connected impedance load with (125+j 40)ohms/phase • Load 3 absorbs 120 kVA at 0.8 power factor (lagging) Given that the line-neutral voltage at the load end of the line is 2400 V, determine the magnitude of the line-to- line voltage at the source end of...
