QUESTION- An air-filled cylindrical inductor has 7600 turns, and it is 2.7cm in diameter and 27.6cm...
QUESTION- An air-filled cylindrical inductor has 7600 turns, and it is 2.7cm in diameter and 27.6cm long.
(b) How many turns (N) would you need to generate the same inductance if the core were iron filled instead? Assume the magnetic permeability of iron is 1200 times that of free space.

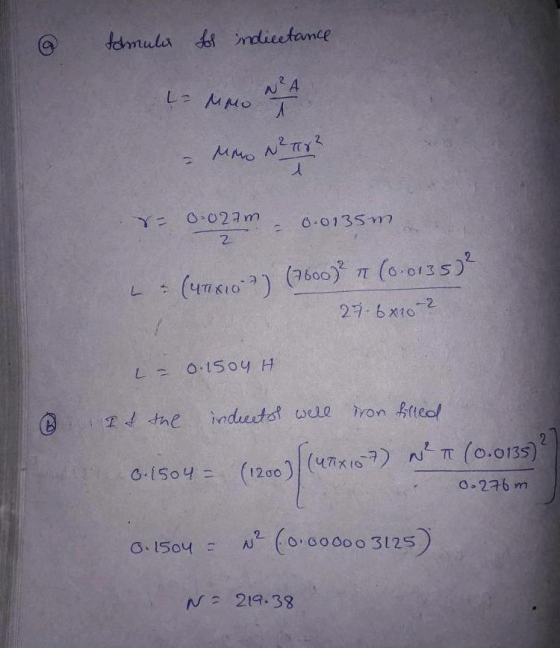

(a) MY INDUCTANCE (L)= 0.1449 H
help! pls use my (L) NOT SURE IF IM GETTING THE RIGHT ANSWER
Homework Answers
Add Answer to:
QUESTION- An air-filled cylindrical inductor has 7600 turns, and
it is 2.7cm in diameter and 27.6cm...
An air-filled cylindrical inductor with a inductance of 28 mH has 3300 turns. It is 2.8...
An air-filled cylindrical inductor with a inductance of 28 mH has 3300 turns. It is 2.8 cm in diameter. (a) What is its length? ____ cm (b) Assume a second cylindrical inductor with the same length and turns as the first, and a core filled with a material instead of air, but its diameter is 2.8 cm. If the second inductor has the same inductance as the first, what is the magnetic permeability of the material filling the second inductor...
A cylindrical conductor has 3600 turns and a 4.2 cm diameter. If the cylinder is 34.5...
A cylindrical conductor has 3600 turns and a 4.2 cm diameter. If the cylinder is 34.5 cm long, a. determine the inductance b. The number of turns needed to generate the same inductance, but with an iron core, so that the permeability increase ( μ →1400 μo). Please show how you got the answer, thanks!
A solenoidal inductor consists of ten turns of wire in air coiled with a diameter of...
A solenoidal inductor consists of ten turns of wire in air coiled with a diameter of 5 mm and length 1 cm. The solenoid is oriented with the long axis of the coil in the z direction. (a) The inductor is driven with 1 mA of current. Find the magnetic field intensity vector field inside the solenoid. Be sure to give both the direction and magnitude of the vector field. (b) Find the magnetic flux density vector field inside the...
010 (part 1 of 2) 10.0 points A solenoid has 132 turns of wire uniformly wrapped...
010 (part 1 of 2) 10.0 points A solenoid has 132 turns of wire uniformly wrapped around an air-filled core, which has a diameter of 5 mm and a length of 5.4 cm. The permeability of free space is 1.25664 x 10-6 N/A2. Calculate the self-inductance of the solenoid. Answer in units of H. 011 (part 2 of 2) 10.0 points The core is replaced with a soft iron rod that has the same dimensions, but a magnetic per- meability...
An inductor in the form of an air core solenoid contains 568 turns, is of length...
An inductor in the form of an air core solenoid contains 568 turns, is of length 9.7 cm, and has a cross sectional area of 1.2 cm^2. The permeability of free space is 1.25664*10^-6 N/A^2. What is the magnitude of the uniform rate of change in current through the inductor that induces an emf of 275 muV? Answer in units of A/s.
Having quite a bit of trouble understand which formula's to use for these questions. Can you...
Having quite a bit of trouble understand which formula's to use for these questions. Can you please help me? Here is the questions ______________________________________________________________________________ Q.2. Calculate how many turns of wire must be wrapped around a hollow, non-magnetic (air) core 2 cm in diameter and 10 cm in length in order to create an inductance of 22mH. You may use the permeability of free space (μ0) for the μ value of the air core. ____________________________________________________________________________ Q.3. Next, calculate the required...
An inductor is an electrical device that can store energy in the form of a magnetic...
An inductor is an electrical device that can store energy in the form of a magnetic field. Click the icon to view the information about inductors and inductance. Click the icon to view the relationship between Cross-sectional area and Inductance. (a) What are the units of the slope (9.66)? A More Info A More Info The units of the slope are - In the simplest form, an inductor is a cylindrical coil of wire, and its inductance (L), measured in...
Part A An air-filled toroidal solenoid has 390 turns of wire, a mean radius of 12.5...
Part A An air-filled toroidal solenoid has 390 turns of wire, a mean radius of 12.5 cm, and a cross-sectional area of 4.30 cm If the current is 5.30 A, calculate the magnetic field in the solenoid. R O a ? IVO ACP B= 2.10-8 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Calculate the self-inductance of the solenoid. 150 AC mo ? L Submit Request Answer Part C Calculate the energy stored in...
Please solve for A,B,C,D and E Part A An air-filled toroidal solenoid has 295 turns of...
Please solve for A,B,C,D and
E
Part A An air-filled toroidal solenoid has 295 turns of wire, a mean radius of 14.0 cm, and a cross-sectional area of 4.50 cm. If the current is 5.50 A, calculate the magnetic field in the solenoid. Express your answer in teslas. IVO AQ R o B ? B = Submit Previous Answers Request Answer * Incorrect; Try Again; 5 attempts remaining Part B Calculate the self-inductance of the solenoid. Express your answer in...
An air-filled toroidal solenoid has 330 turns of wire, a mean radius of 13.5 cm, and...
An air-filled toroidal solenoid has 330 turns of wire, a mean radius of 13.5 cm, and a cross-sectional area of 4.20 cm . U = 1.22x10-3 J Submit Previous Answers ✓ Correct Part D Calculate the energy density in the magnetic field. ? VO APO u= 1.167 • 10 Submit Previous Answers Request Answer X Incorrect; Try Again Part E Find the answer for part D by dividing your answer to part C by the volume of the solenoid. YO...
010 (part 1 of 2) 10.0 points A solenoid has 132 turns of wire uniformly wrapped around an air-filled core, which has a diameter of 5 mm and a length of 5.4 cm. The permeability of free space is 1.25664 x 10-6 N/A2. Calculate the self-inductance of the solenoid. Answer in units of H. 011 (part 2 of 2) 10.0 points The core is replaced with a soft iron rod that has the same dimensions, but a magnetic per- meability...
An inductor is an electrical device that can store energy in the form of a magnetic field. Click the icon to view the information about inductors and inductance. Click the icon to view the relationship between Cross-sectional area and Inductance. (a) What are the units of the slope (9.66)? A More Info A More Info The units of the slope are - In the simplest form, an inductor is a cylindrical coil of wire, and its inductance (L), measured in...
Part A An air-filled toroidal solenoid has 390 turns of wire, a mean radius of 12.5 cm, and a cross-sectional area of 4.30 cm If the current is 5.30 A, calculate the magnetic field in the solenoid. R O a ? IVO ACP B= 2.10-8 Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Part B Calculate the self-inductance of the solenoid. 150 AC mo ? L Submit Request Answer Part C Calculate the energy stored in...
Please solve for A,B,C,D and
E
Part A An air-filled toroidal solenoid has 295 turns of wire, a mean radius of 14.0 cm, and a cross-sectional area of 4.50 cm. If the current is 5.50 A, calculate the magnetic field in the solenoid. Express your answer in teslas. IVO AQ R o B ? B = Submit Previous Answers Request Answer * Incorrect; Try Again; 5 attempts remaining Part B Calculate the self-inductance of the solenoid. Express your answer in...
An air-filled toroidal solenoid has 330 turns of wire, a mean radius of 13.5 cm, and a cross-sectional area of 4.20 cm . U = 1.22x10-3 J Submit Previous Answers ✓ Correct Part D Calculate the energy density in the magnetic field. ? VO APO u= 1.167 • 10 Submit Previous Answers Request Answer X Incorrect; Try Again Part E Find the answer for part D by dividing your answer to part C by the volume of the solenoid. YO...
